Contractor Pricing
Raimondi Circular Shaping Tool
$77000 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Raimondi
| SKU: LTMOTOKOMPAS
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
LTMOTOKOMPAS Raimondi Circular Shaping Tool
The thin panel tool makes circles or rounded corners.
Features
- Includes cutting-off pliers for 3-6 mm thickness tiles.
- Make both centered and off-centered cuts.

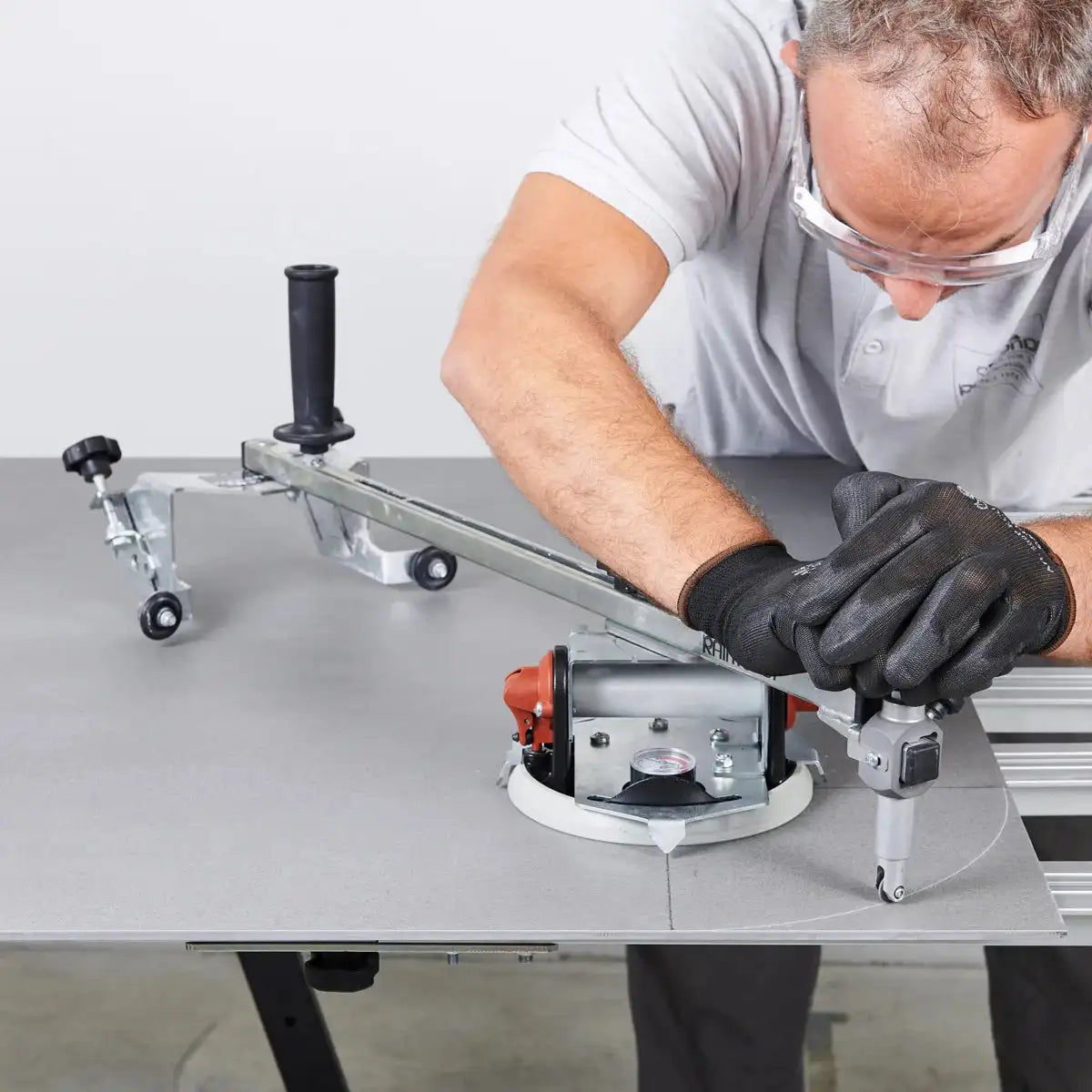

- Several circular and semi-circular cuts of all sizes can be achieved depending on suction cup placement.
- Minimum 12" ("0cm) to maximum 40" ("00cm) diameter.
- Half/bullnose profiles can be performed on slabs and tiles with a thickness from 14/" ("mm) - 1/2" ("2 mm).
- Available radius: 6 mm, 10 mm, 12 mm.
- Diamond scoring wheel Ø 16 mm with pin and bearings
- 45° bevel (jolly) profiles can be performed on slabs and tiles with a thickness from 3 to 12 mm

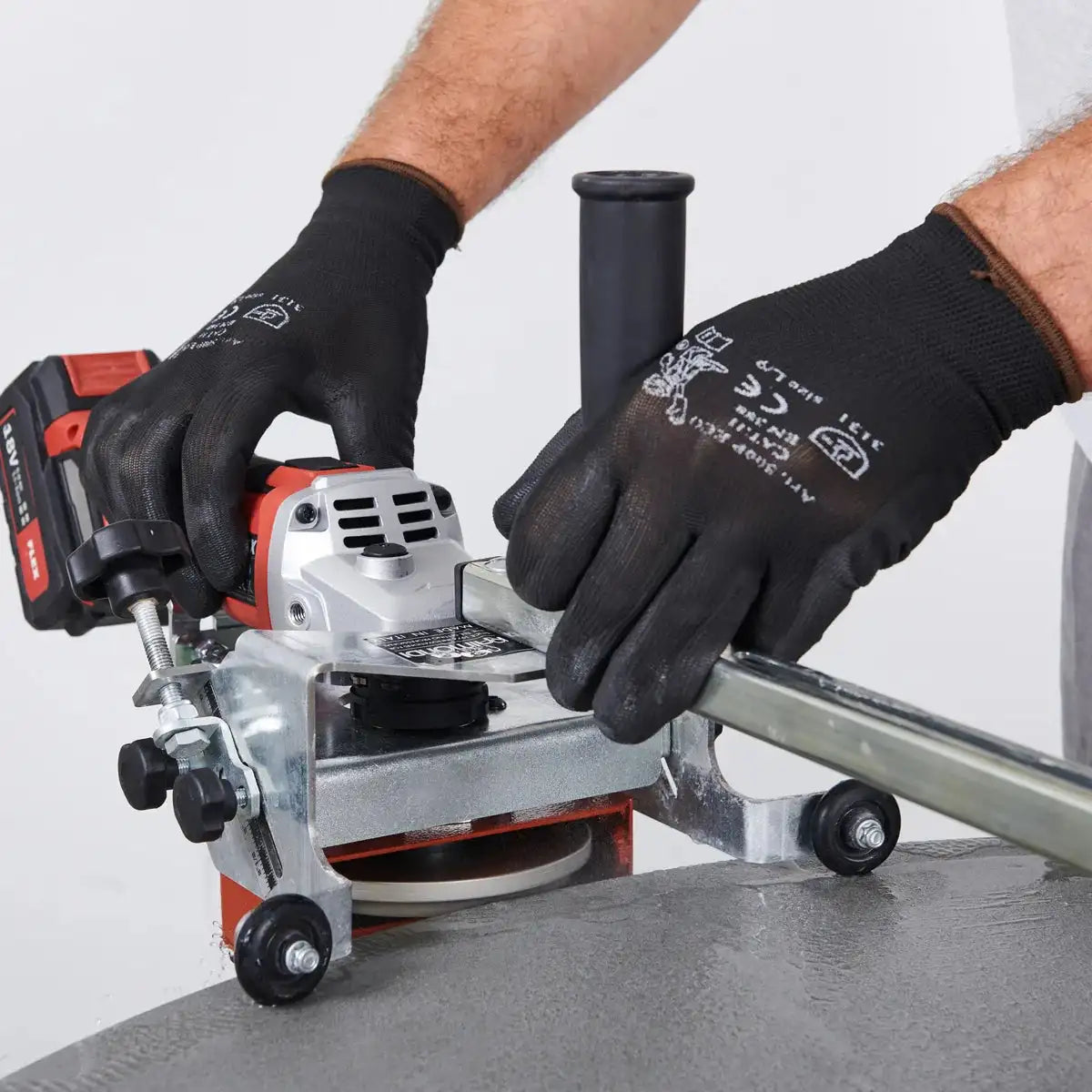

- For finishing/polishing the shaped edges, use an angle grinder freehand (max 1400 rpm) with diamond pads
- To complete the cut of the hole, it is almost always necessary to perform slicing with an angle grinder and remove the cloves afterward
- Can be used dry (with a dust extractor) or with water (with kit for wet cut art.433PWW A).
- Suitable with almost all angle grinders with power between 600-1100W
- Grinder with ⅝" ("1mm) arbor attachment.

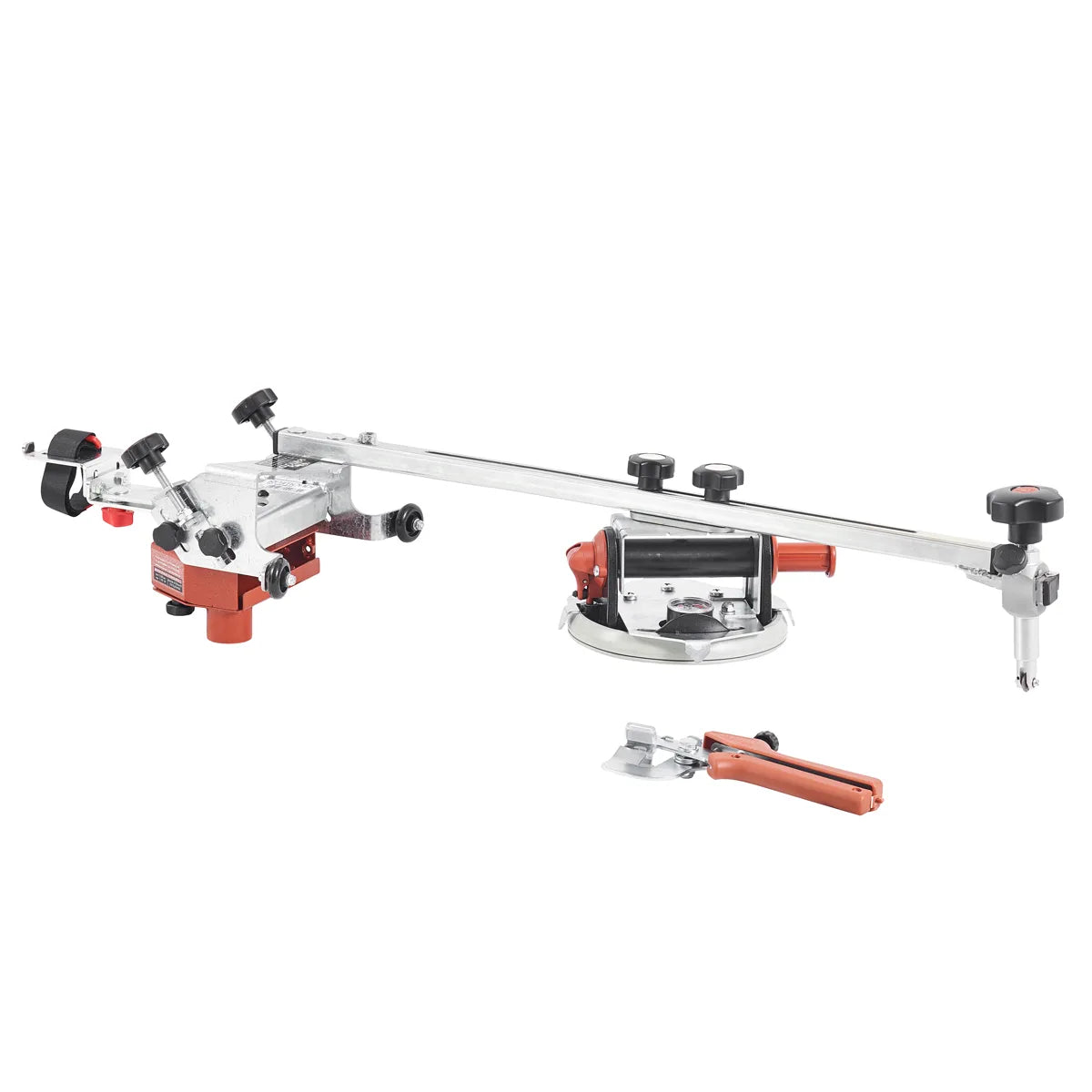

- It is equipped with a "RV" 175" vacuum pump suction cup with a vacuum gauge for use on textured surfaces, a scoring device with a diamond wheel Ø 16mm, a housing unit for an angle grinder for shaping edges, a cutting-off plier for snapping after the scoring cut, and a use and maintenance manual.
- Angle grinder and diamond tools are not included.
