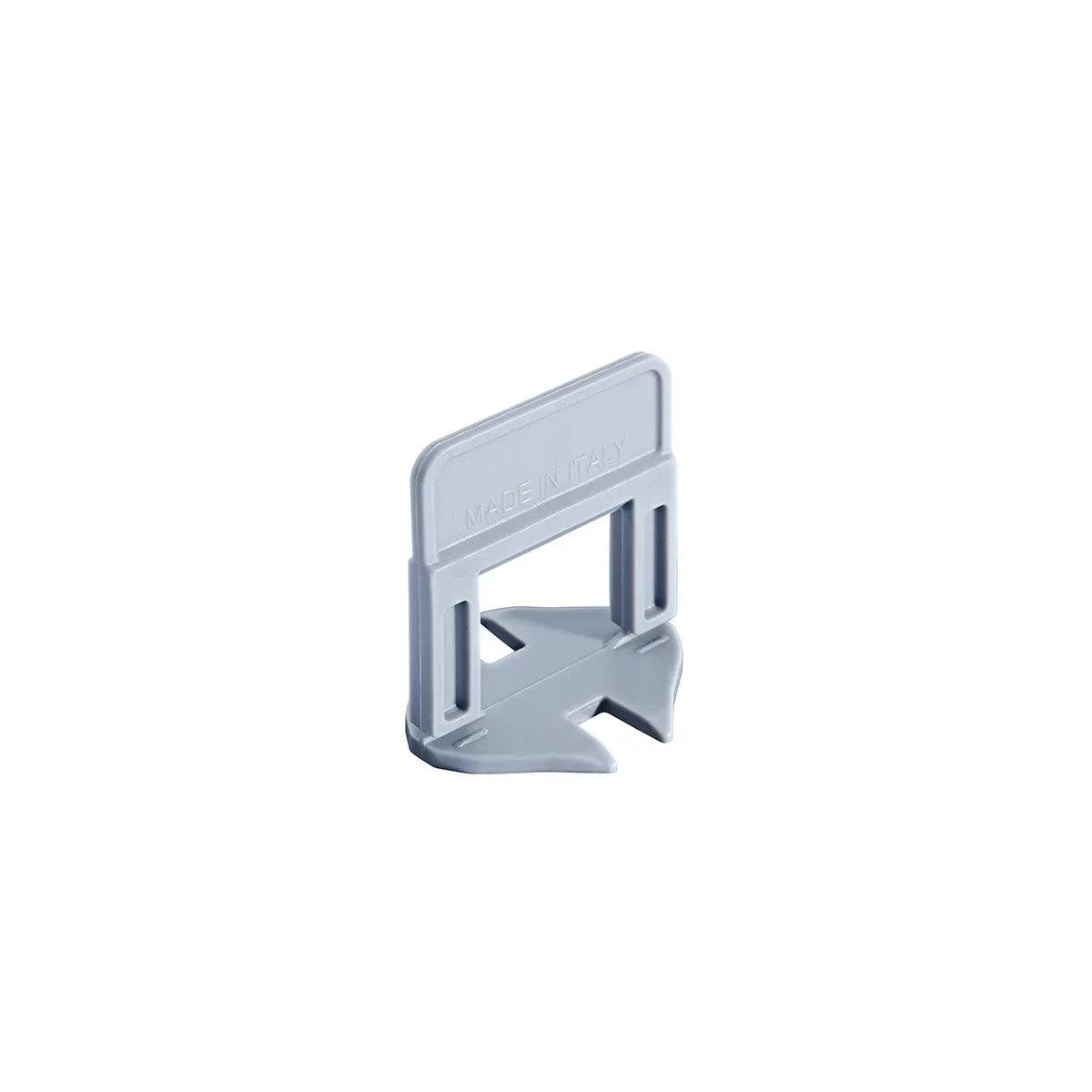

Raimondi Tile Leveling System 3/16" Grey HD Clip

Raimondi Heavy Duty Tile Leveling System 3/16" Grey HD Clips

The new RLS clips have been named HD which stands for Heavy Duty. They are Raimondi's best performing and easiest to-use clips, offering the highest tensile strength within Raimondi's range of clips.

Features

• Available in 250, 500 and 2200 quantities
• Can be used when installing wall and floor tiles
• For use on porcelain, ceramic and natural stone tiles
• HD clips will work with the same wedges, pliers and tile protectors as all other Raimondi's clips.
• The new HD base offers a much easier way to insert the clip underneath the tile.
• Creates a grout joint size of 3/16"
• The new HD base offers a much easier way to insert the clip underneath the tile.
• Use on 1/8" to 1/2" thick tile
• Wedges sold separately

Technical Data

• Use on 1/8" to 1/2" thick tile
• Minimum joint size: 3/16" (4.8mm)
• 250, 500, or 2200 clips per bag

How to use

• STEP 1: After spreading your tile adhesive, insert leveling spacer underneath the tiles along the 4 sides, use traditional spacers as you normally would to square up the corners. For larger tiles, it may be necessary to "double up", using 2 leveling spacers for each side
• STEP 2: Set the tile and beat it with a rubber mallet
• STEP 3: Use the special traction-adjustable pliers to insert the wedge into the leveling spacers, paying attention not to pass the breakpoint
• STEP 4: Once the tile adhesive has been allowed to set. Remove the leveling spacers with the traction-adjustable pliers, rubber mallet, or kicking them out with your feet
