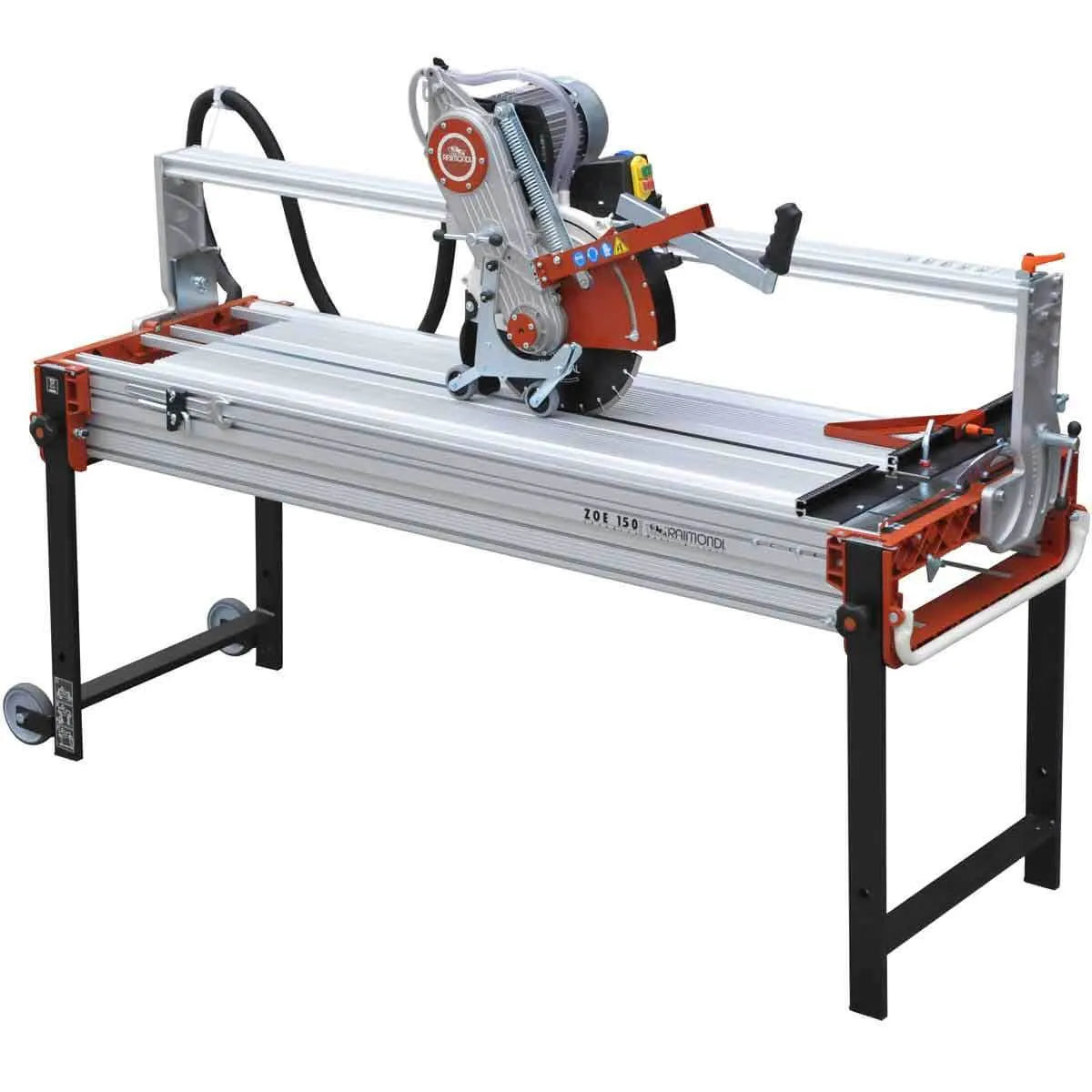

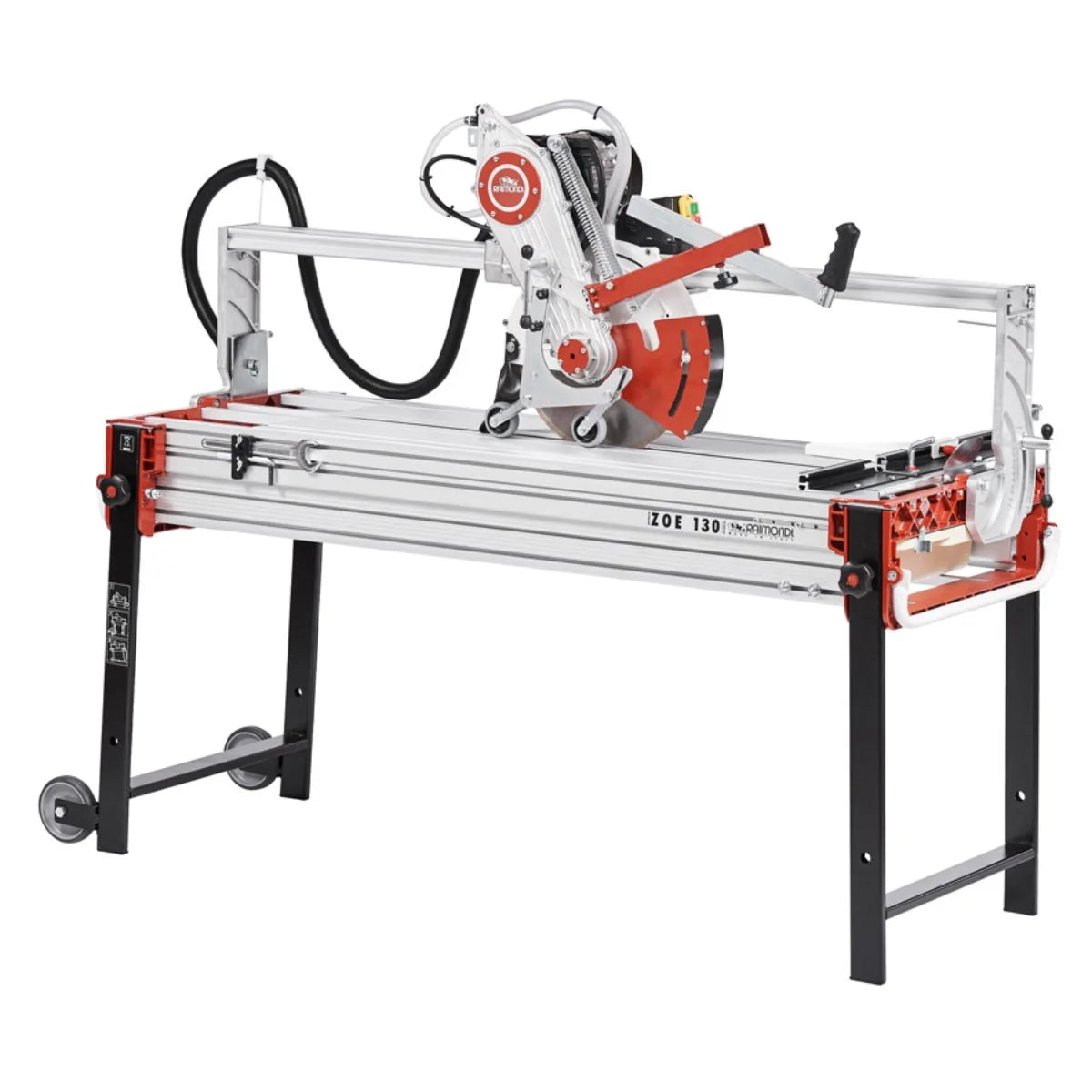

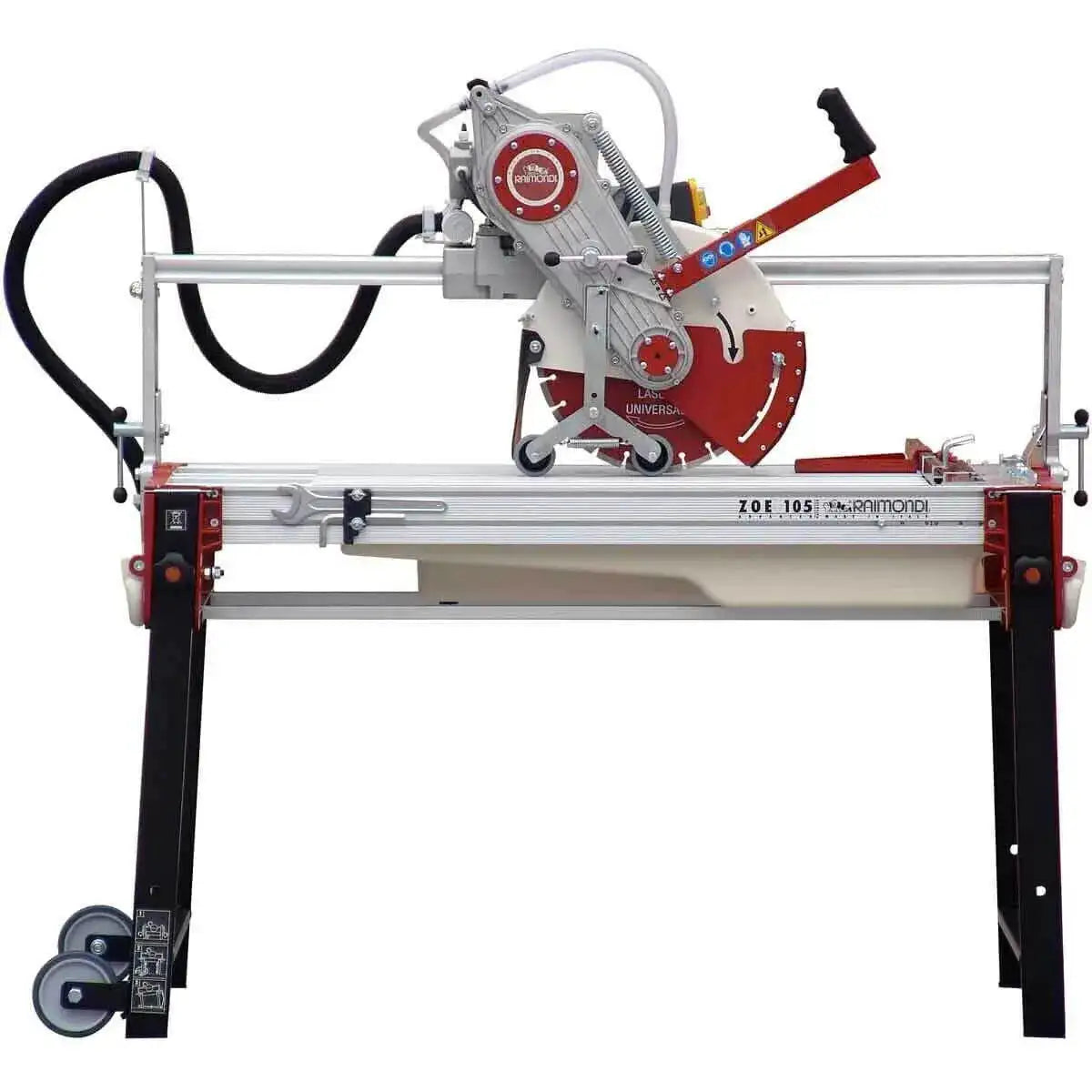

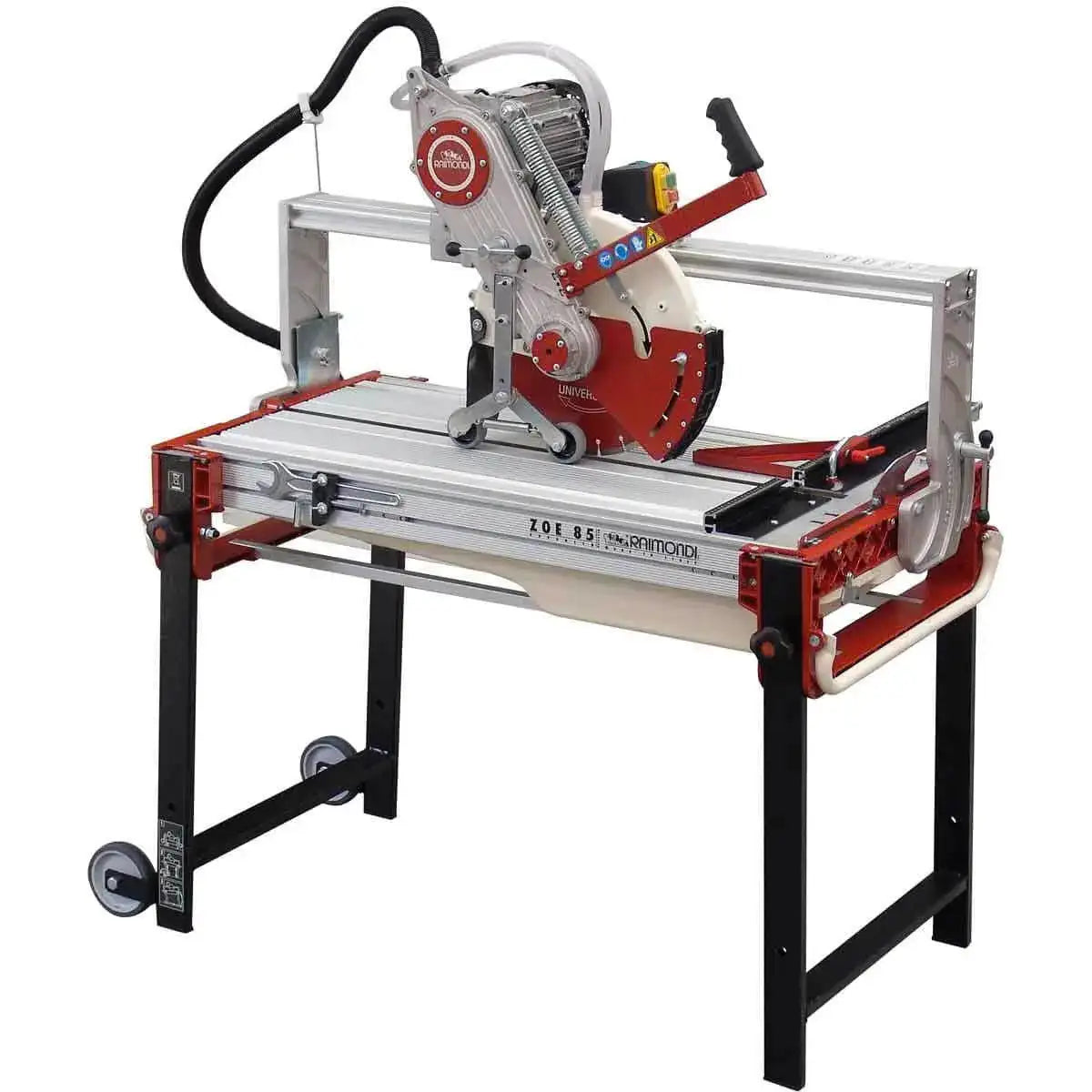

Raimondi Zipper Advanced Rail Saw
The Raimondi Zipper Advanced Wet Saw is a high-quality machine designed for ripping through porcelain tiles, ceramics, granite, marble, brick, and more.
Features
- Cast and extruded aluminum framework

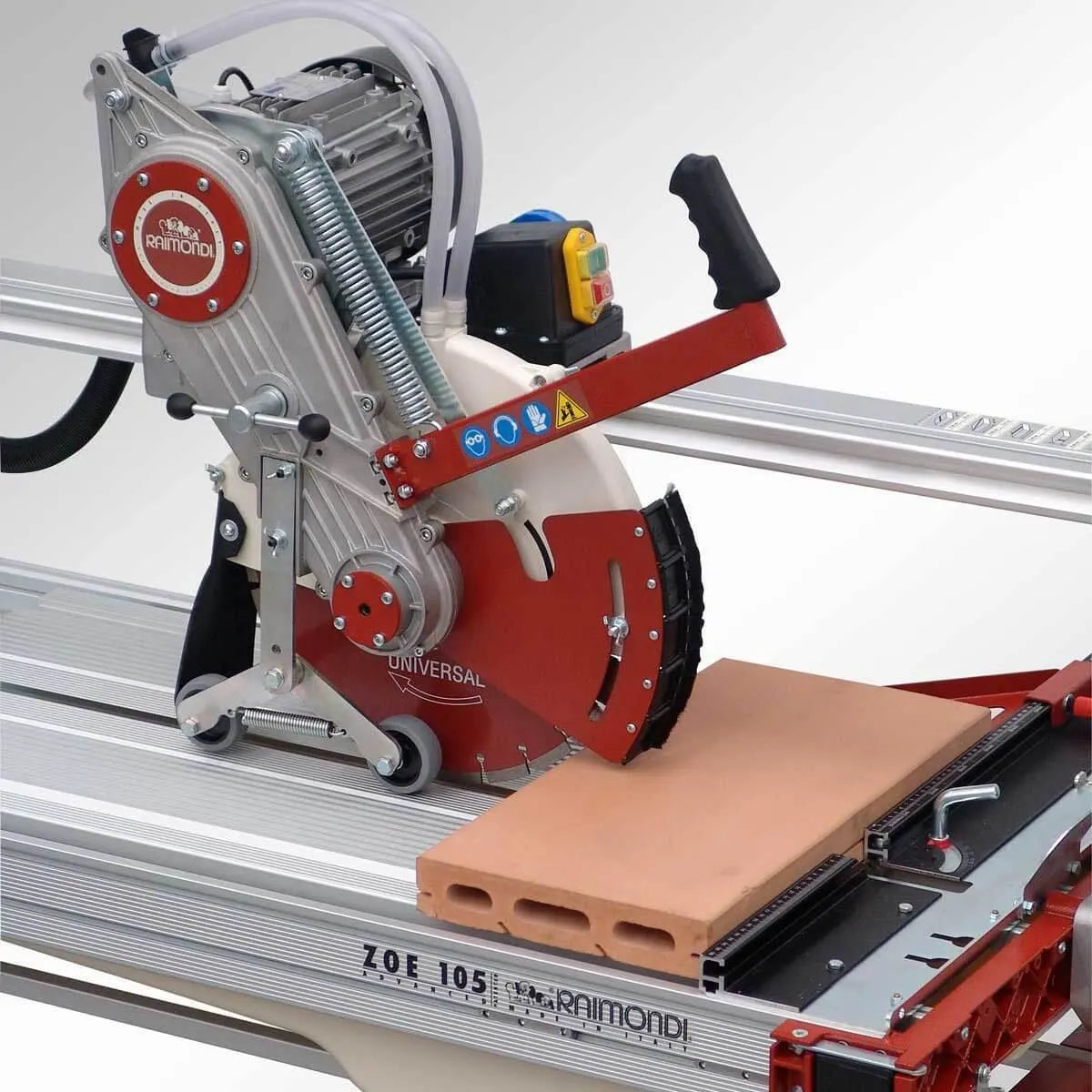

- Rail saw able to plunge cut

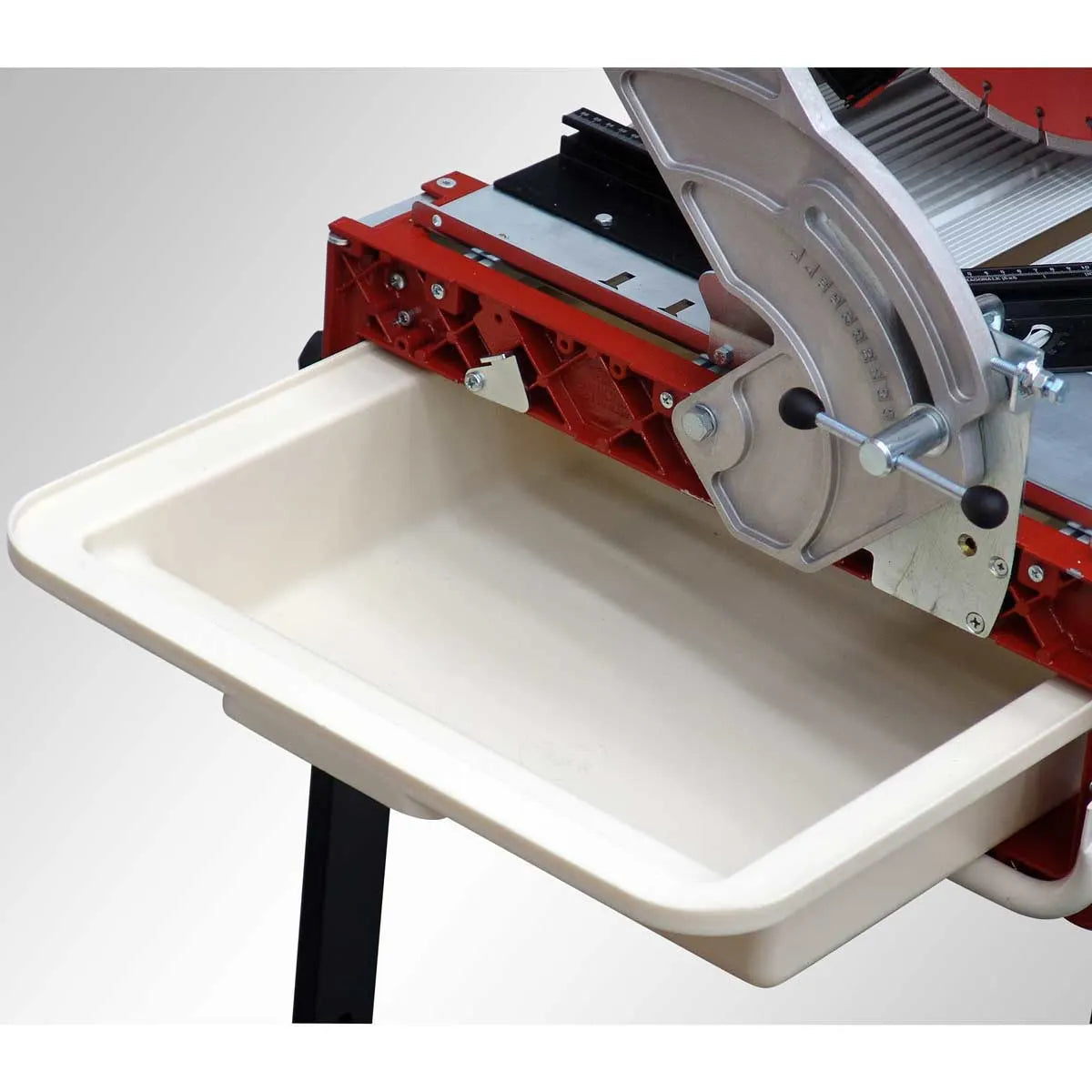

- Polypropylene pan for easy cleaning capacity 38 lt (10 Gal)
- Re-adjustable square for long-lasting precision

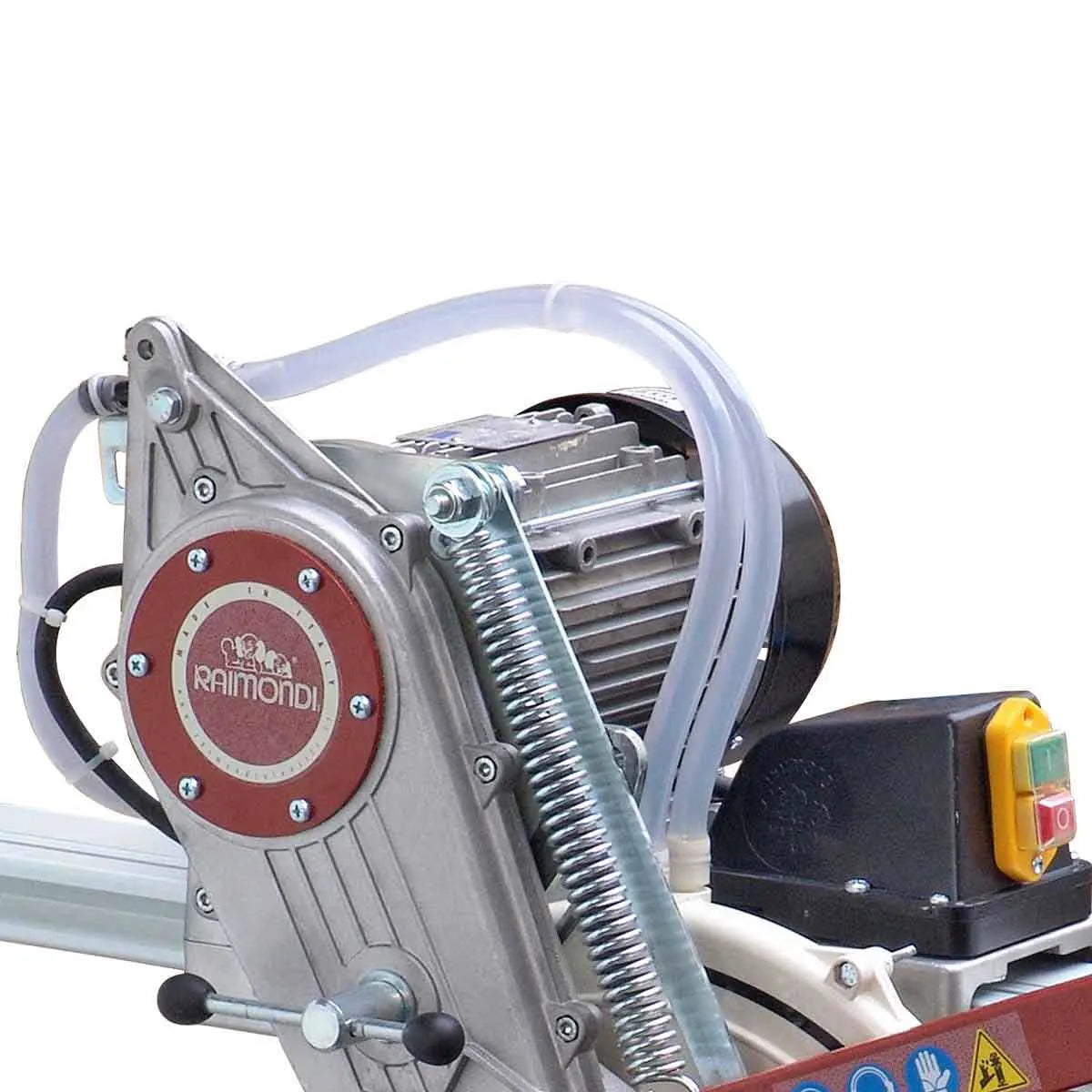

- Sliding motor assembly with cast aluminum housing provided with adjustable bearings

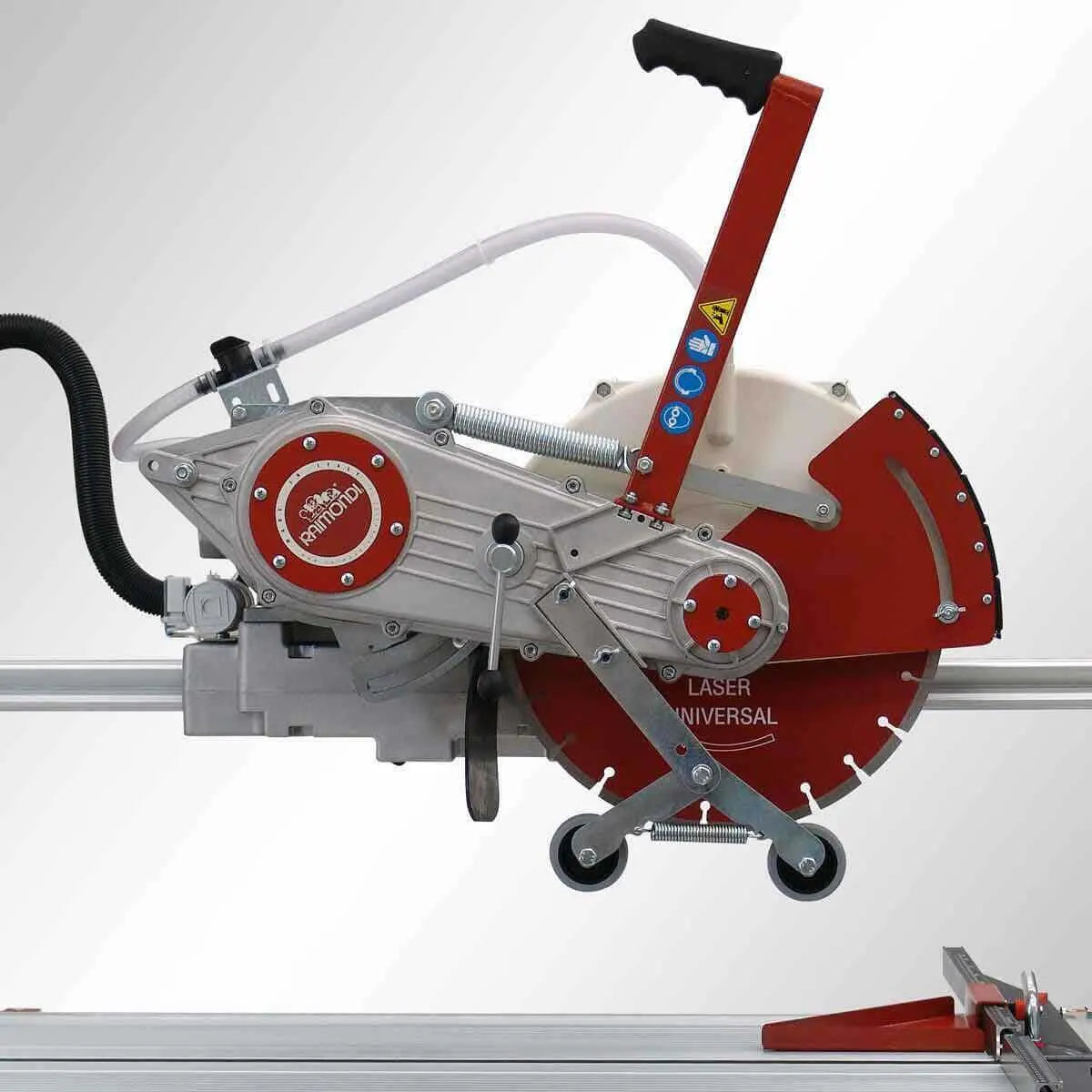

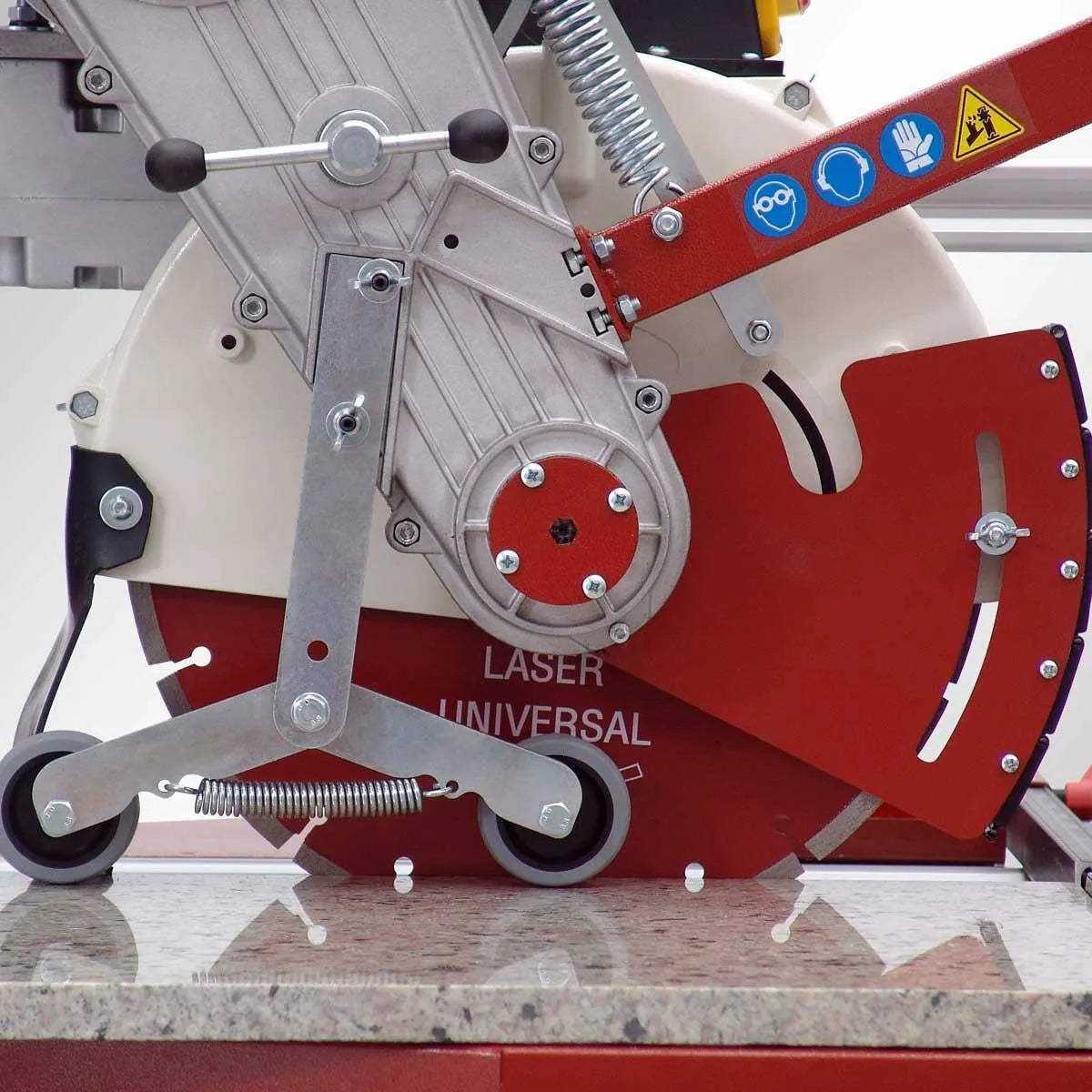

- Floating blade guard system and child-proof on/off switch with key provides extra safety during saw operation

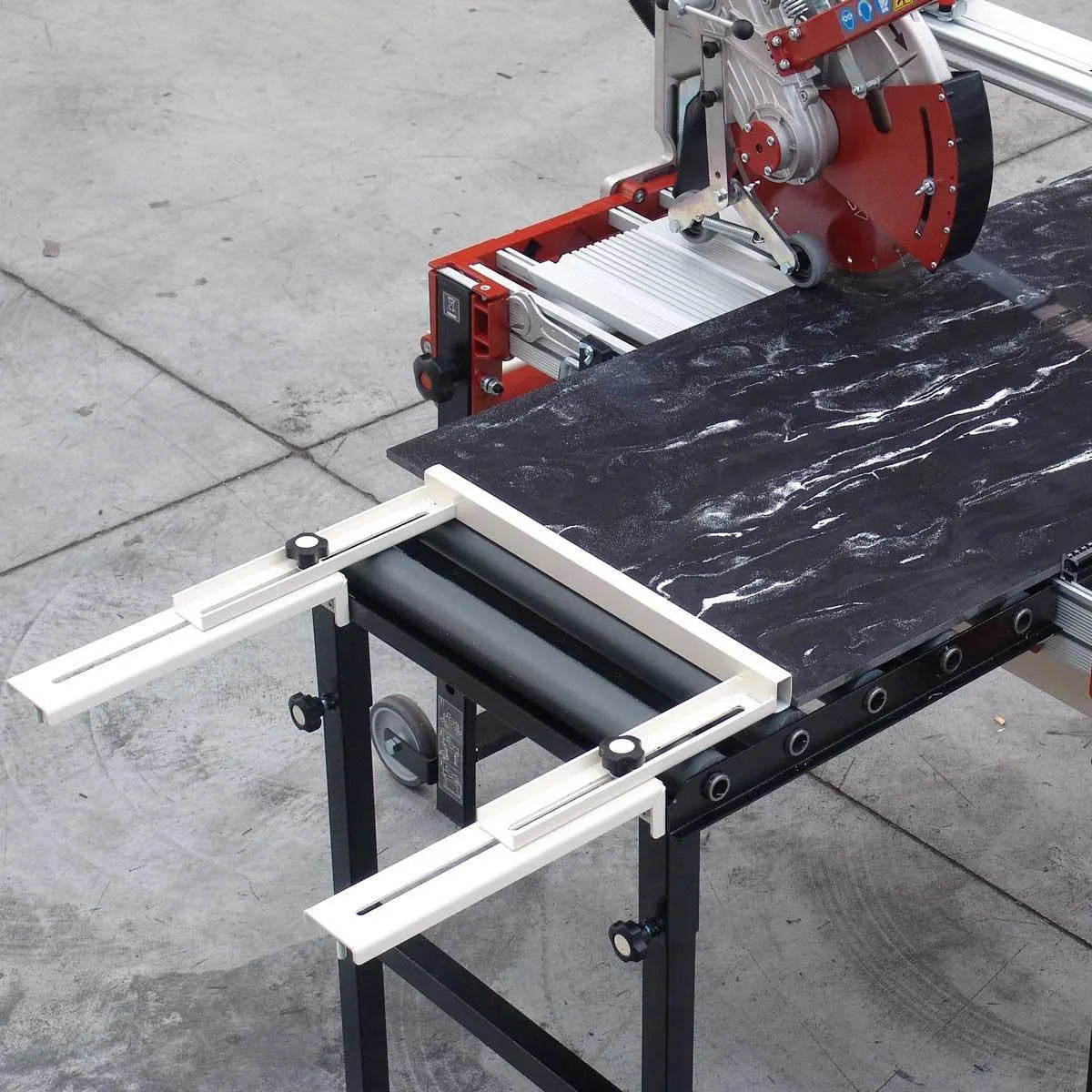

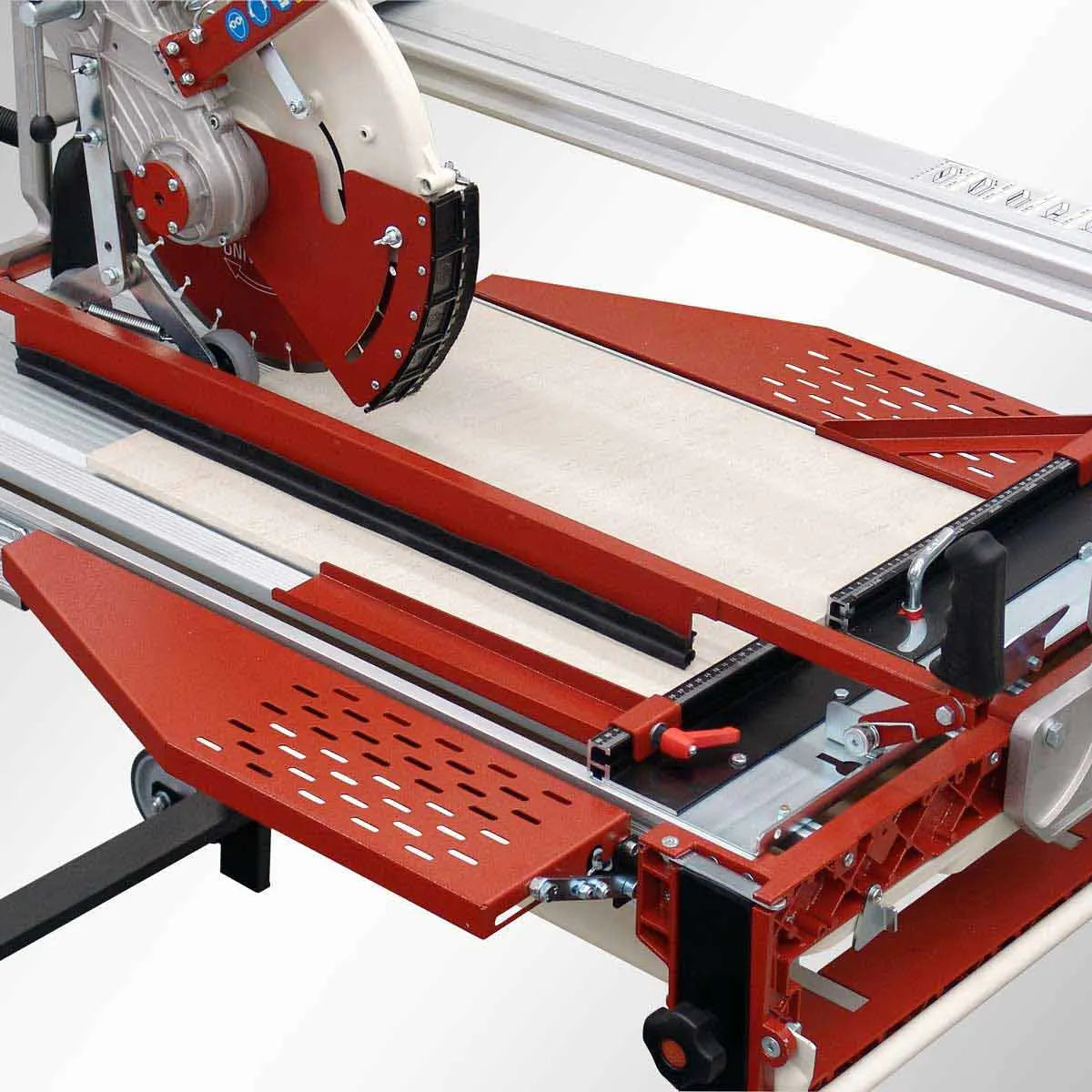

- Material lock-down bar, collapsible table extensions and extension side square are optional and sold separately
- SPECIAL ORDER - Zipper 150 available by special order from Italy. Takes 4-6 weeks. Call to place order
What's Included?
- Raimondi Zipper Advanced Rail Saw
- Folding Telescopic Legs with Wheels
- 14 in. Segmented Diamond Blade
- 45°/90° Sliding square
- High Volume Water Pump
- Wrench Kit
- Operator's manual
| Raimondi Zipper Specifications | ||||
| Model | Zipper 85 | Zipper 105 | Zipper 130 | Zipper 150 |
| Power | 25 Amp | 25 Amp | 25 Amp | 25 Amp |
| Voltage | 110V | 110V | 110V | 110V |
| Motor | Belt Driven - 2.2 hp | Belt Driven - 2.2 hp | Belt Driven - 2.2 hp | Belt Driven - 2.2 hp |
| Arbor Size | 1 inch | 1 inch | 1 inch | 1 inch |
| Blade RPM | 3360 | 3360 | 3360 | 3360 |
| Blade Size | 12 or 14 in | 12 or 14 in | 12 or 14 in | 12 or 14 in |
| Depth of Cut | 4-3/4 in | 4-3/4 in | 4-3/4 in | 4-3/4 in |
| Length of Cut | 34 in | 41 in | 51 in | 61 in |
| Diagonal Cut | 24 in | 29 in | 35 in | 42 in |
| Weight | 176 lbs. | 185 lbs. | 216 lbs. | 233 lbs. |
| Dimensions | 50 in x 27 in x 37 in | 57 in x 27 in x 37 in | 68 in x 27 in x 37 in | 78 in x 27 in x 37 in |
| Shipping | Freight Truck | Freight Truck | Freight Truck | Freight Truck |
