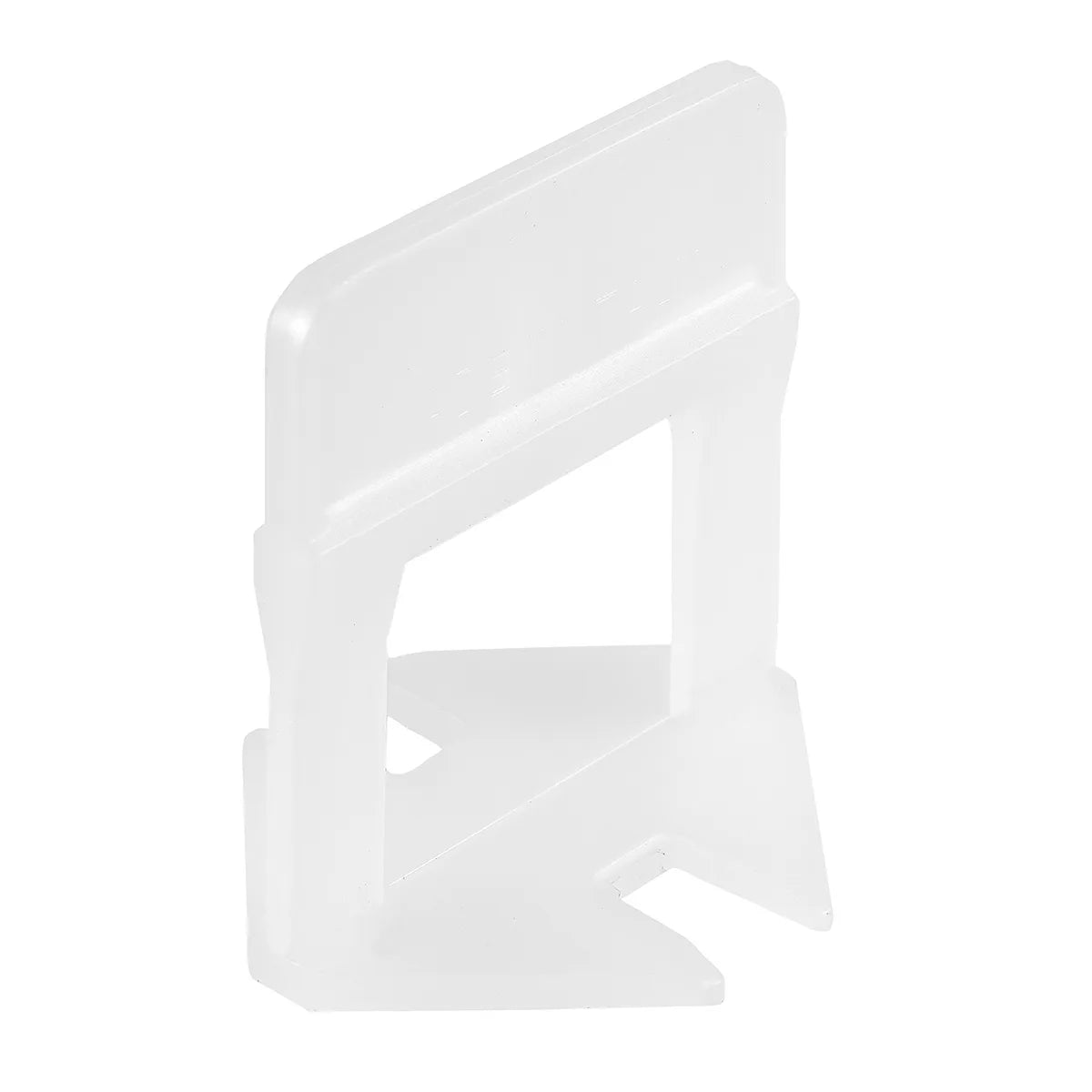

Raimondi Tile Leveling System 1/16" Clear HD Clip

Raimondi Heavy Duty Tile Leveling System 1/16" Clear HD Clips

The new RLS clips have been named HD which stands for Heavy Duty. They are Raimondi's best preforming and easiest to use clips, offering the highest tensile strength within the Raimondi's range of clips.

Features

• Available in 250, 500 and 2200 quantities
• Can be used when installing wall and floor tiles
• For use on porcelain, ceramic and natural stone tiles
• HD clips will work with the same wedges, pliers and tile protectors as all other Raimondi's clips.
• The new HD base offers a much easier way to insert the clip underneath the tile.

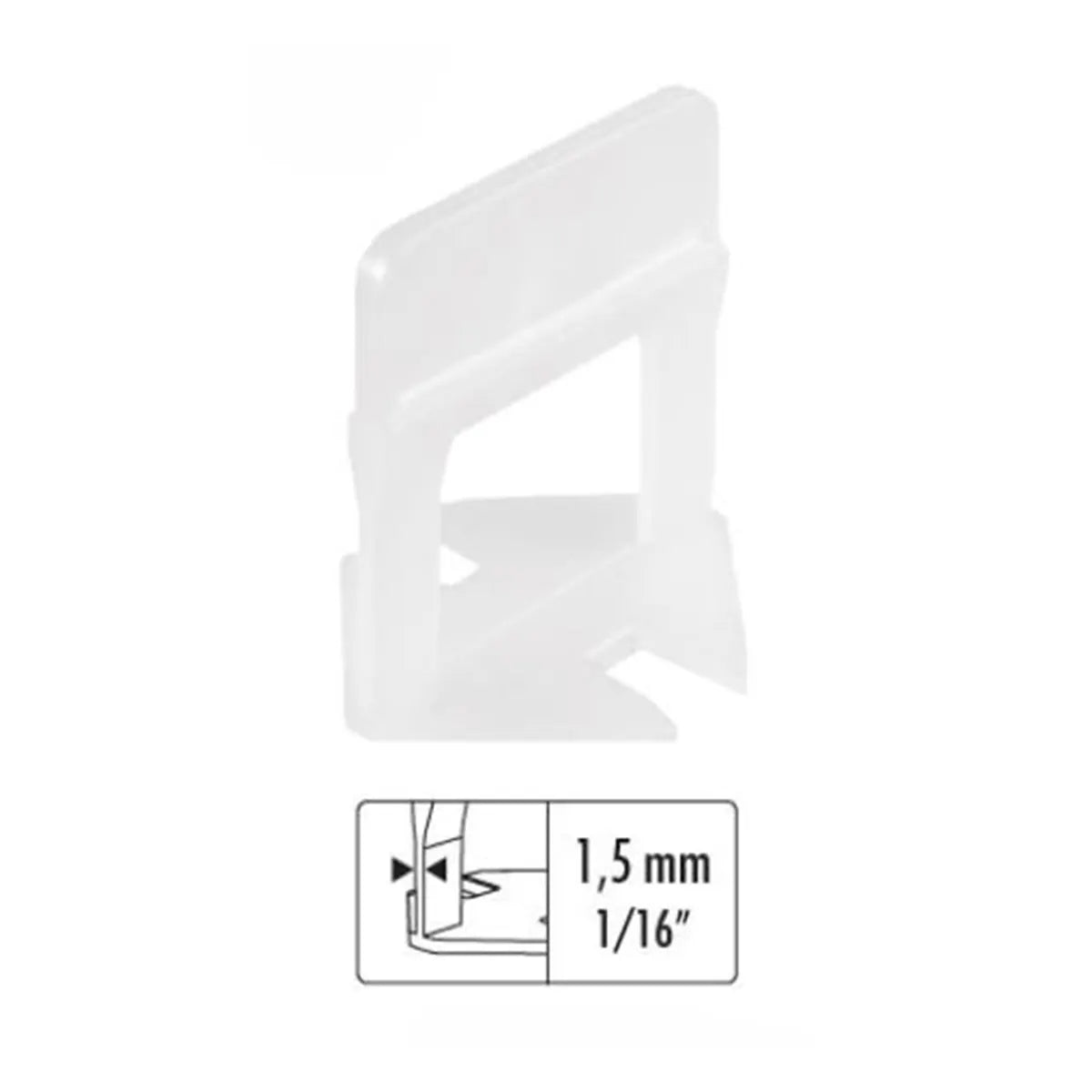

• Creates a grout joint size of 1/16"
• The new HD base offers a much easier way to insert the clip underneath the tile.
• Use on 1/8" to 1/2" thick tile
• Wedges sold separately

Technical Data

• Use on 1/8" to 1/2" thick tile
• Minimum joint size: 1/16" (1.5mm)
• 250, 500, or 2200 clips per bag

How to use

• STEP 1: After spreading your tile adhesive, insert leveling spacer underneath the tiles along the 4 sides, use traditional spacers as you normally would to square up the corners. For larger tiles, it may be necessary to "double up", using 2 leveling spacers for each side
• STEP 2: Set the tile and beat it with a rubber mallet
• STEP 3: Use the special traction-adjustable pliers to insert the wedge into the leveling spacers, paying attention not to pass the breakpoint
• STEP 4: Once the tile adhesive has been allowed to set. Remove the leveling spacers with the traction-adjustable pliers, rubber mallet, or kicking them out with your feet
