Rubi Cyclone Leveling System 1/32" Flat Bases

Rubi Cyclone Leveling System 1/32" (1MM) Flat Bases

Rubi's new leveling system is designed to avoid lippage during the laying of ceramic tile in both floor and wall tiles.

Features

• Available in 100, 300 and 2400 quantities
• Recommended for tiles 12" x 12" and larger
• Especially recommended to improve finishes when working with large-format tiles
• Easy, fast and intuitive to use as no prior user experience is necessary
• No tools required - simply spin the screw cap into place and hand tighten

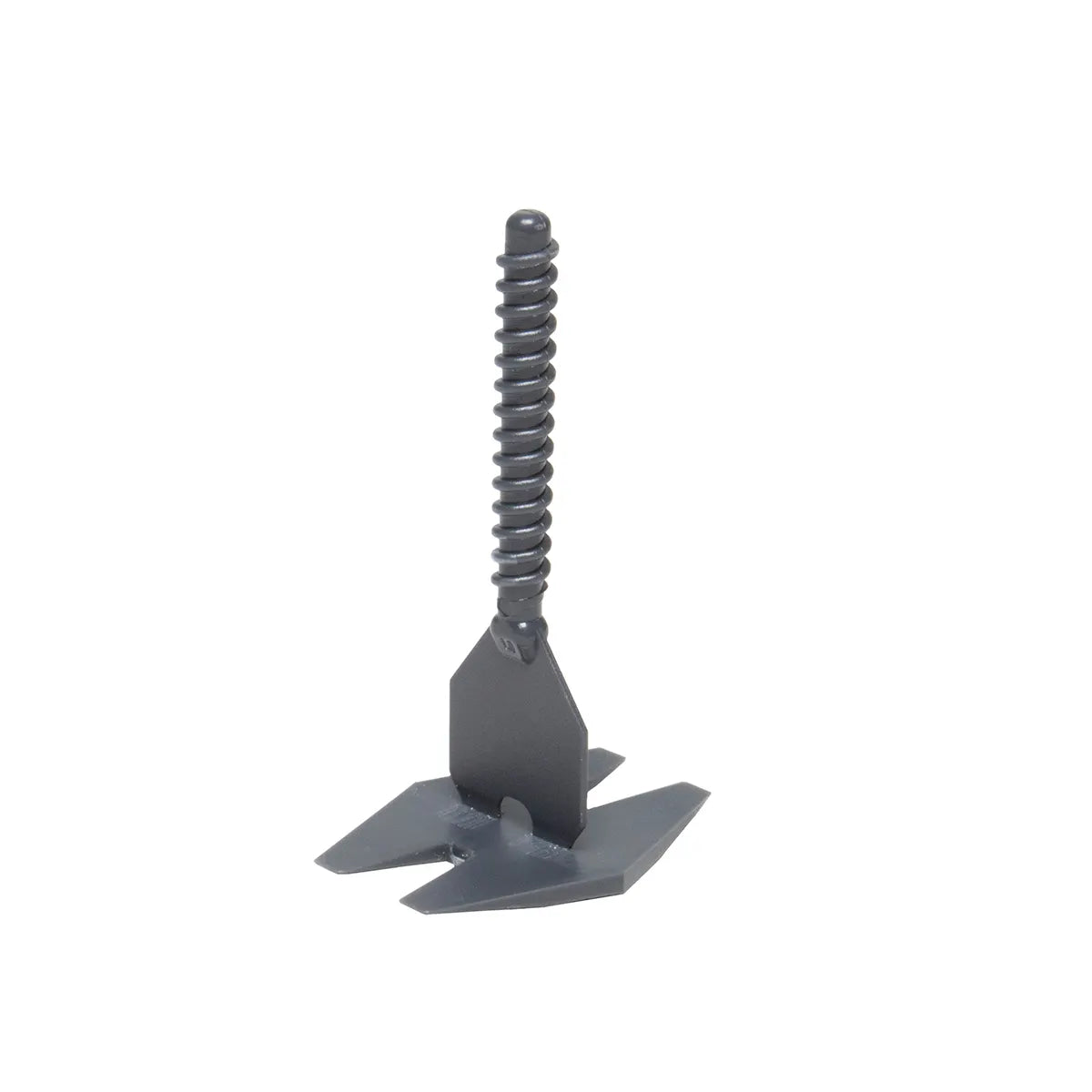

• Spacer bases fit below tiles and then the cap is screwed on
• Guaranteed flatness and regularity of the laying surface
• Side grooves at the strap´s base facilitates the transfer of the adhesive, improving the coverage on the ceramic tile
• Built in spacers
• Each clip thickness is easily identified thanks to the range of different colors available (1/32" is a grey clip)
• Compatible with other threaded leveling system caps
• Recommended for tiles thickness from 3 - 18 mm (1/8" - <3/4")
• Simple impact removal system (by kicking or mallet) - Always in the direction of the grout joint
• Cyclone Caps sold separately

Technical Data

• Use on most tile and stone from 3 - 18 mm (1/8" - <3/4") thick
• Minimum joint size: 1/32" (1mm)
• 100, 300, or 2400 bases per bag

How to use

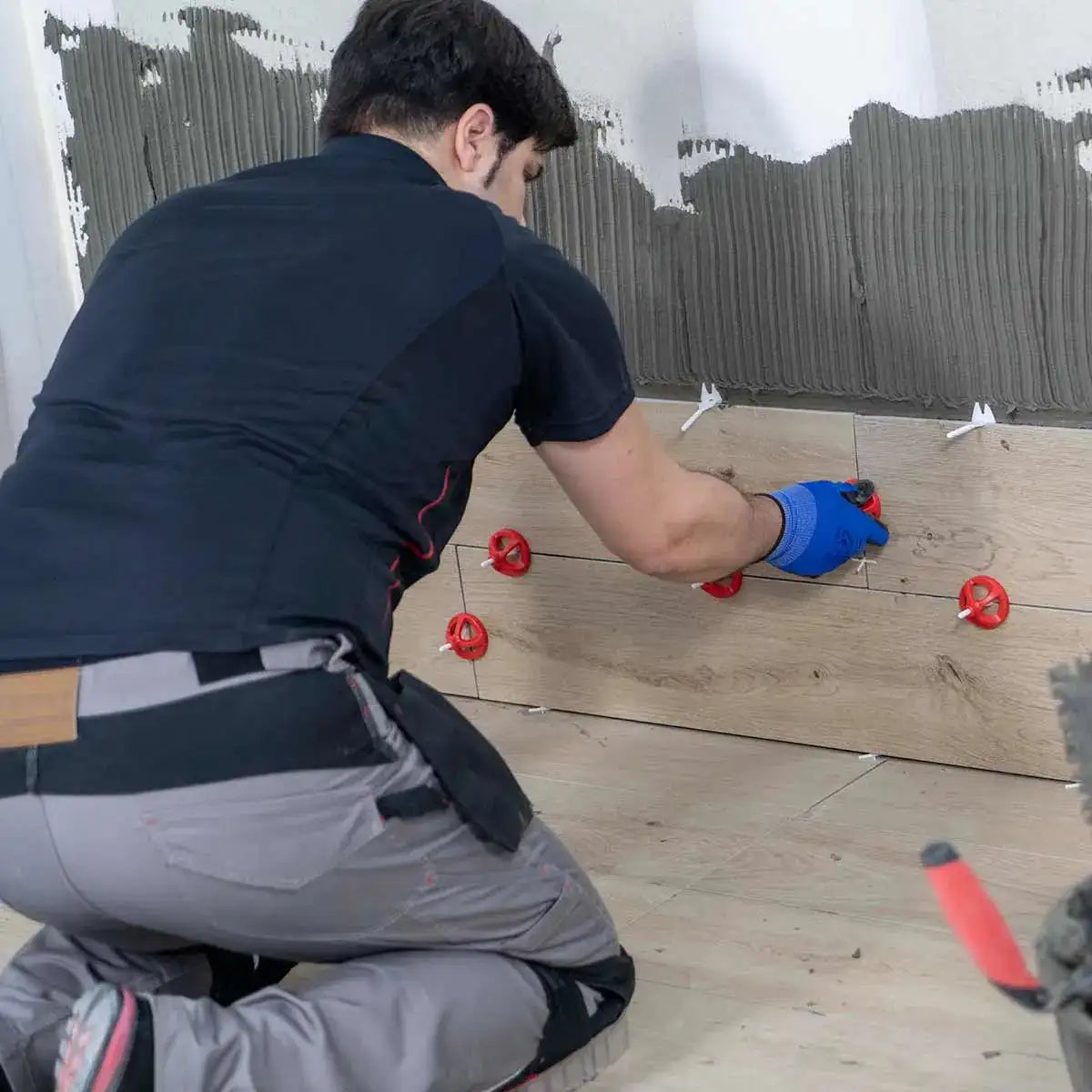

• STEP 1: Place spacer bases under tile once thinset has been applied
• STEP 2: Apply Cap. The cap will align with the top of the base allowing for easy threading
• STEP 3: Spin cap onto base and once the cap makes contact with the tile, turn the cap until the adjacent tiles are level, no need to over-tighten

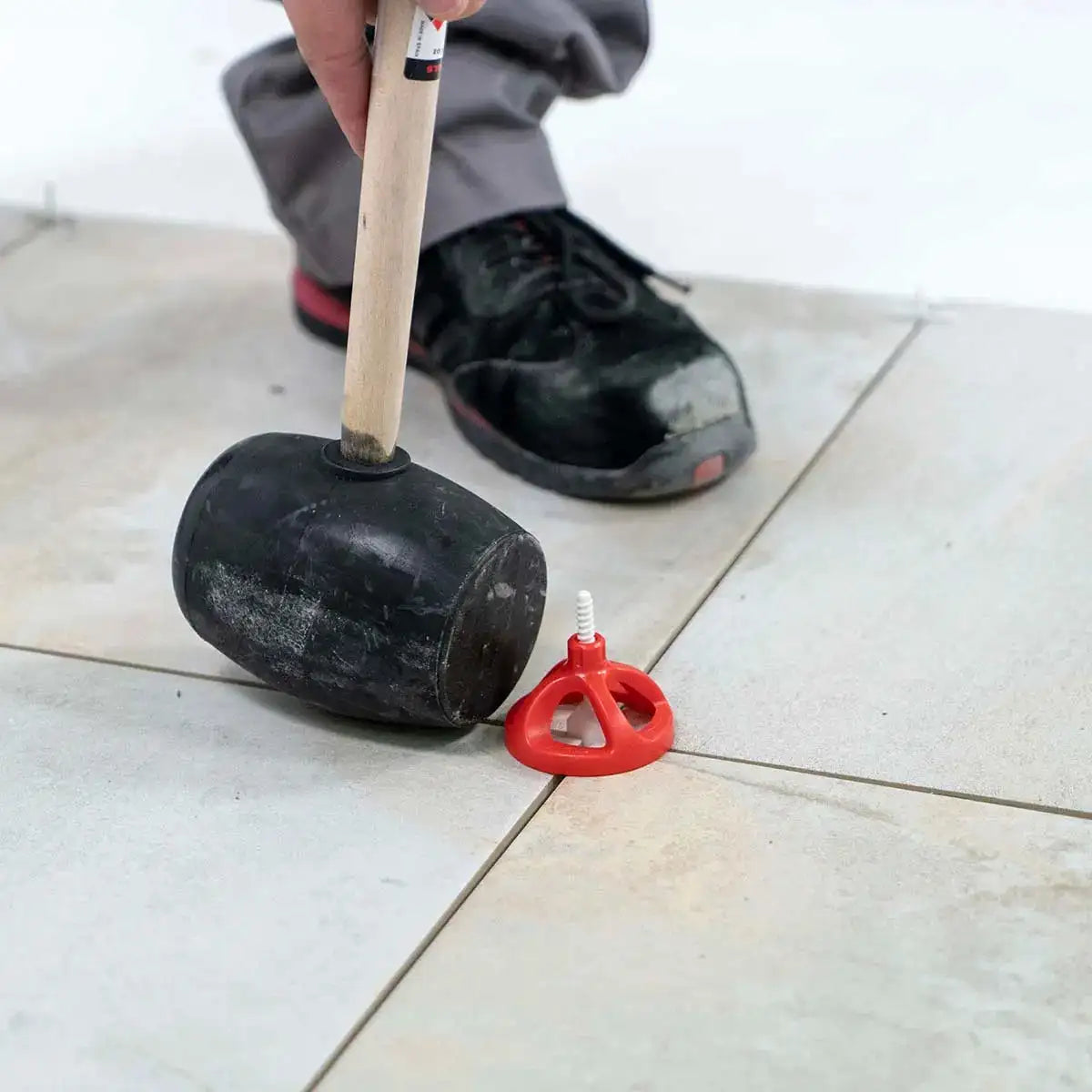

• STEP 4: After thinset has cured break off caps and bases. It’s important to break the cyclone caps by kicking them or hitting with a rubber mallet, in the direction of the grout joint
• STEP 5: Remove the broken bases from caps by unscrewing them (caps are reusable and will last multiple jobs with proper installation and removal)
