Schluter KERDI-LINE Tileable Grate Kit

Schluter KERDI-LINE Tileable Linear Grate Kit

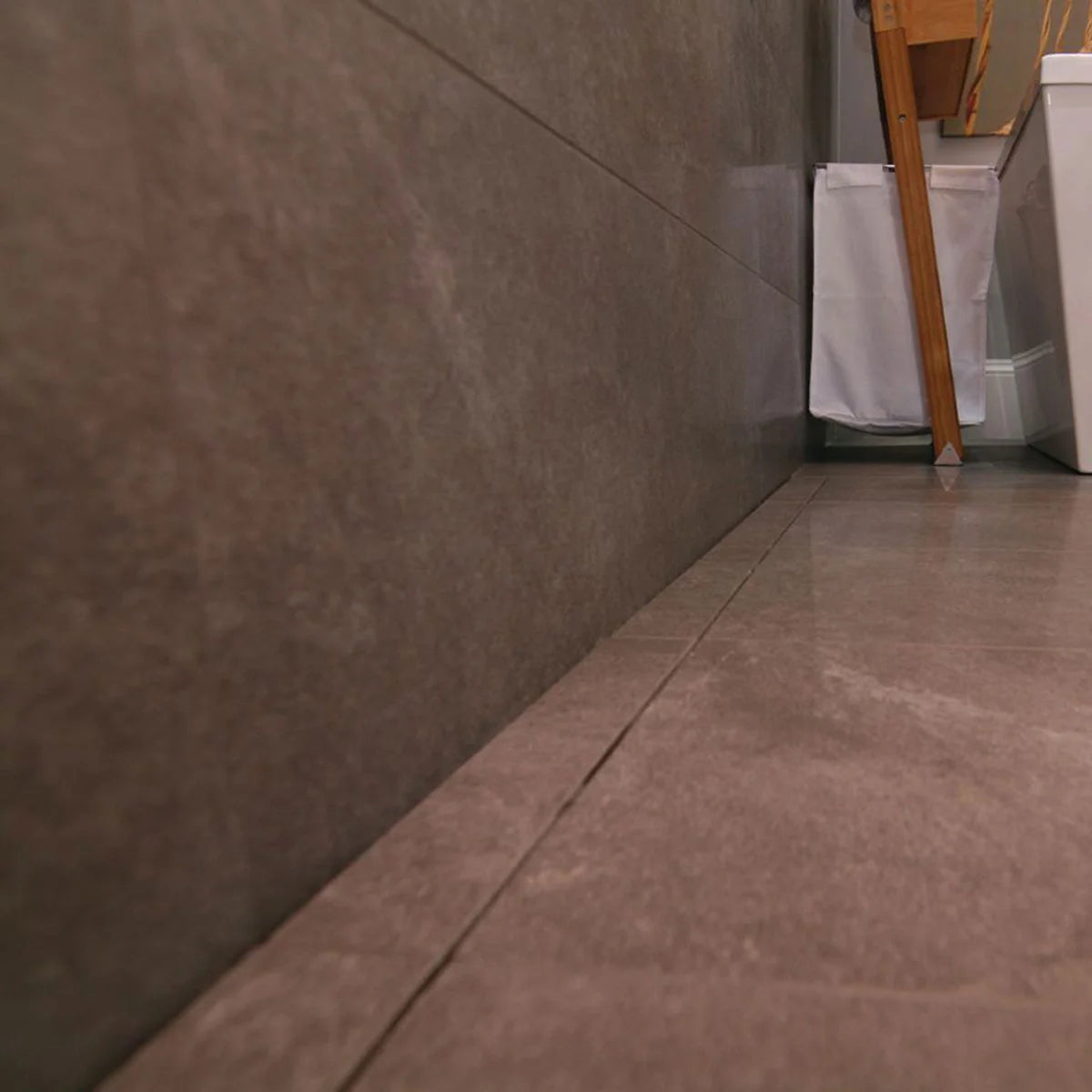

A low-profile linear shower drain designed for bonded waterproofing assemblies can be installed adjacent to walls or at intermediate locations.

Features

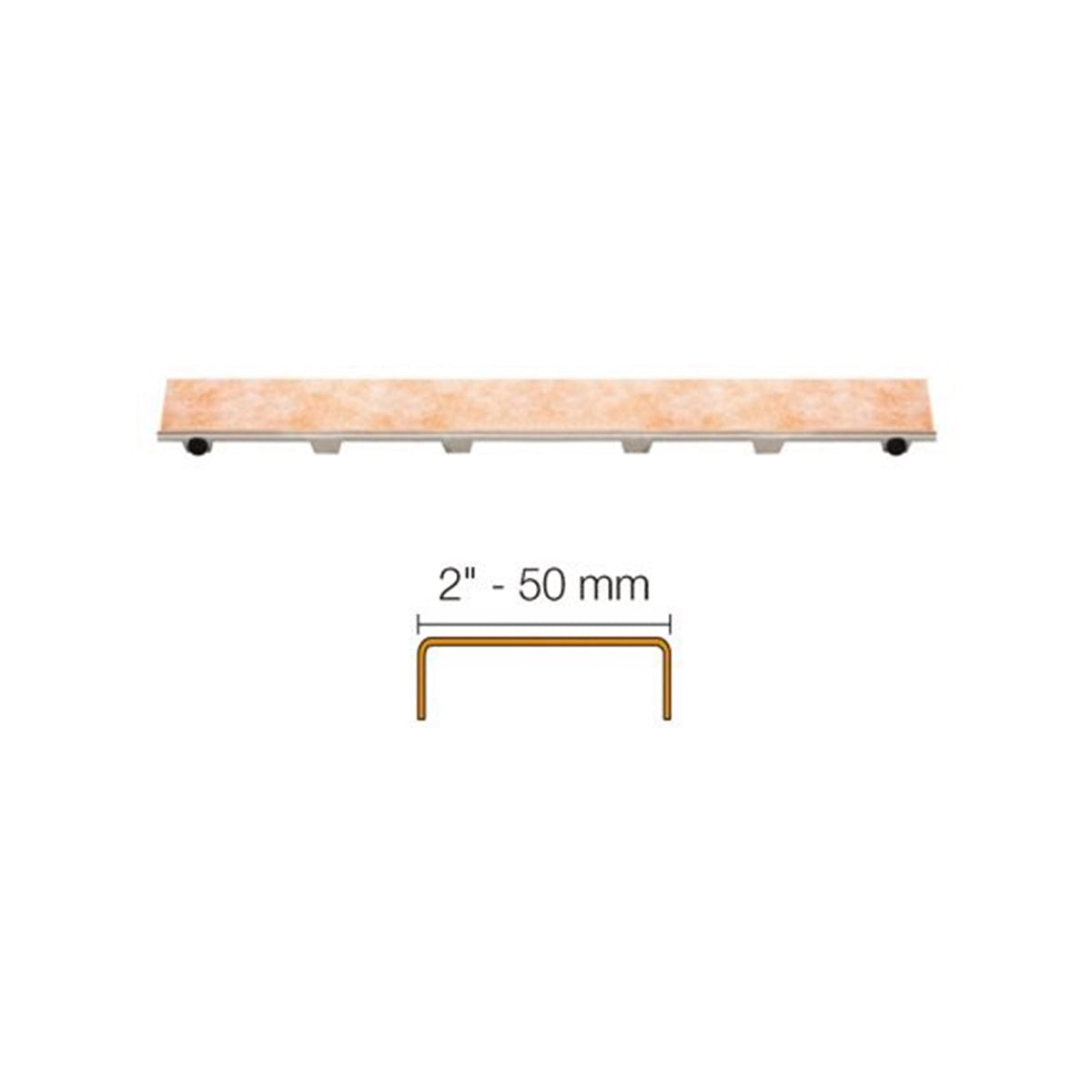

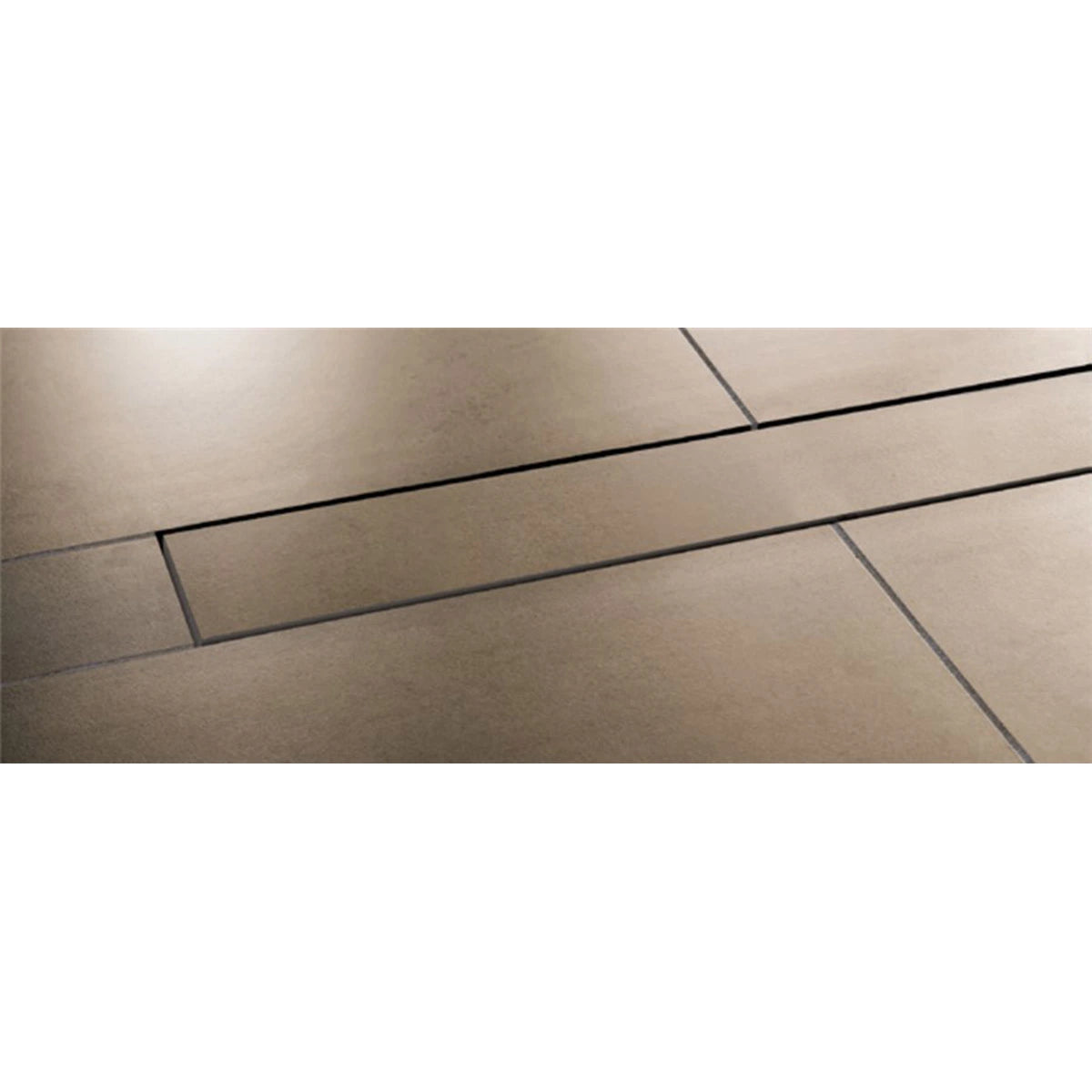

• The grate assembly consists of a frameless, tileable covering support that is placed flush with the top of the channel body and can, therefore, accommodate any thickness tile covering
• A stainless steel plate with Schluter Kerdi Waterproofing Membrane laminated on the surface to allow for bonding ceramic or stone tile
• Available in lengths ranging from 19-11/16" (50 cm) to 70-13/16" (180 cm)
• Two outlet positions available: center or offset
• The offset outlet grate kits are only available in lengths from 27-9/16" (70 cm) to 47-1/4" (120 cm)
• Requires no special maintenance and is resistant to mold and fungi
• If KERDI-LINE is placed at the shower entrance, it is recommended that the drainage openings span the maximum width of the entrance to limit potential overflow
• The grate may be removed to clean the drain housing and the drain pipes
• The channel body is sold separately

Common Questions

What setting material or thin-set should be used for the drain installation?

Apply any Schluter thin-set mortar or an unmodified thin-set mortar to the substrate with a notched trowel where the drain channel support is to be placed

Is the tileable Kerdi-Line Drain Grate removable?

Yes, the covering support can be removed for cleaning purposes using the supplied Schluter drain grate hook

Is the Schluter Shower System waterproof?

The Schluter-Shower System is an integrated family of products forming a fully bonded, watertight assembly for tiled showers. Unlike shower pan liners in conventional assemblies, we bonded waterproof membranes, such as Schluter-KERDI, bond directly to the mortar bed, protecting it from becoming saturated with regular use.
