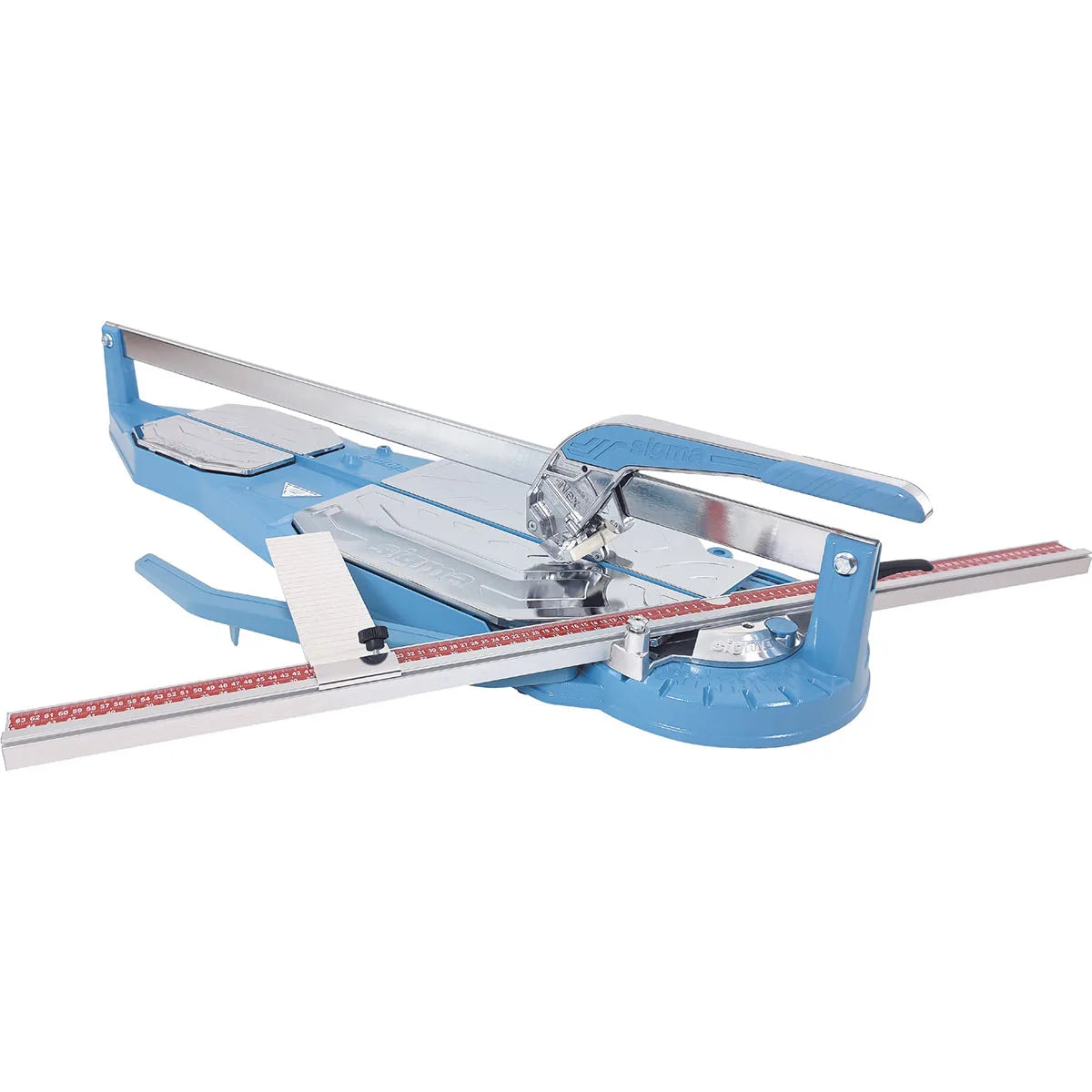

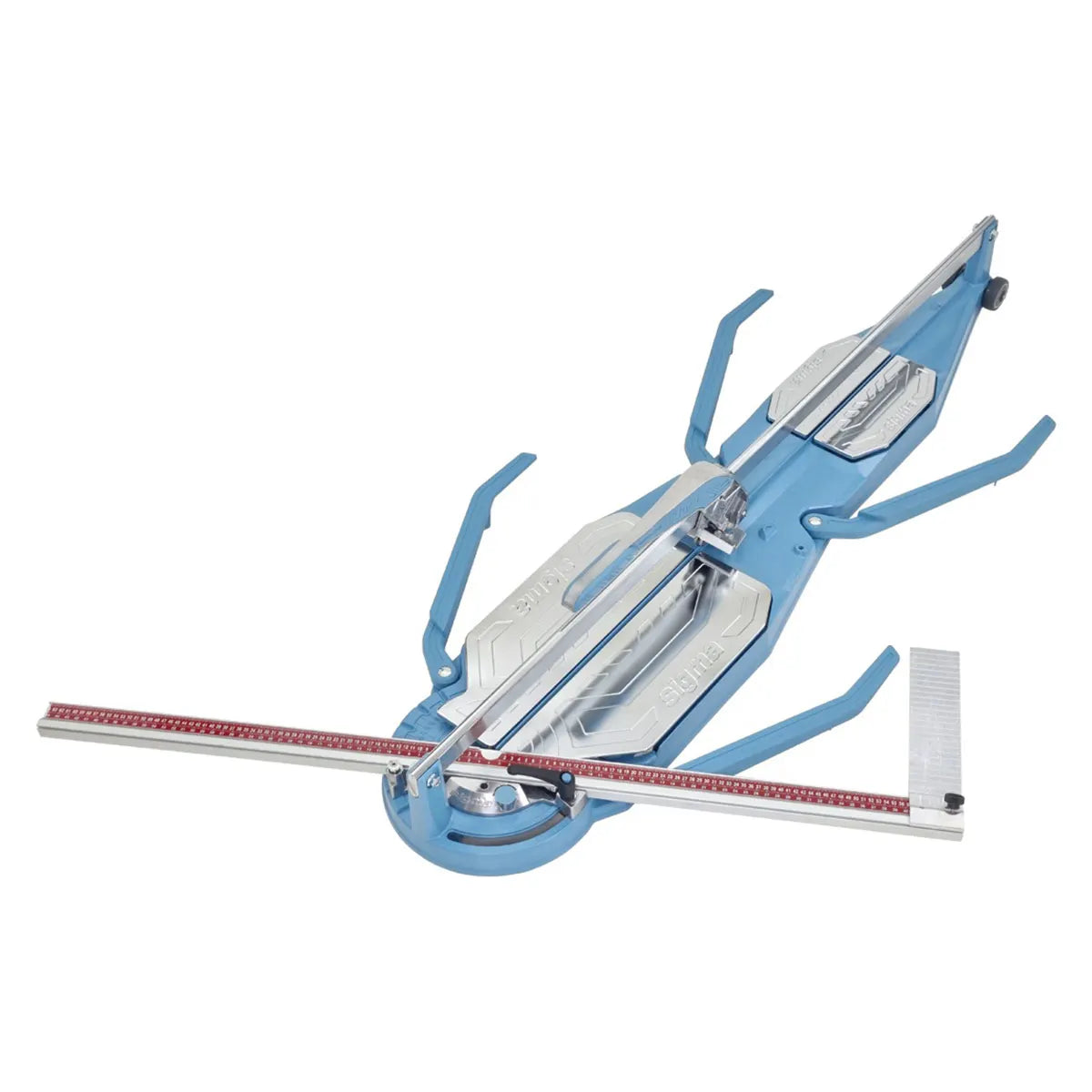

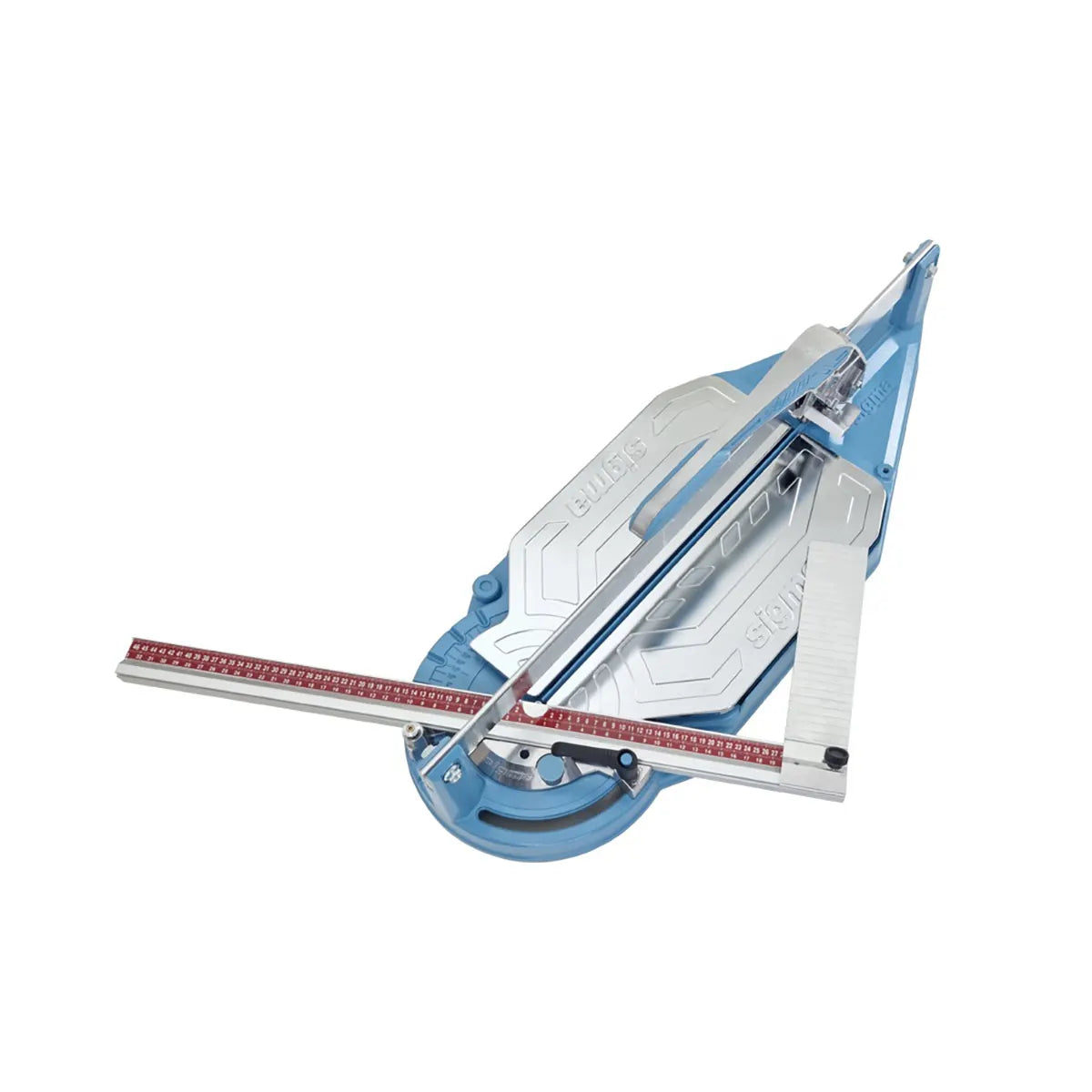

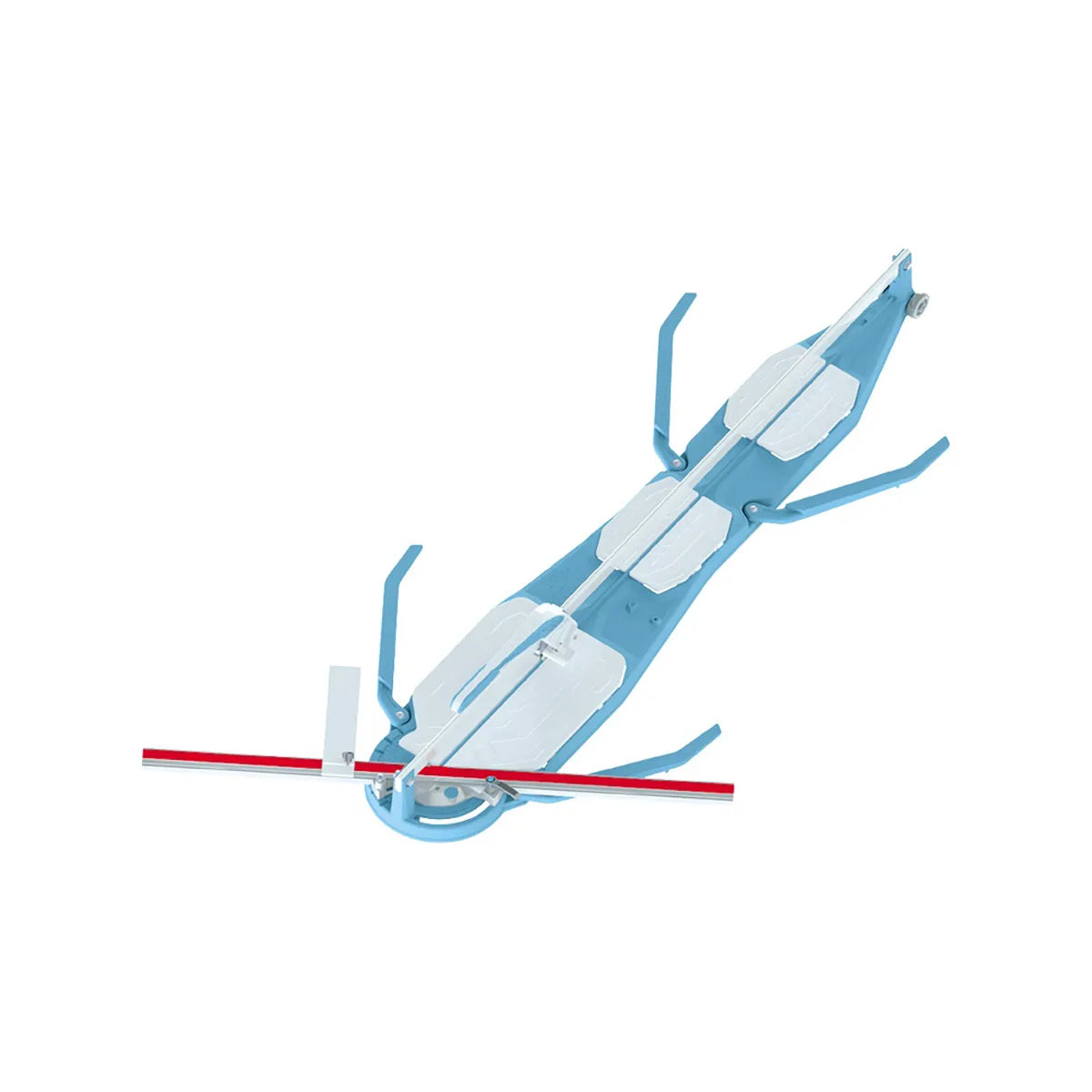

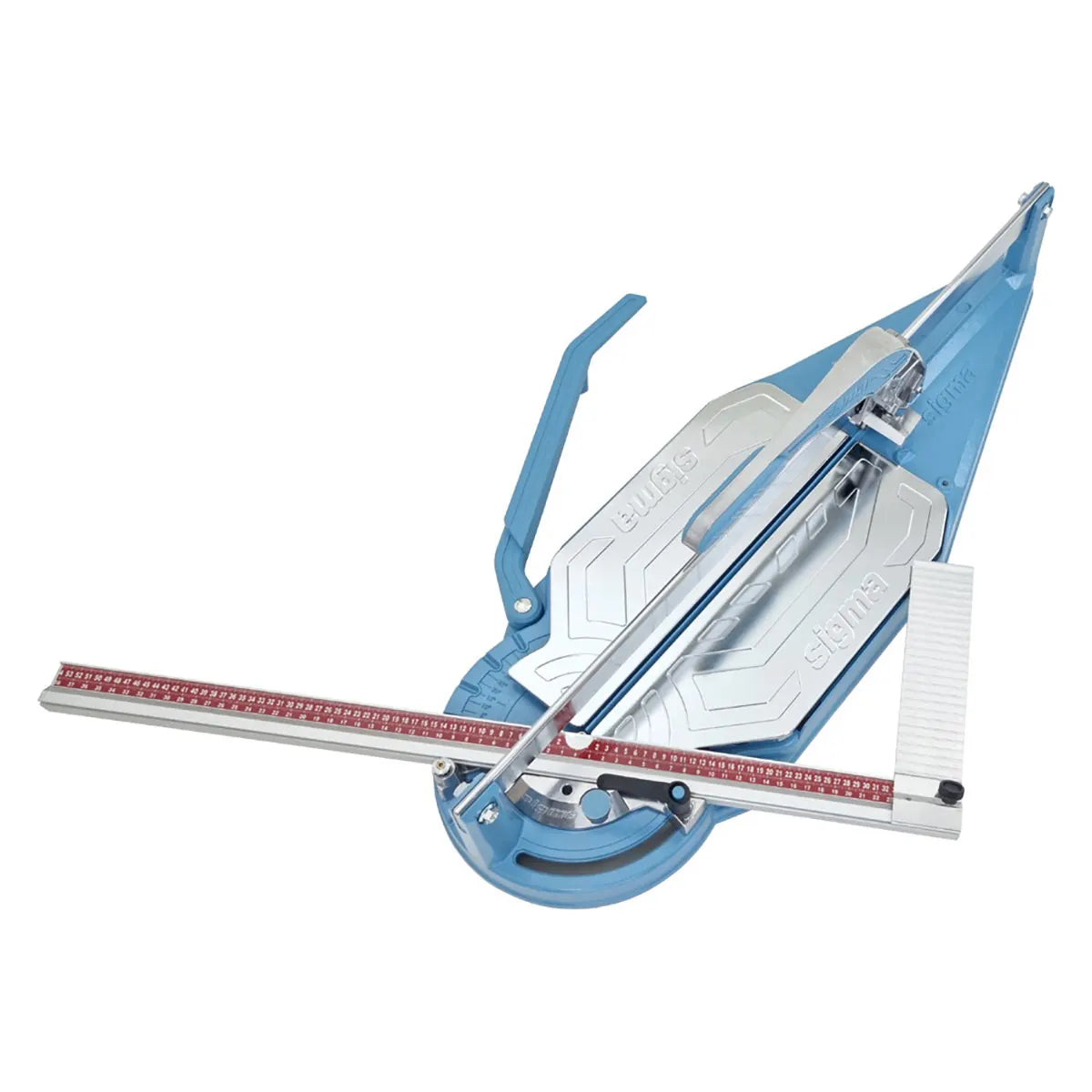

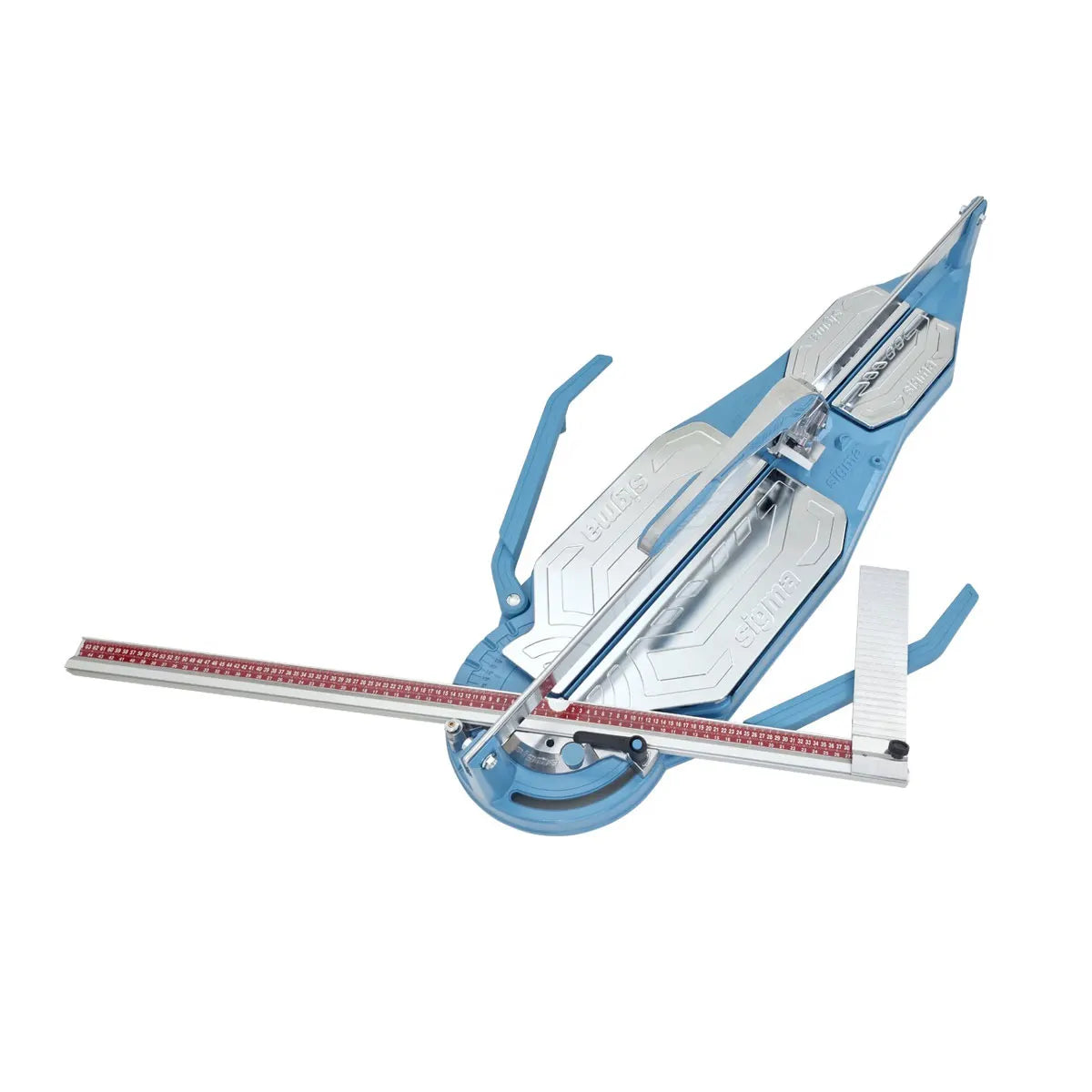

Sigma Series 4 "NEX" Pushing Incision Tile Cutter

Sigma Series 4 "NEX" Pushing Incision Tile Cutter

The new Sigma Series 4 supersedes the existing Series 3 Max tile cutter with new features and benefits. Pushing incision, easy and deep with minimum effort, perfect for rough, thick, and large tiles.

4FN Requires Freight Shipping

Features

• Ergonomic handle specific for pushing incision
• The 16 mm diameter scoring wheel is always clearly visible on the operator side
• Equipped with double suspension for the cushioned scoring of structured tiles.
• The scoring wheel rotates on a roller bearing, guided laterally by an anti-friction metal shell inserted in a CNC milled holder, to avoid friction and lateral clearance
• Cuts up to 3/4" (19 mm) of material
• 120 mm wide splitting foot with interchangeable anti-mark protection
• The sliding carriage is clearance-free, thanks to 3 double-row ball bearings that guarantee precision over time without the need for maintenance
• An automatic system that keeps the handle raised facilitates the insertion of the tile
• Automatic steel compensator for adjusting the slide preload on the rail
• For the splitting phase, lift the handle to allow automatic rotation of the foot
• The front protective rubber pad absorbs the impact during the incision in order not to damage the base
• Guide bar that can pivot up to 45 degrees in both directions

Sigma NEX Tile Cutter Specifications
Model	Sigma 4BN	Sigma 4CN	Sigma 4DN	Sigma 4EN	Sigma 4FN
Length of Cut	24.4 in	29.9 in	37.4 in	49.2 in	61 in
Diagonally Cuts	17.2 in	21.1 in	26.4 in	34.8 in	43.1 in
Weight	23 lbs.	28 lbs.	33 lbs.	47 lbs.	54 lbs.
