T Brace Countertop Support Bracket

The Original Granite Bracket T Brace Countertop Support Bracket

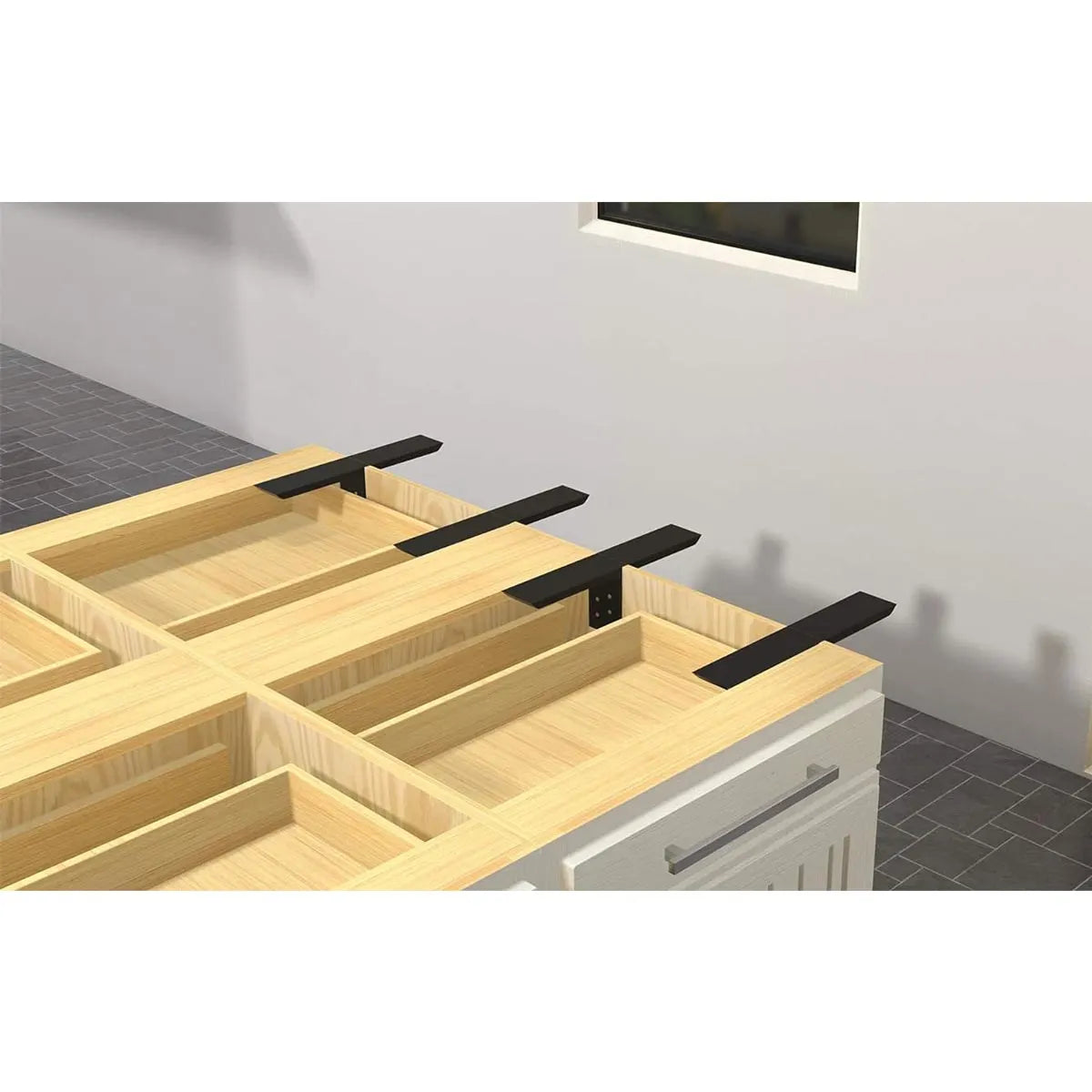

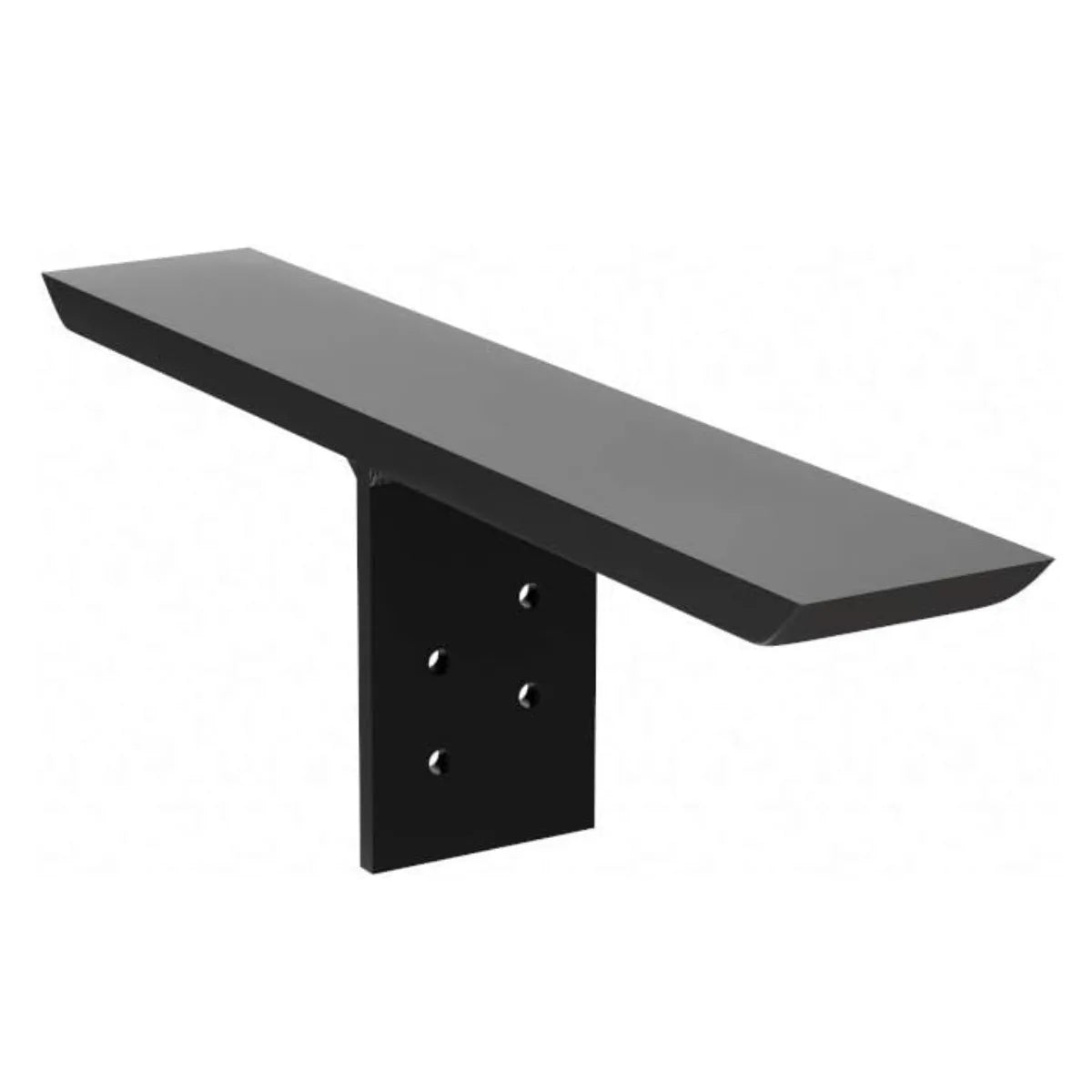

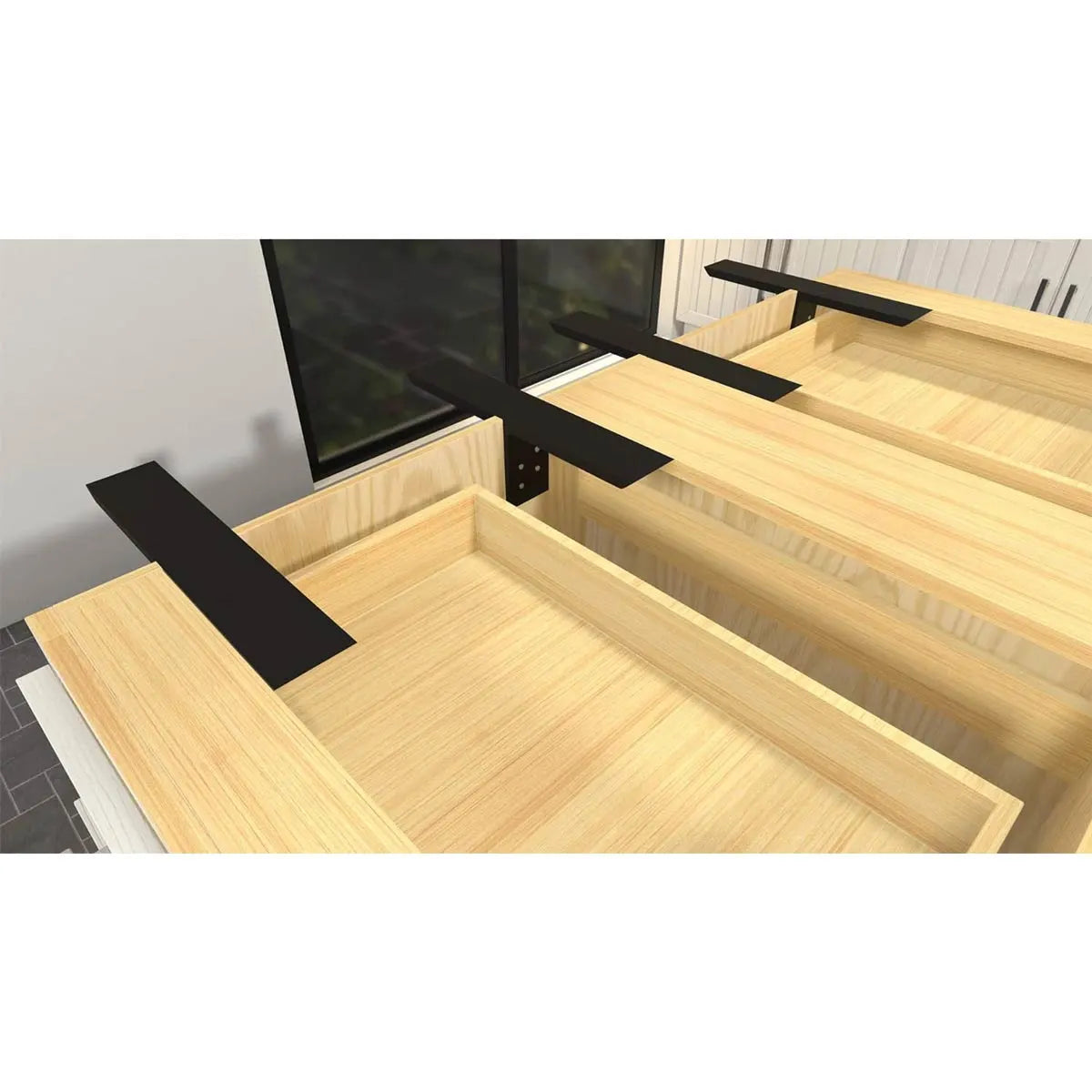

For countertop support, the T-Bracket Hidden Granite Bracket is the bracket support that will use the weight of the granite to support your big granite countertop overhang on an island. This Bracket lies across the top of the cabinet, half of the bracket will be inside of the cabinet and the other half will be exposed under the overhang. The vertical angle drops down on the inside back of the cabinets and is used to hold the T- Bracket in place until the granite is put in place. This will give your granite the appearance of floating once installed.

Features

Hardware included
Virtually invisible giving your granite countertop the appearance of floating
Painted with a double coat of rust inhibitor black paint
Non-intrusive. No corbels are needed. No knee-knocking
Completely open space allowing room for chairs and legs
1/2 inch thick by 2-1/2 inches wide
Easy to install
Bracket end has beveled edge for safety
Screw holes are staggered on the vertical piece
Made in the USA
PLEASE NOTE: The vertical piece is welded in the center of the horizontal piece. Therefore, if you have a 10" bracket, the vertical piece is directly in the center of the bracket, giving you approximately 5" on each side of the T-bracket. This means there will be approximately 5 inches inside the cabinet and 5" on your overhang
