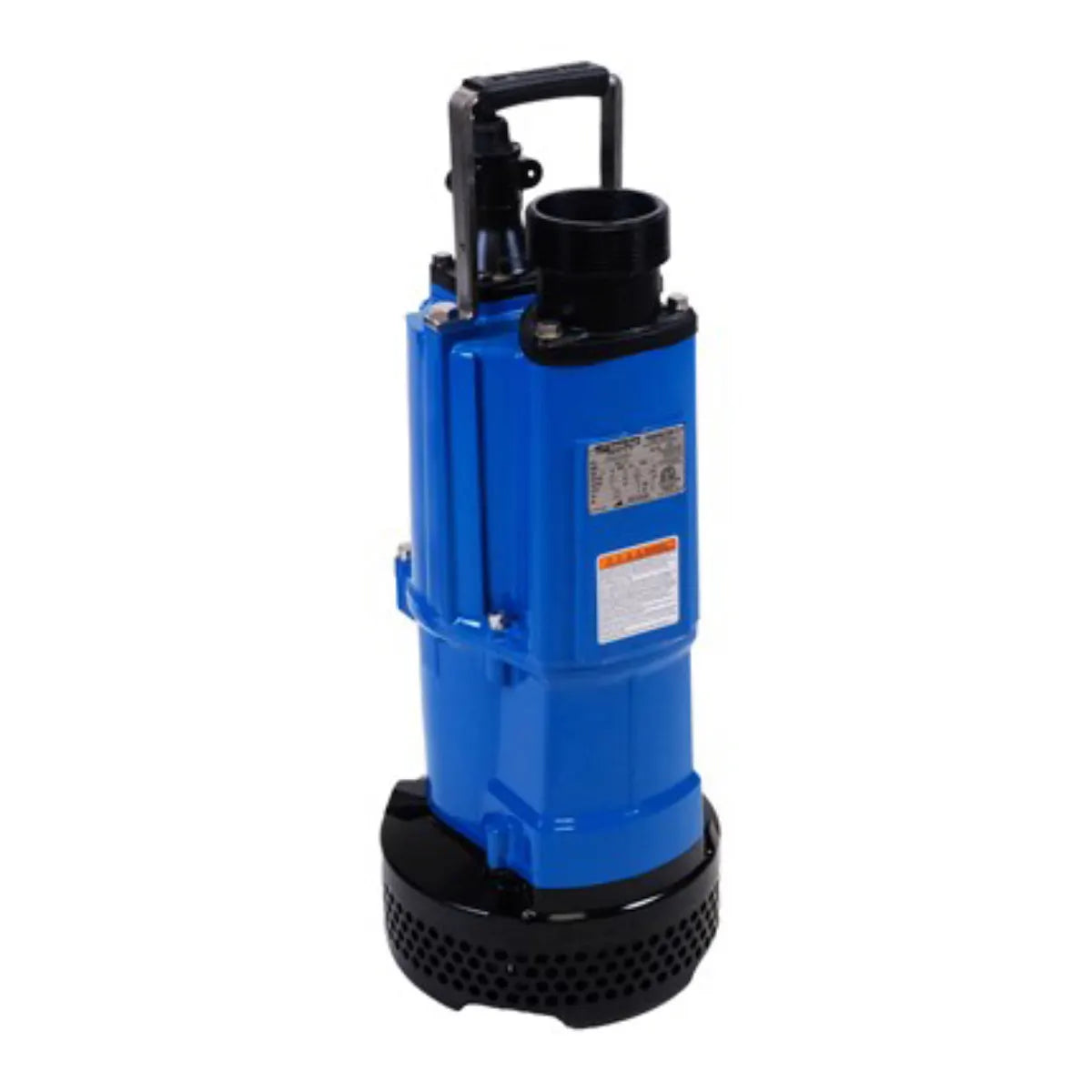

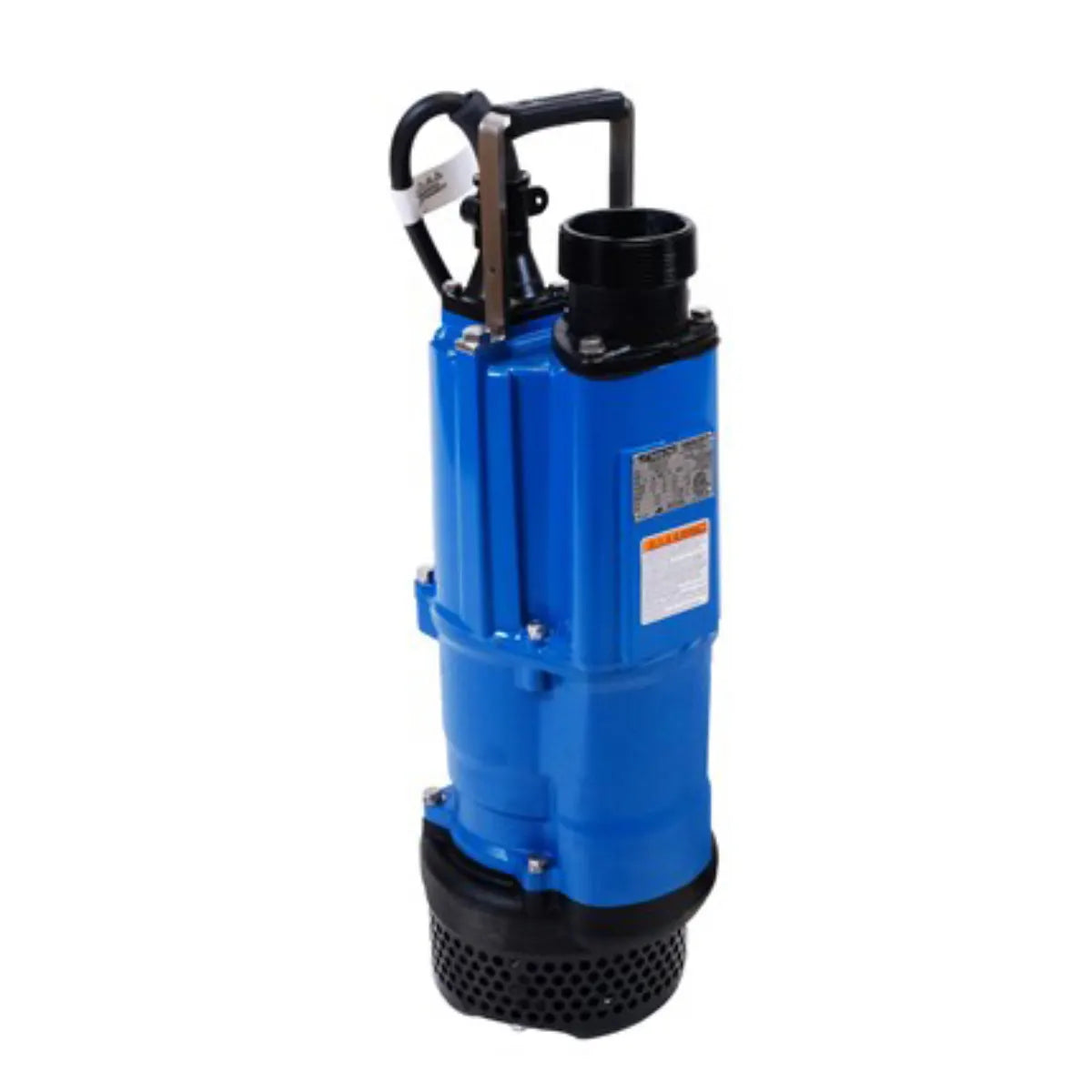

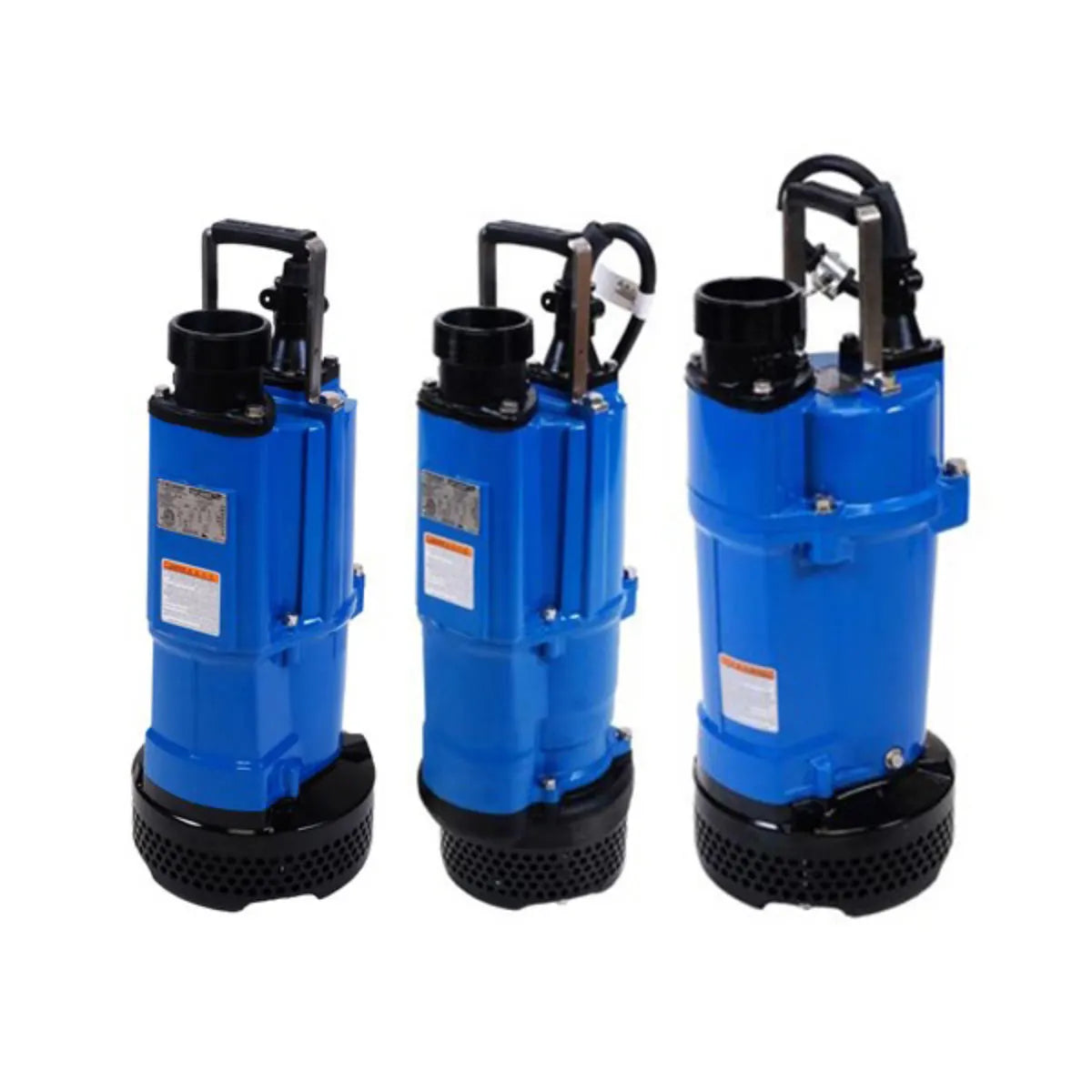

Tsurumi Pump NK Series Submersible Pumps

The high head single-phase NK Submersible pumps are available in 110V or 220V. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials.


Features

  • Semi Open Impeller and Synthetic Rubber Wear Plates for maximum durability
  • Stainless steel shaft sleeve
  • Copper wound motor with class B insulation minimizes the cost of operation
  • Built in thermal and amperage sensing protector prevents motor failure due to overloading or accidental run dry conditions
  • Double shielded high temperature C3 ball bearings rated for a B-10 life of 60,000 hours extend operational life
  • Top discharge, flow-thru design enables operation at low water levels for extended periods
  • Great for Residential, commercial, industrial wastewater and construction site drainage
  • Dual inside mechanical seal with SiC faces provides for longer operational life
  • Oil Lifter provides full lubrication of the seal faces
  • V-Ring Seal design protects mechanical seal from abrasive particles
  • Terminal board for voltage reconnect allows for change from 110V to 220V ON THE NK2-15 model
  • Limited 2-Year Warranty
Tsurumi Pump NK Series Submersible Pumps
Model Discharge Size Motor Output Diameter Height Max Solid Diameter Weight
NK2-15 3" 3 HP 9-7/16" 24-1/2" 0.334" 80 lbs.
NK4-22 3" 3 HP 9-7/16" 24-1/2" 0.334" 81 lbs.
NK3-22L 3" 3 HP 9-1/4" 26-1/2" 0.334" 90 lbs.
