Raimondi Vite Tile Leveling System 1/32" (1mm) Straps
$1000 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Raimondi
| SKU: 7617-100 Clip 1/32 in
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
Raimondi Vite Tile Leveling System 1/32" (1mm) Straps

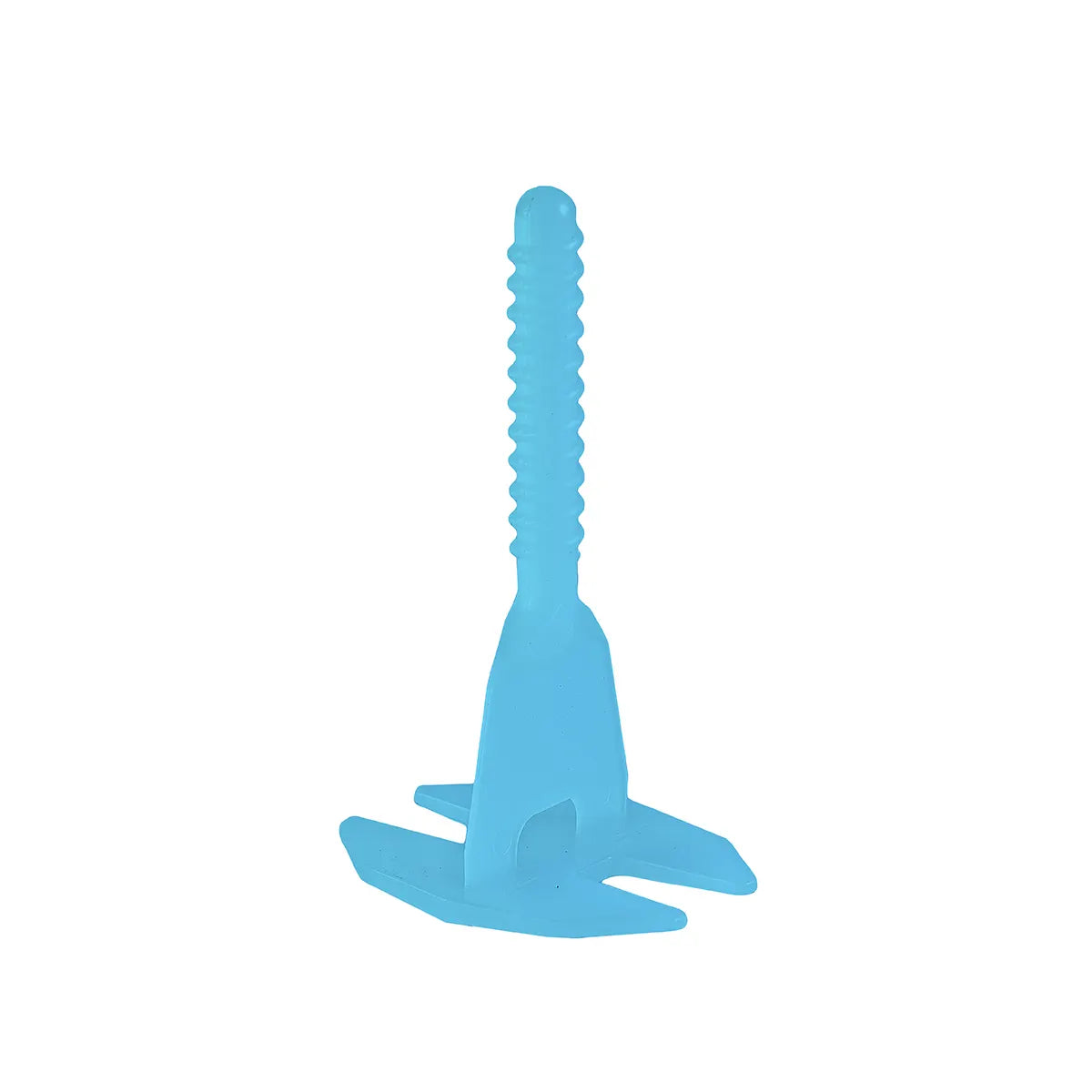

NEW COLOR! Please note that Raimondi is updating the color on the 1mm straps. As this is relatively new, some boxes will still contain the old color. The product remains the same.

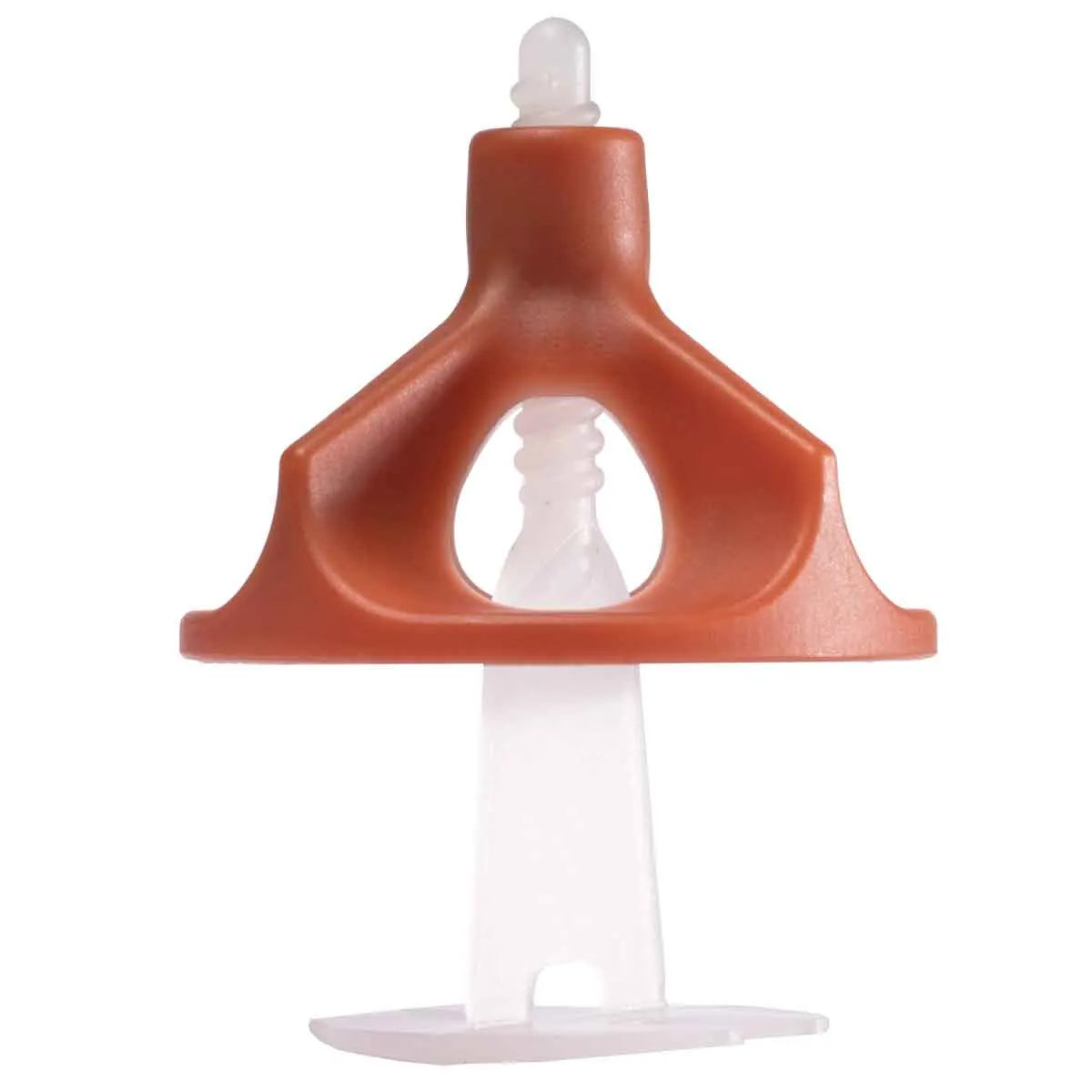

Raimondi VITE leveling system cap and strap system makes lippage removal as easy as place, set, and spin. The caps tighten so they level themselves between spaces, which removes lippage
Features

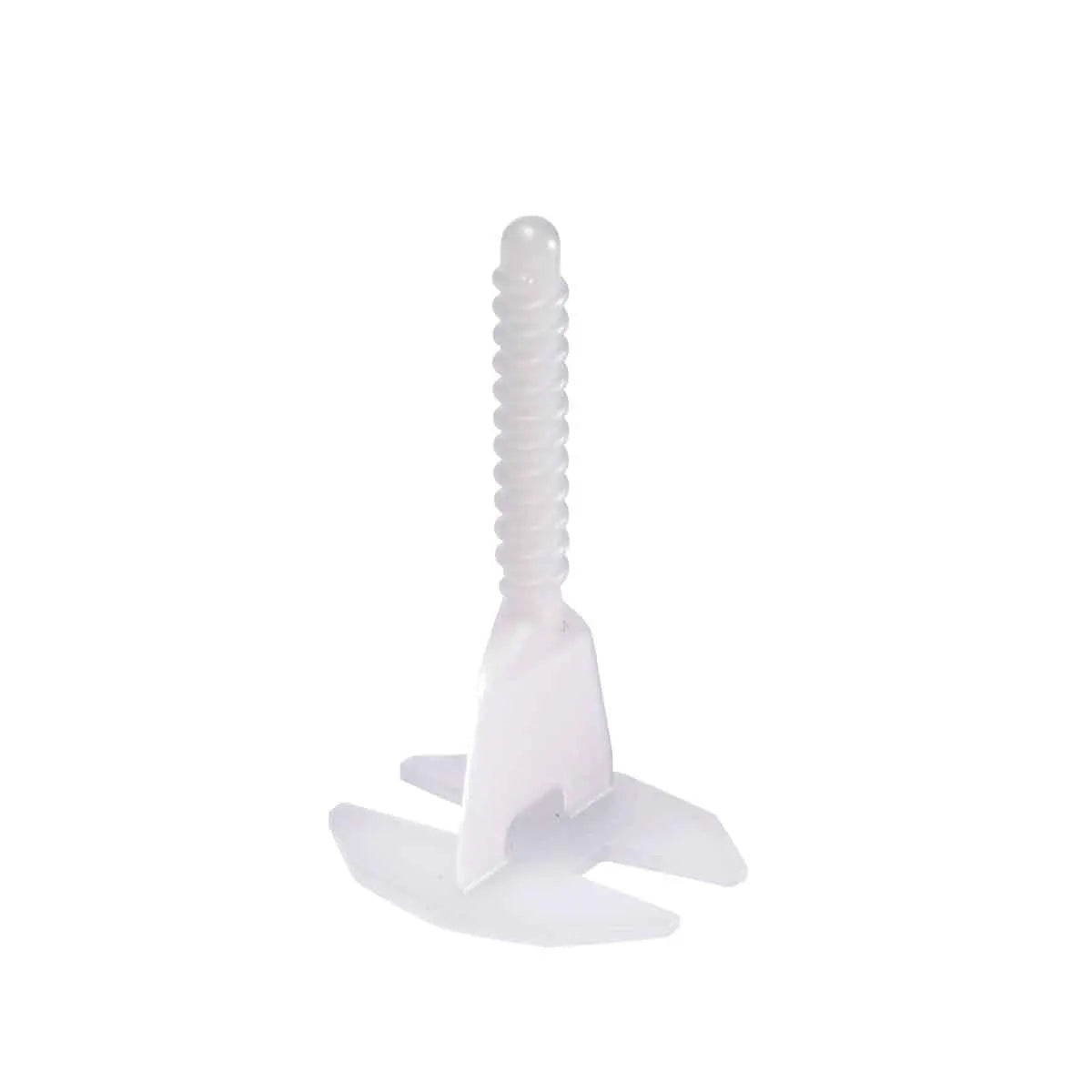

- Clips are placed between tiles in the adhesive, and caps are placed on top of the threads to be tightened
- Caps spin and tighten with just two fingers
- Grip points are established on caps spin until they reach the tile
- Tighten caps so it levels itself between spaces, which removes lippage
- Once the adhesive is set, remove caps by hitting with a rubber mallet or use the Clip Dozer

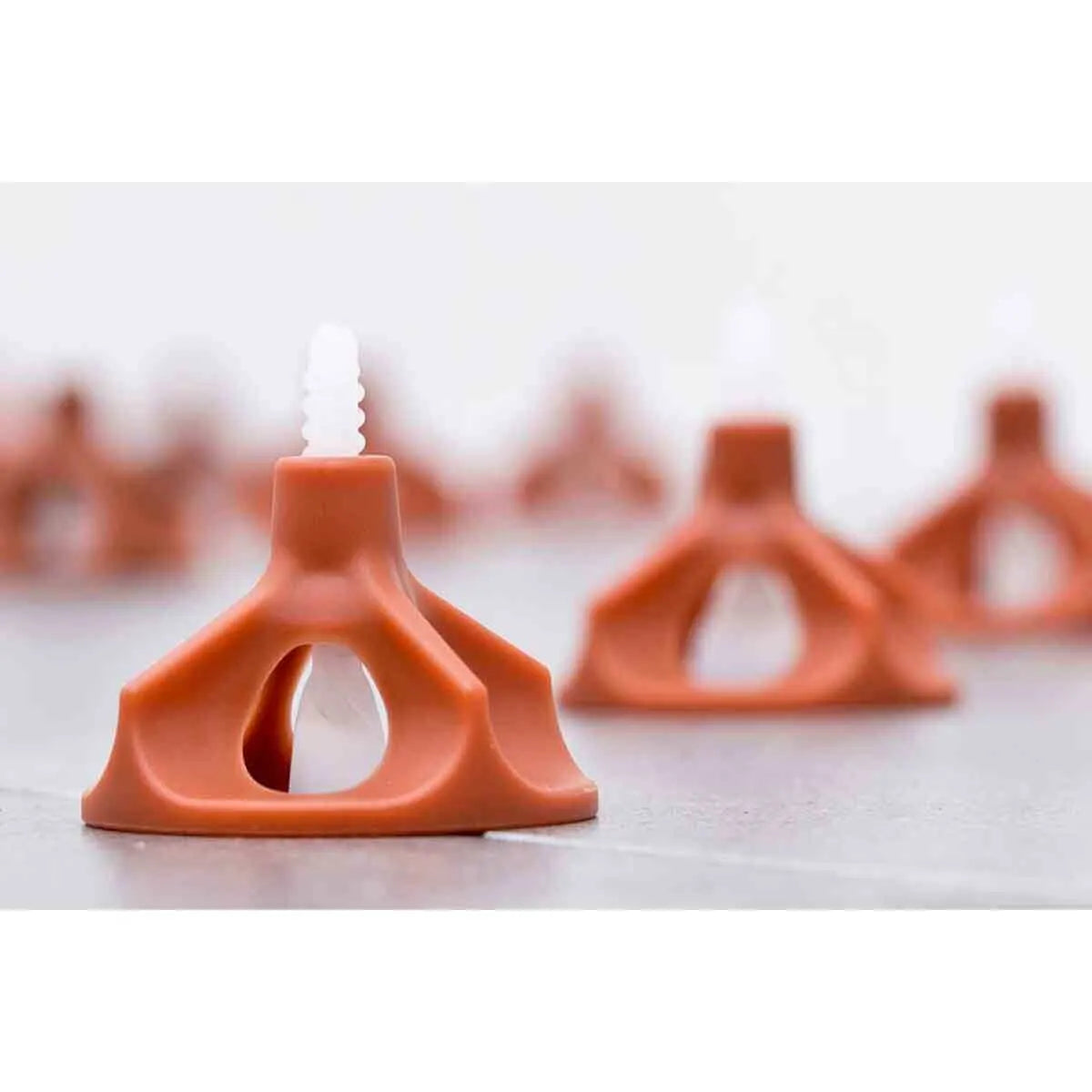

- Caps are specially designed with hollow spaces to see grout joints

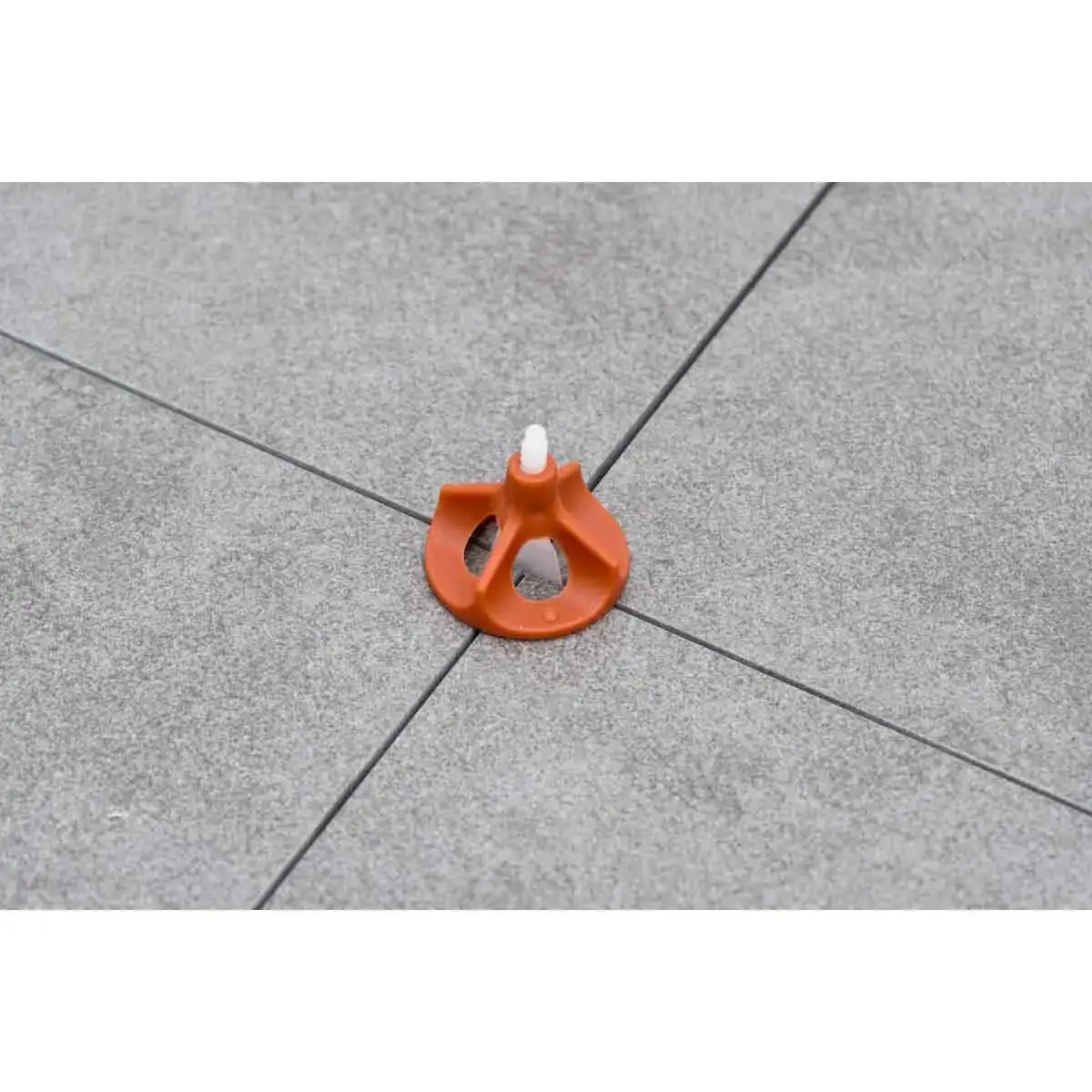

- Suitable for both tile sides and intersections
- The VITE does not require any tools
- For tile thickness from 3 to 15 mm (1/8" - 19/32")
VITE Technical Data
- Minimum tile thickness: 1/8"
- Maximum tile thickness: 19/32"
- Minimum Grout joint: 1/32"

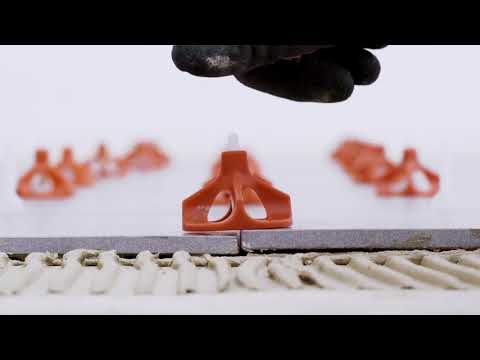

How to Use Raimondi Vite Tile Leveling System
- STEP 1: After spreading your tile adhesive, insert a leveling clip underneath the tiles along the 4 sides - use traditional spacers as you usually would to square up the corners. For larger tiles, it may be necessary to "double up," using 2 leveling spacers for each side
- STEP 2: Set the tile and beat it with a rubber mallet

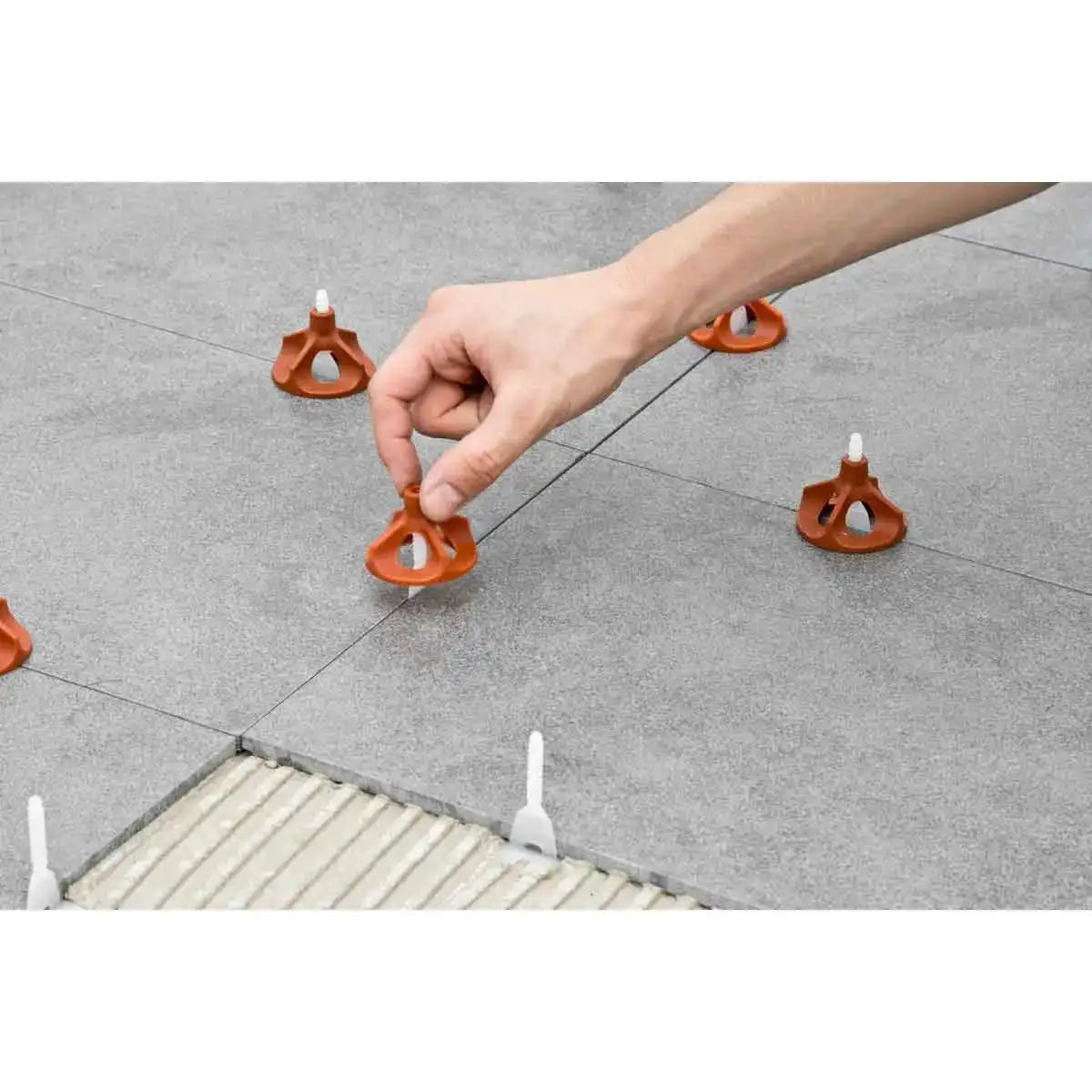

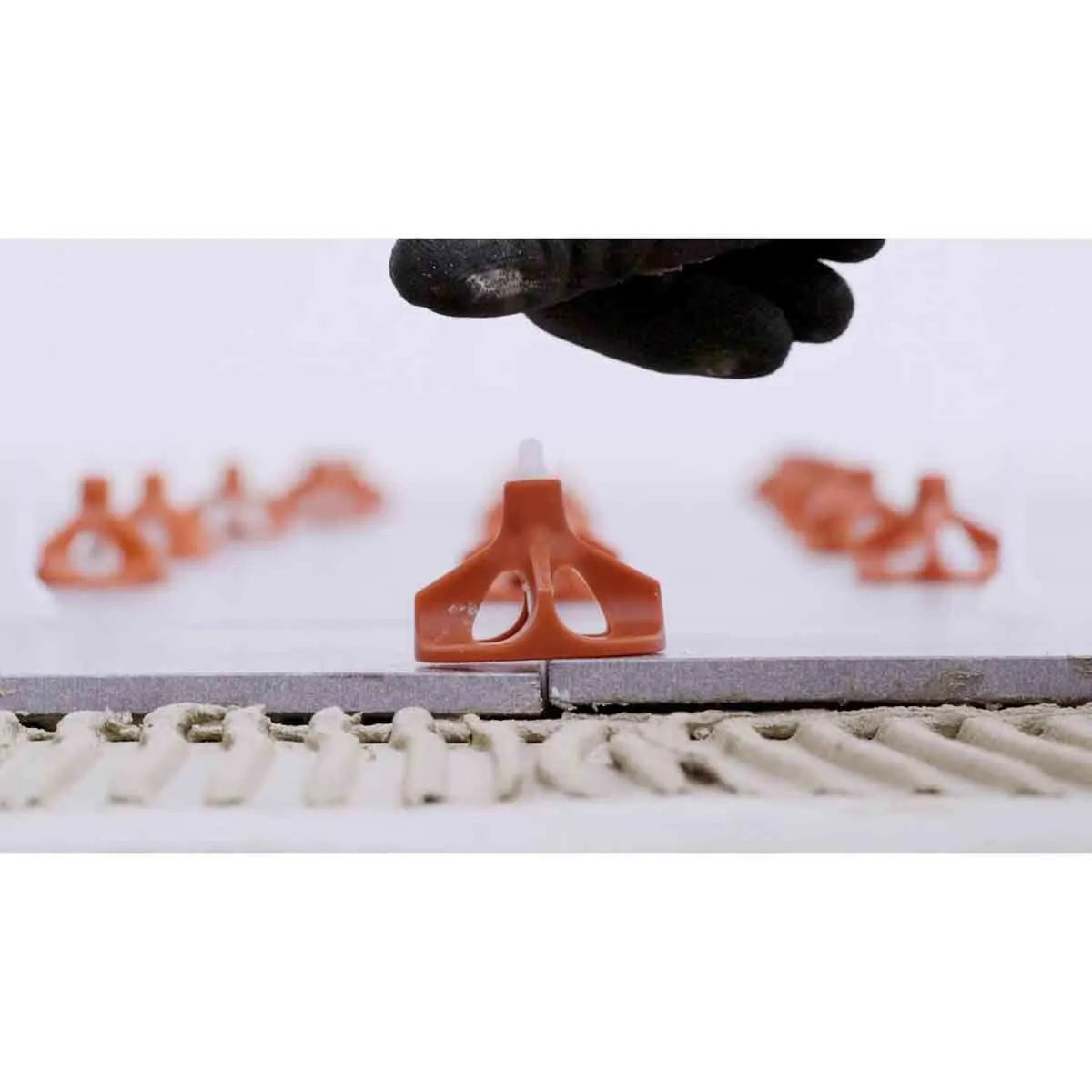

- STEP 3: Spin the caps until tight. You will see the tile lift removing lippage

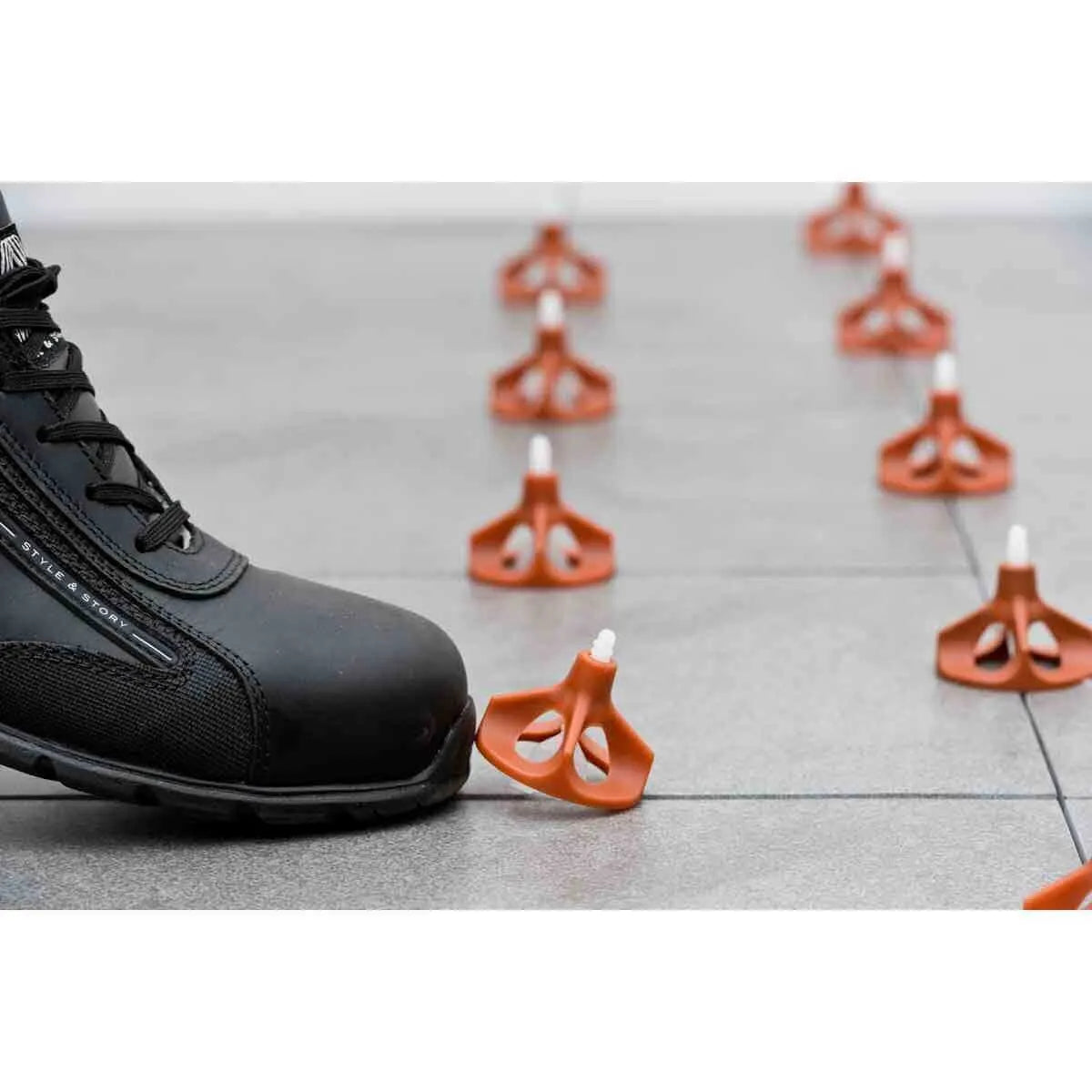

- STEP 4: Once the tile adhesive has been set, remove the VITE system with a rubber mallet or kick it out with your feet. Grout can be installed once all clips have been removed
