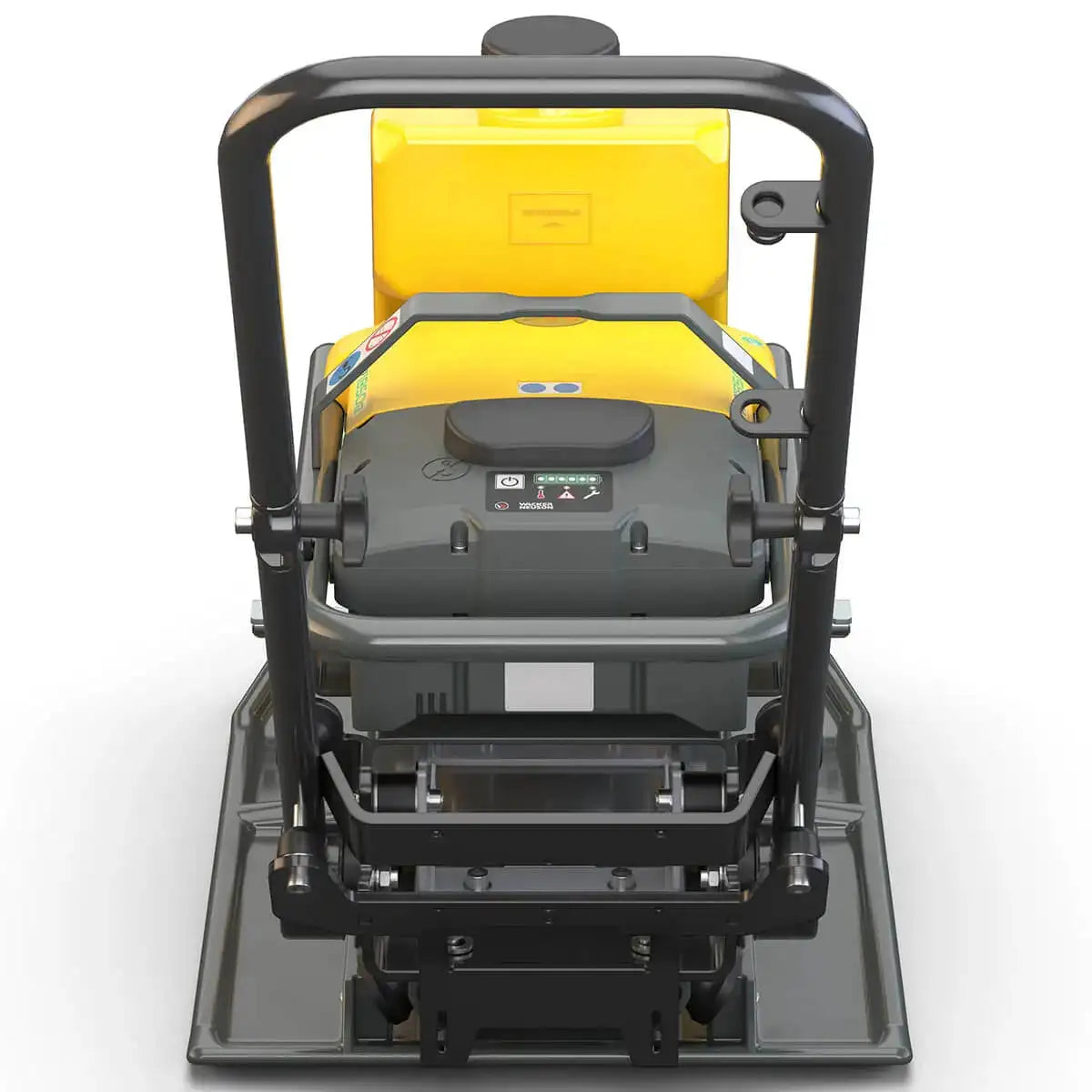

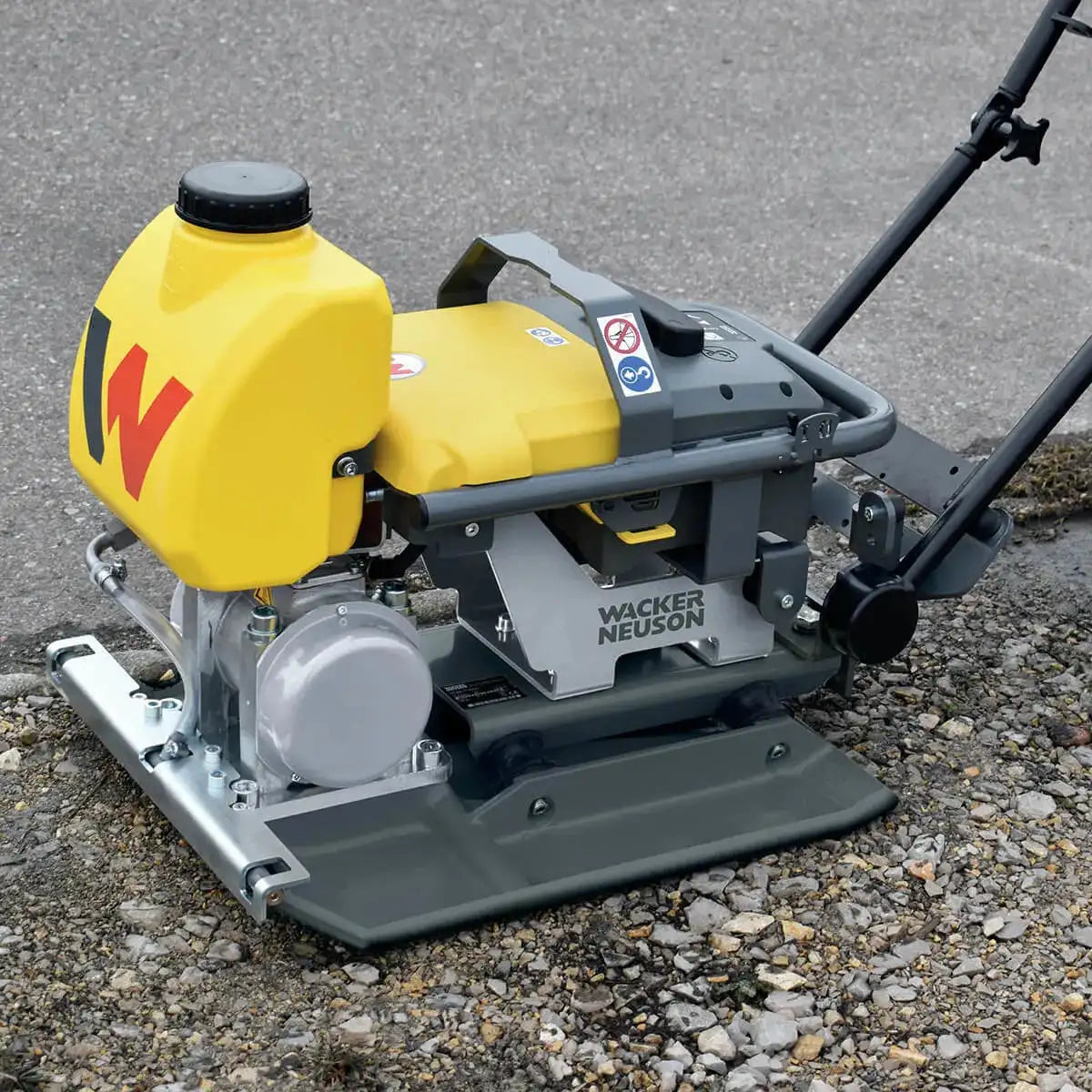

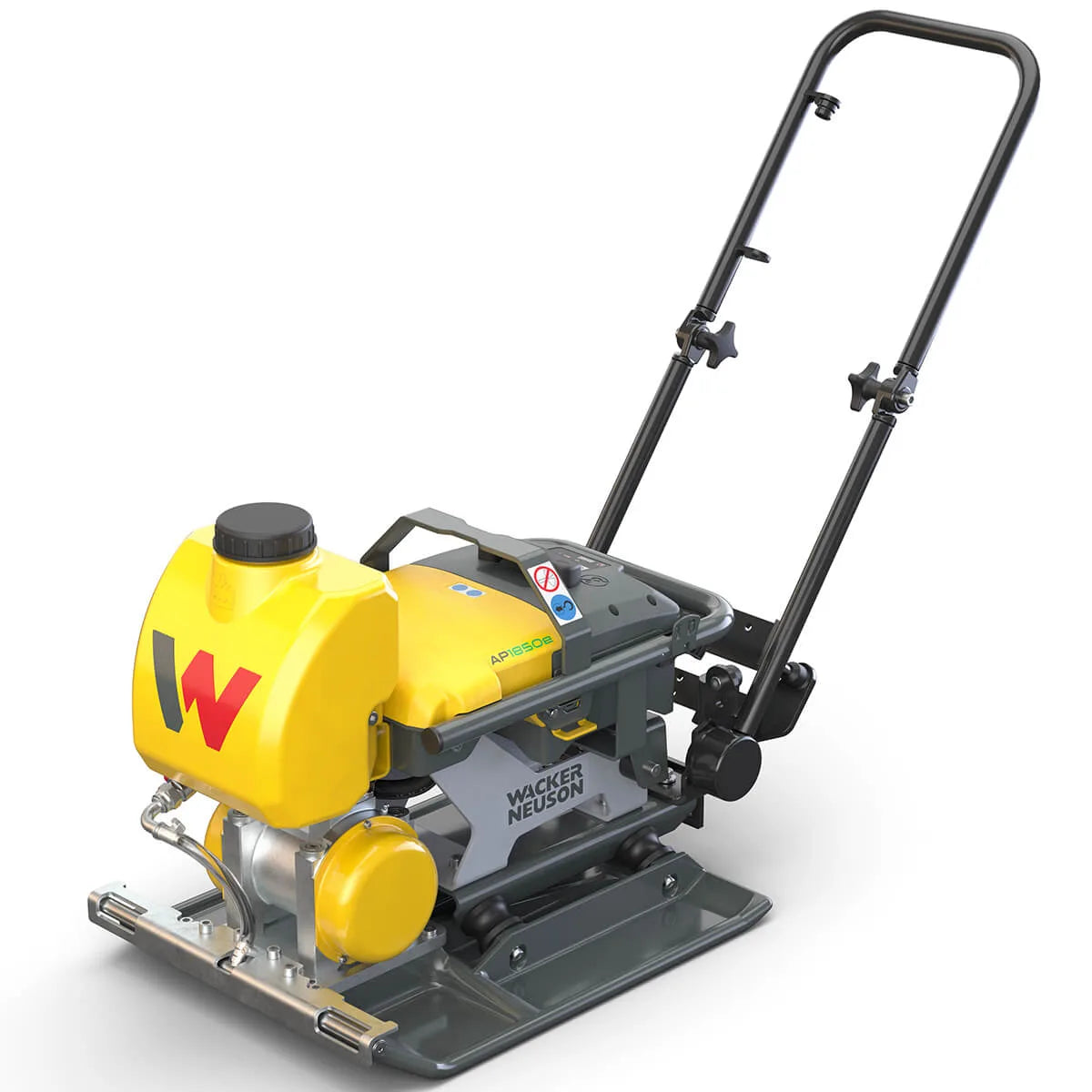

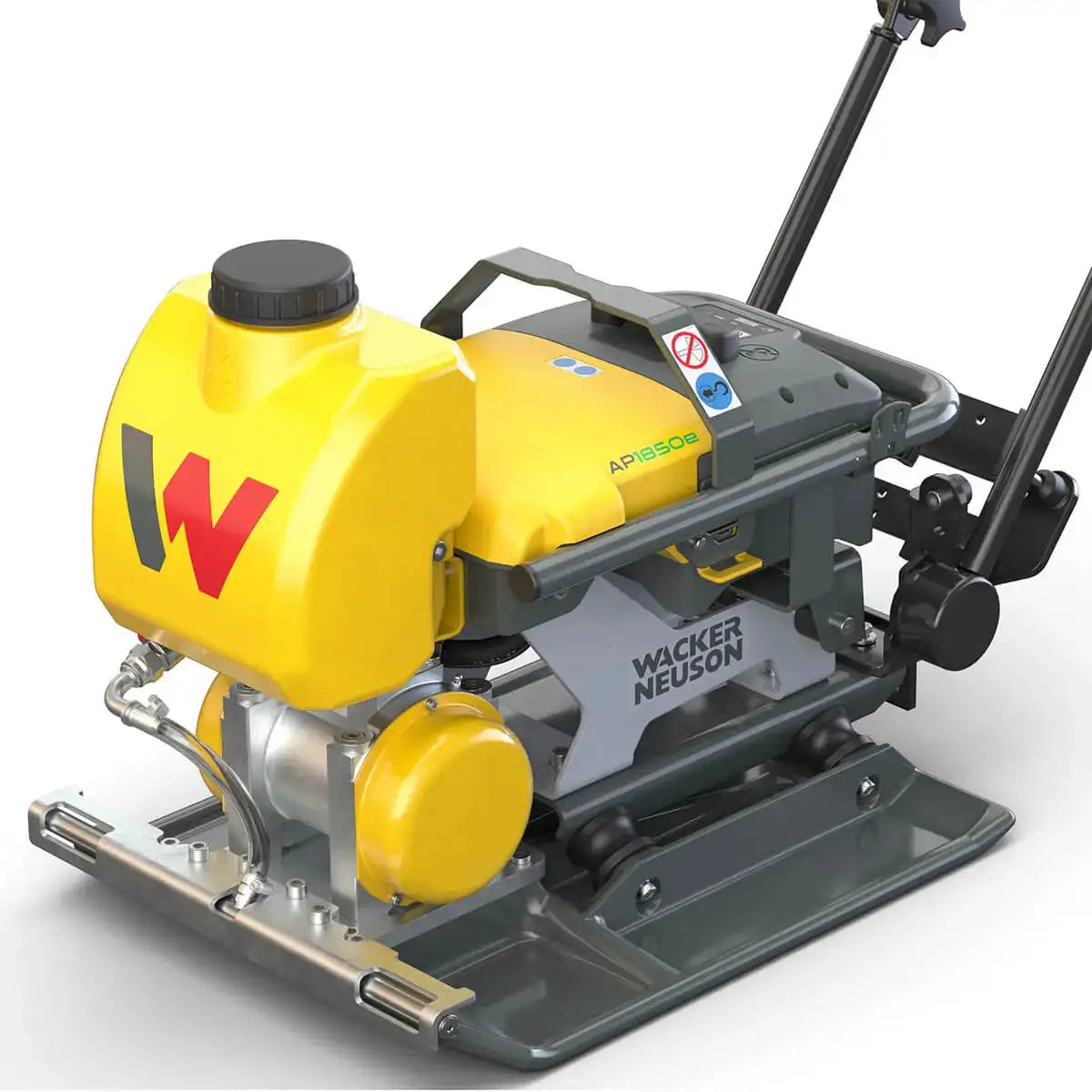

Wacker Neuson APS1550WE Battery-Powered Vibratory Plate
$2,61000 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Wacker Neuson
| SKU: 510061220
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
Wacker Neuson APS1550WE 19.7" Single Direction, Battery Operated Vibratory Plate
Single direction, emission-free vibratory plate with water tank for soil and asphalt compaction. With battery-operated electric motor.
Features
- Emission-free compaction in trenches, industrial buildings, and enclosures! Suitable for all traditional soil and asphalt compaction work, protecting the operator and the environment in the process
- Easy start at the push of a button, even in very low temperatures
- Water tank and sprinkler set included for asphalt compaction
- Fold-down guide bar for compact transport and storage dimensions
- Low-wear, durable base plate made of nodular cast iron
- The maintenance-free asynchronous electric motor was developed and produced in-house
- It can be used for all applications on an average workday with just one battery charge
- Low hand-arm vibrations
- A battery is required to operate this vibratory plate. Battery and various battery chargers are sold separately
What's Included?
- Wacker Neuson APS1550WE 19.7" Single Direction Vibratory Plate
- Water Tank and Sprinkling Set
- Operator's Manual
| Wacker APS1550WE Compactor Plate Specifications | |
| Length x width x height (handle in working position) | 28.66 x 19.68 x 22.8 in |
| Operating width | 19.7 in |
| Operating weight | 236 lbs | 107 kg |
| Current / Voltage | 21.50 A / 51V |
| Compacted area | 810 m2/h 6,975 ft 2/h |
| Forward speed | up to 1.5 fps/ 27m/min |
| Gradeability | 46.6 % |
| Charge time / Run Time | 80mm / 60mm |
| Vibration frequency | 98 Hz |
| Max. centrifugal force | 4,046 lbs, 18,000 kN |
| Battery BP1000 | Li-Ion, 51V. 1,008 Wh |
| Battery weight | 20.7 lbs / 9.4 kg |
| Charge current max | 32 A |
| Discharge current max | 160 A |
| Charge current max | 10.5 A |
| Hand-arm vibrations | 98 Hz |
| Water Tank | 2.75 US gal |
