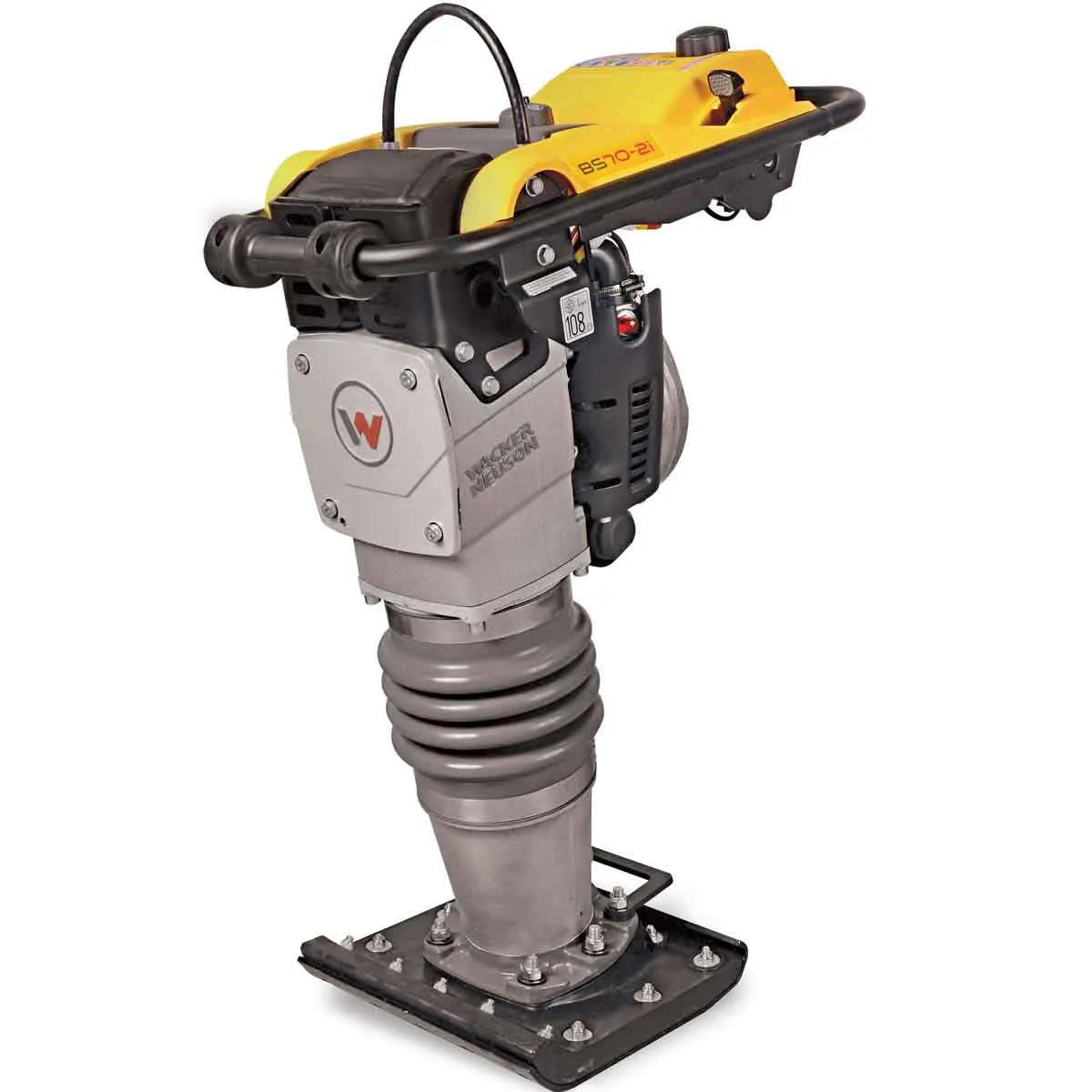

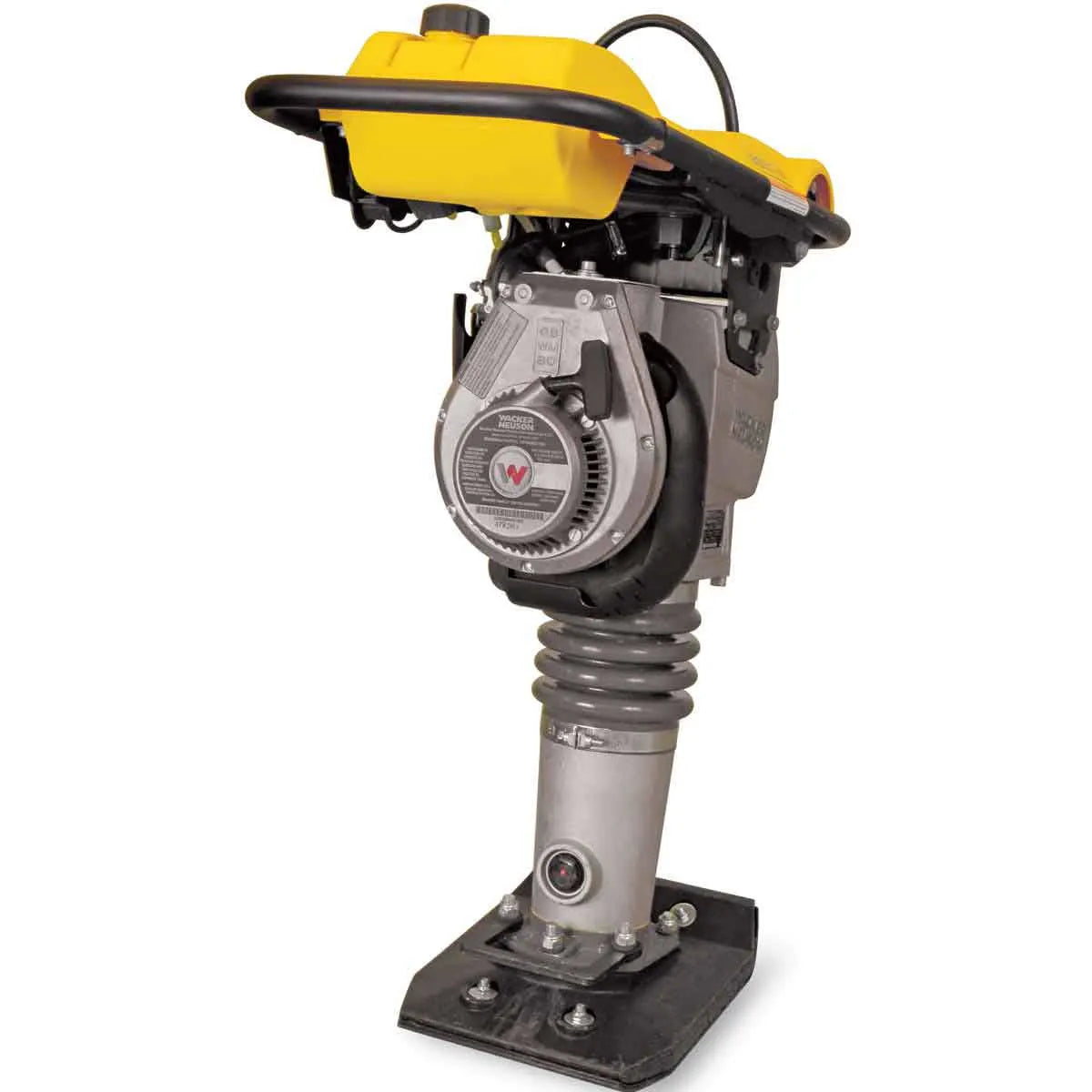

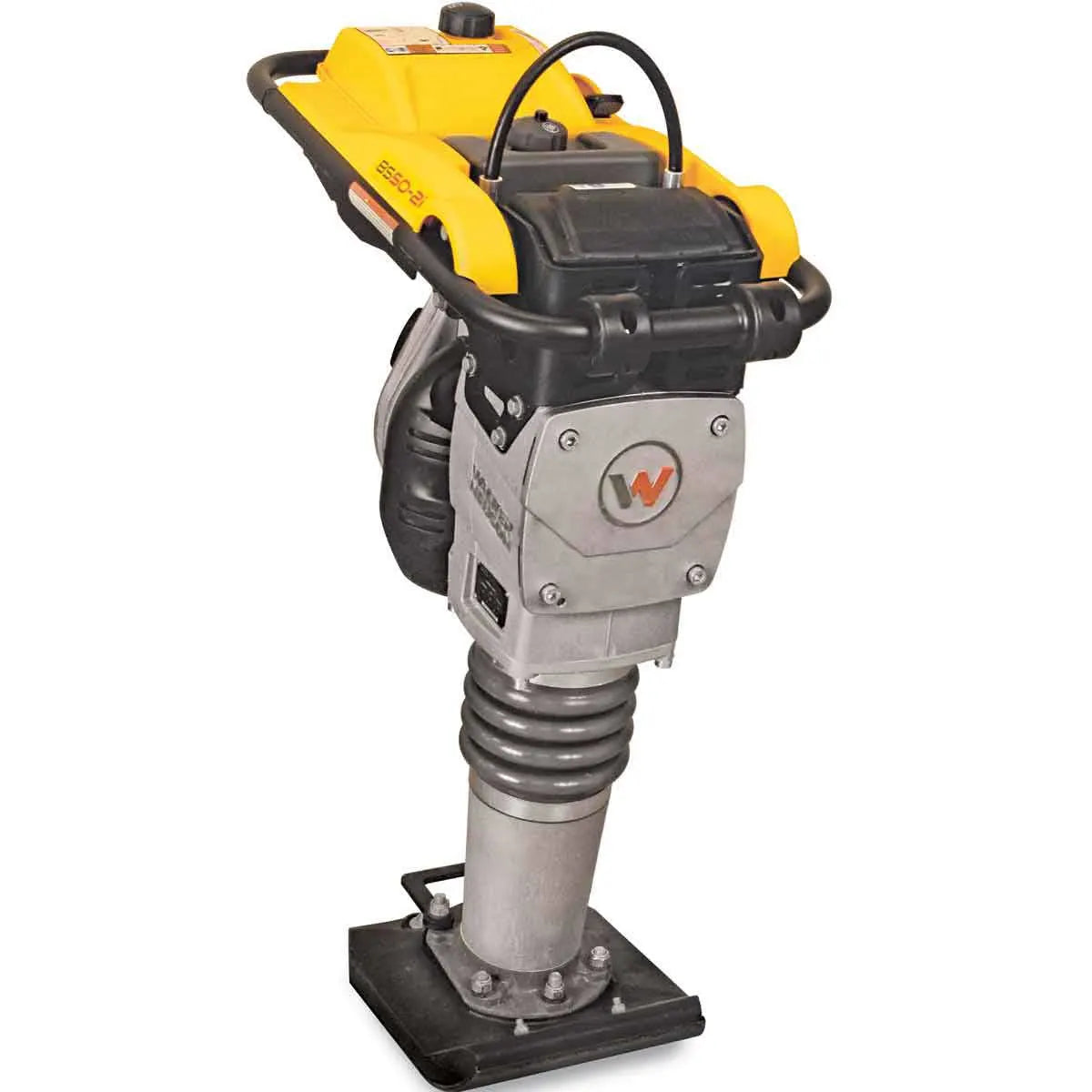

Wacker Neuson Oil-Injected Vibratory Rammers

Wacker Neuson Oil-Injected Vibratory Rammers

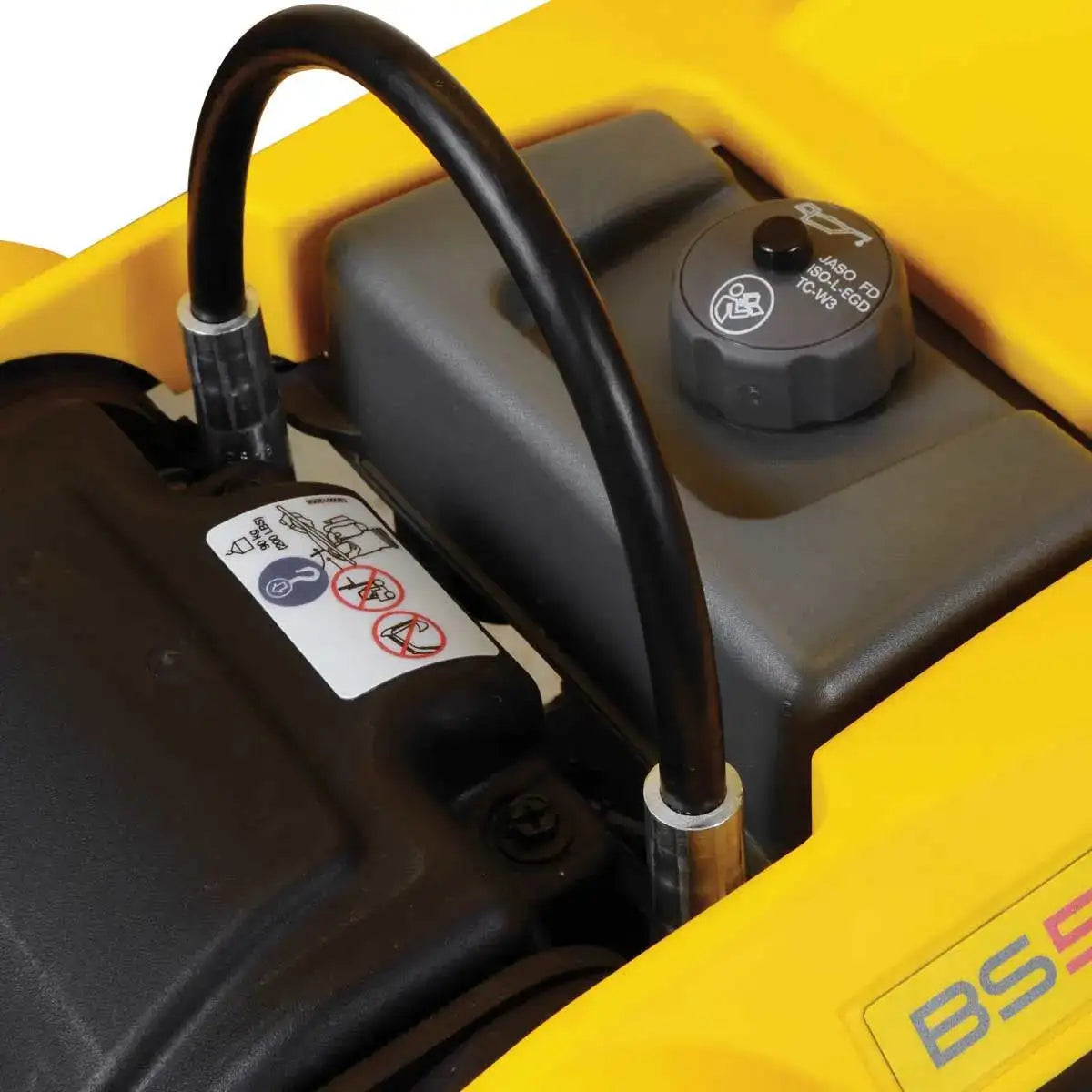

Wacker's exclusive WM 80 engine features a unique patented oil-injection system that provides reliable performance by eliminating spark plug fouling and carbon buildup. The no-mix system is an added convenience for operators. Plus an amazing fuel to oil ratio of 120:1 allows for longer and cleaner running times up to 65 hours on a single tank of oil. A low oil shutdown switch prevents running the rammer without oil for trouble-free operation.

Features

• Powered by Wacker's exclusive WM 80 engine, the only 2-cycle engine specifically designed and built for vibratory rammers and meets EPA and European air emission standards
• Patent-pending vented carburetor evacuates air from the fuel line for easy starting
• An integrated fuel valve and gas lever also provide for simple operation and easy starting by eliminating air in the fuel line
• A unique three-stage air filtration system provides a virtually dust-free engine for longer life and improved durability
• A filter minder tells the operator when the air filter needs to be changed
• Guide handle offers a highly engineered, built-in shock mount system to reduce HAV (hand-arm vibration) and improve operator comfort
• Automatic shutoff feature will shut down the unit if left idling for an extended period of time, reducing emissions and carbon build-up

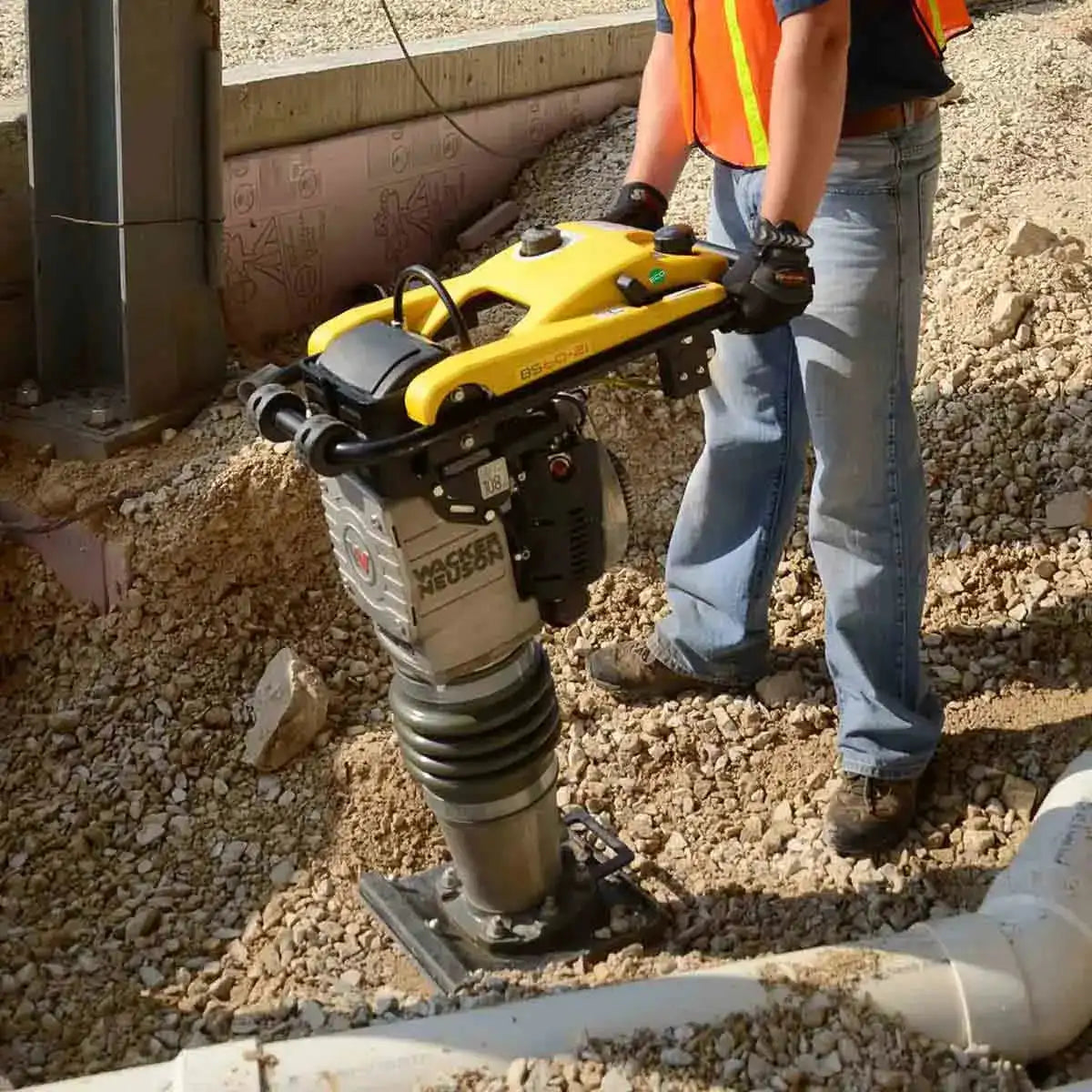

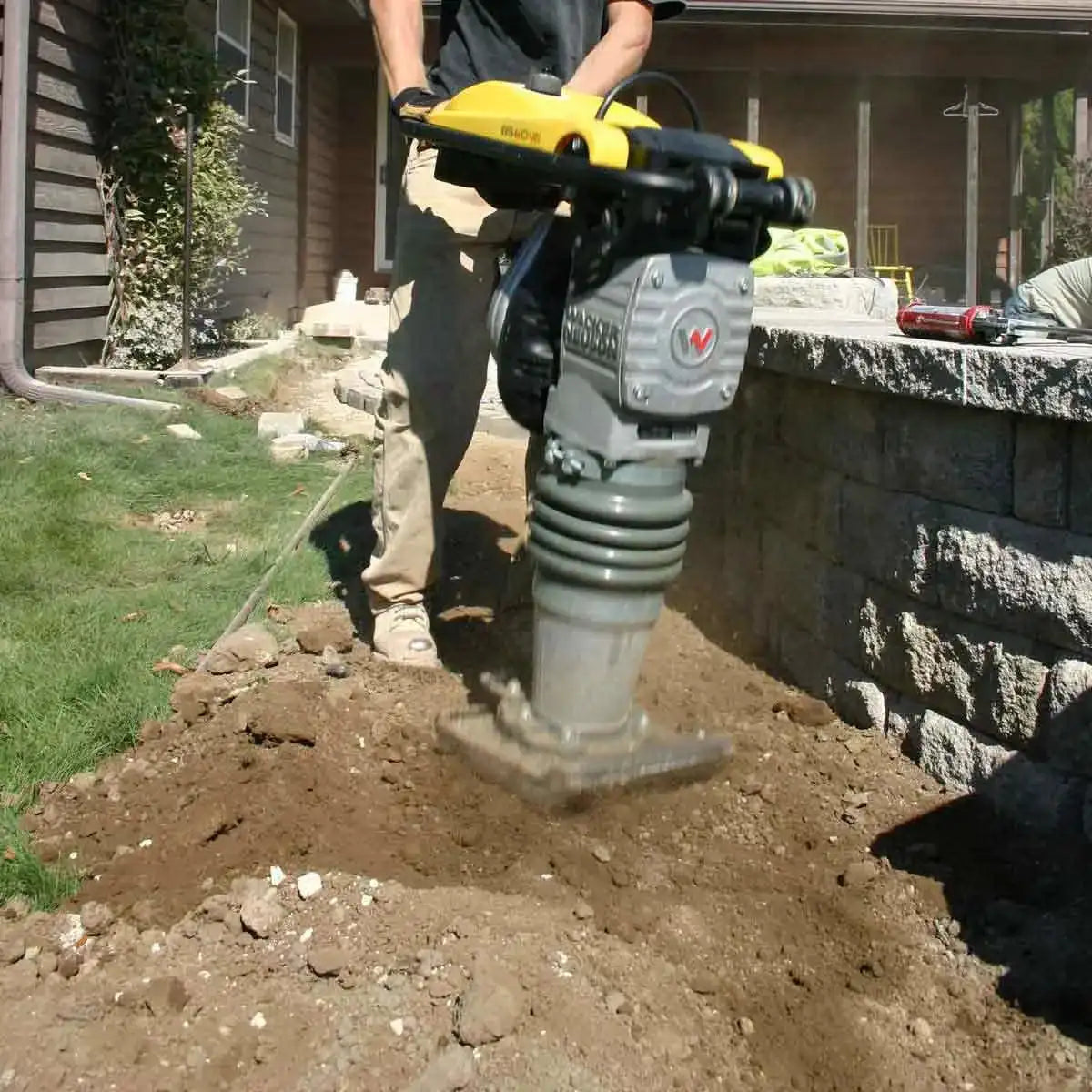

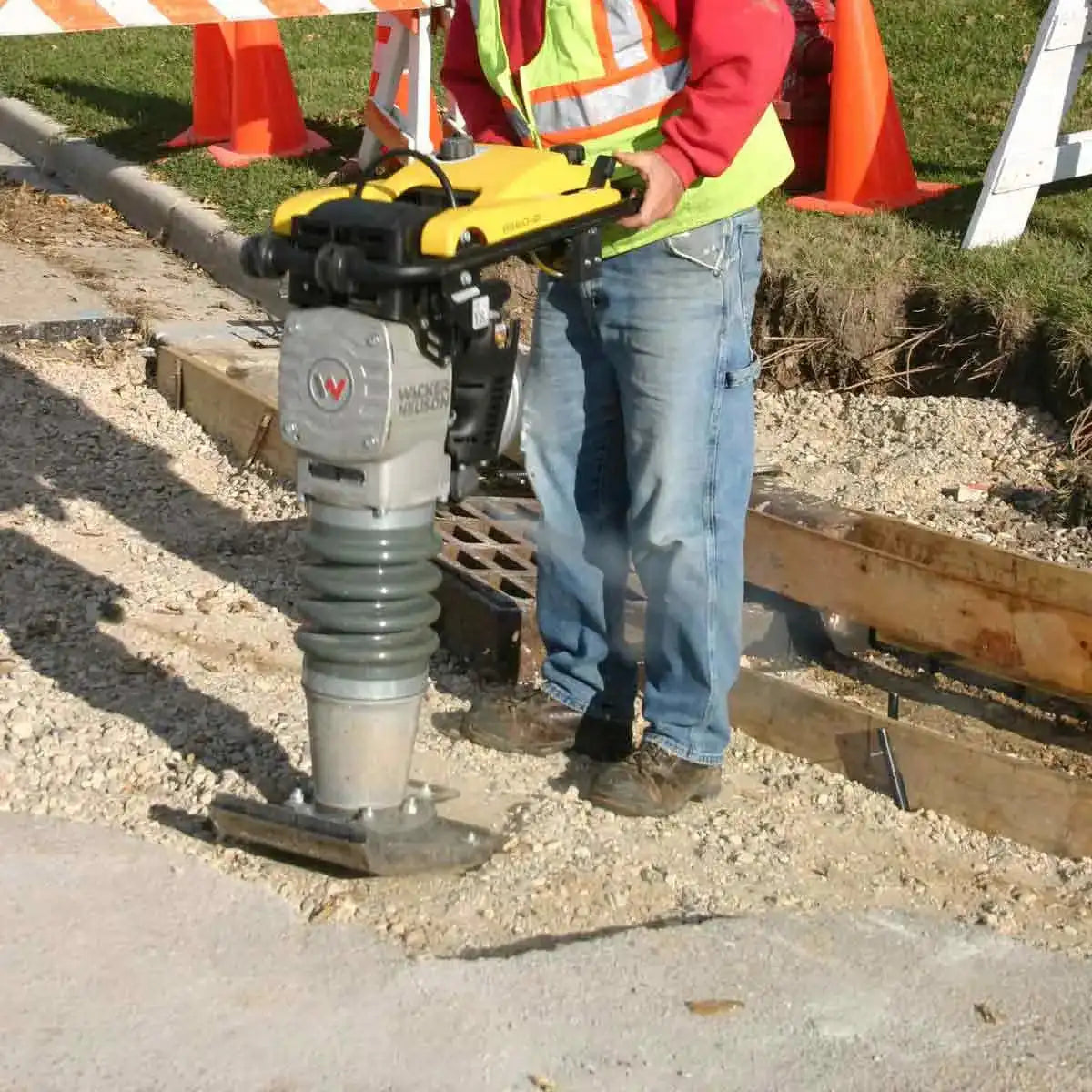

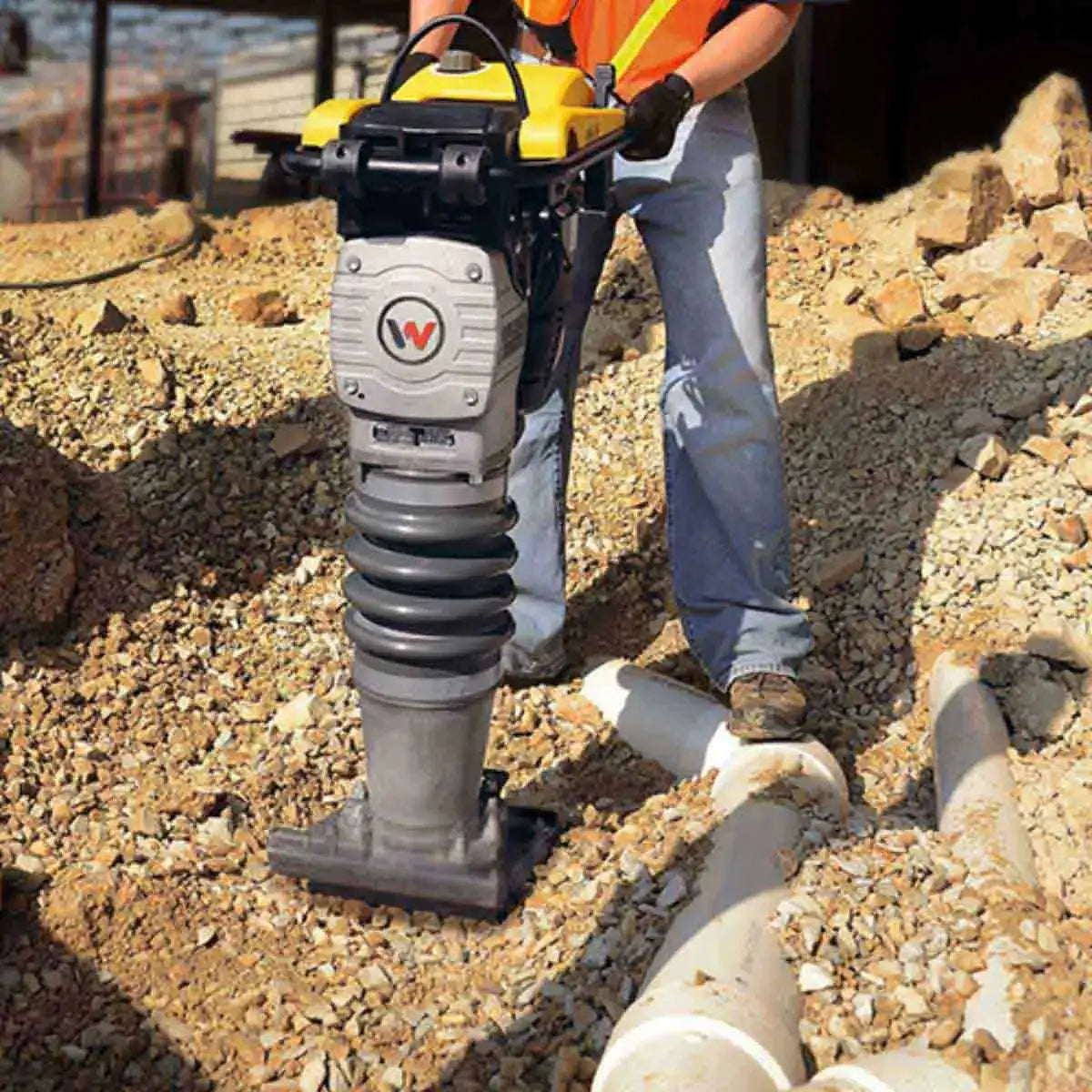

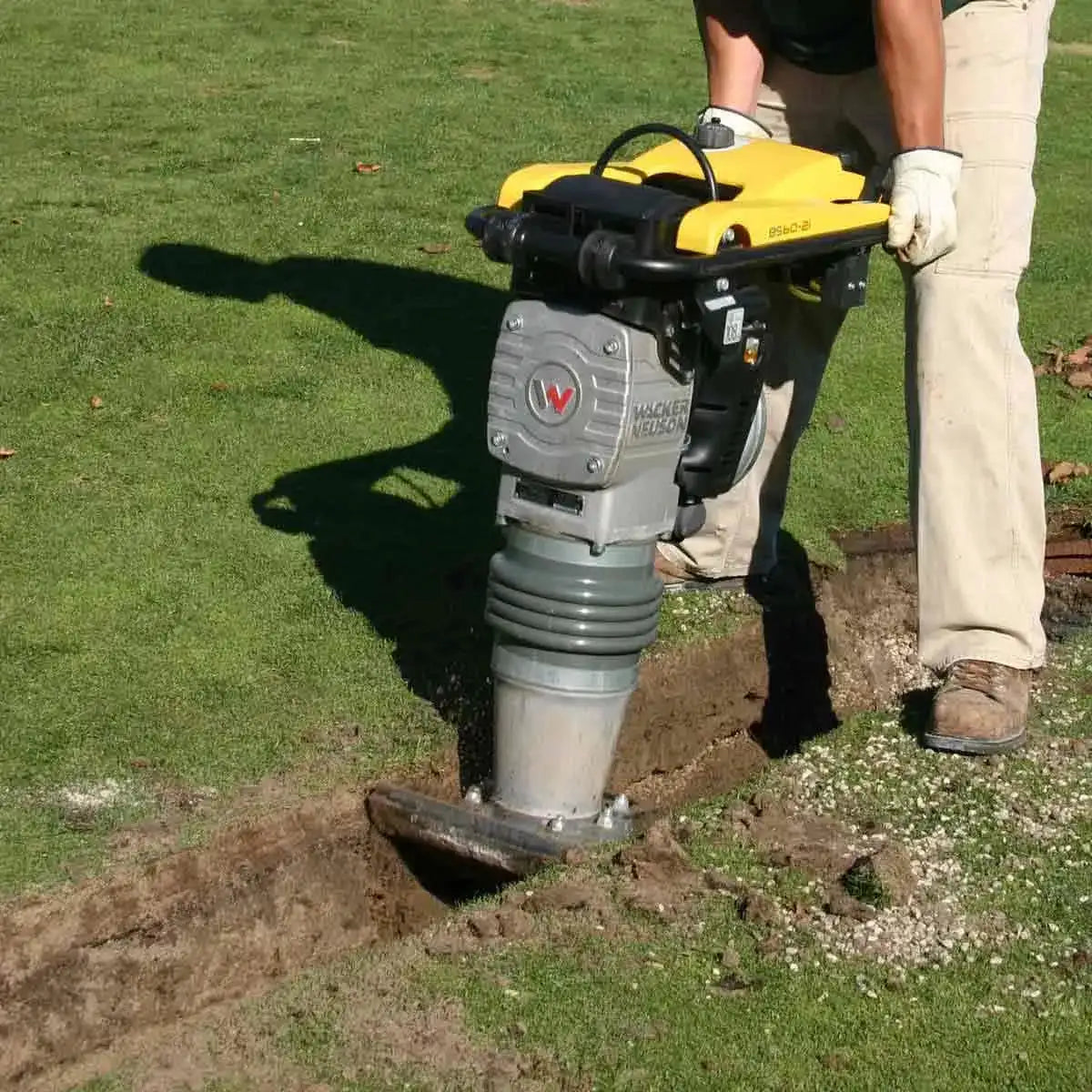

• Rugged rammers designed for the compaction of cohesive, mixed and granular soils in confined areas

Rammers Designed for the Future

• Protecting the environment and the operator
• Advanced oil-injection system offer these innovative advantages, plus the performance of two-cycle technology
• 65 hours run time on a tank of oil
• Lean 120:1 fuel/oil ratio-eliminates smoke
• Low engine oil shutoff
• No spark plug fouling and carbon buildup
• Lower poisonous carbon monoxide and nitrogen oxide emissions
• Fast engine warm up
• Long shoe stroke
• More blows per minute
• Faster travel, more productive
• Lighter weight, more maneuverable
• Lower center of gravity
• No mechanical governor
• No used oil to dispose of into the environment

Wacker Neuson Oil-Injected Vibratory Rammers Specifications

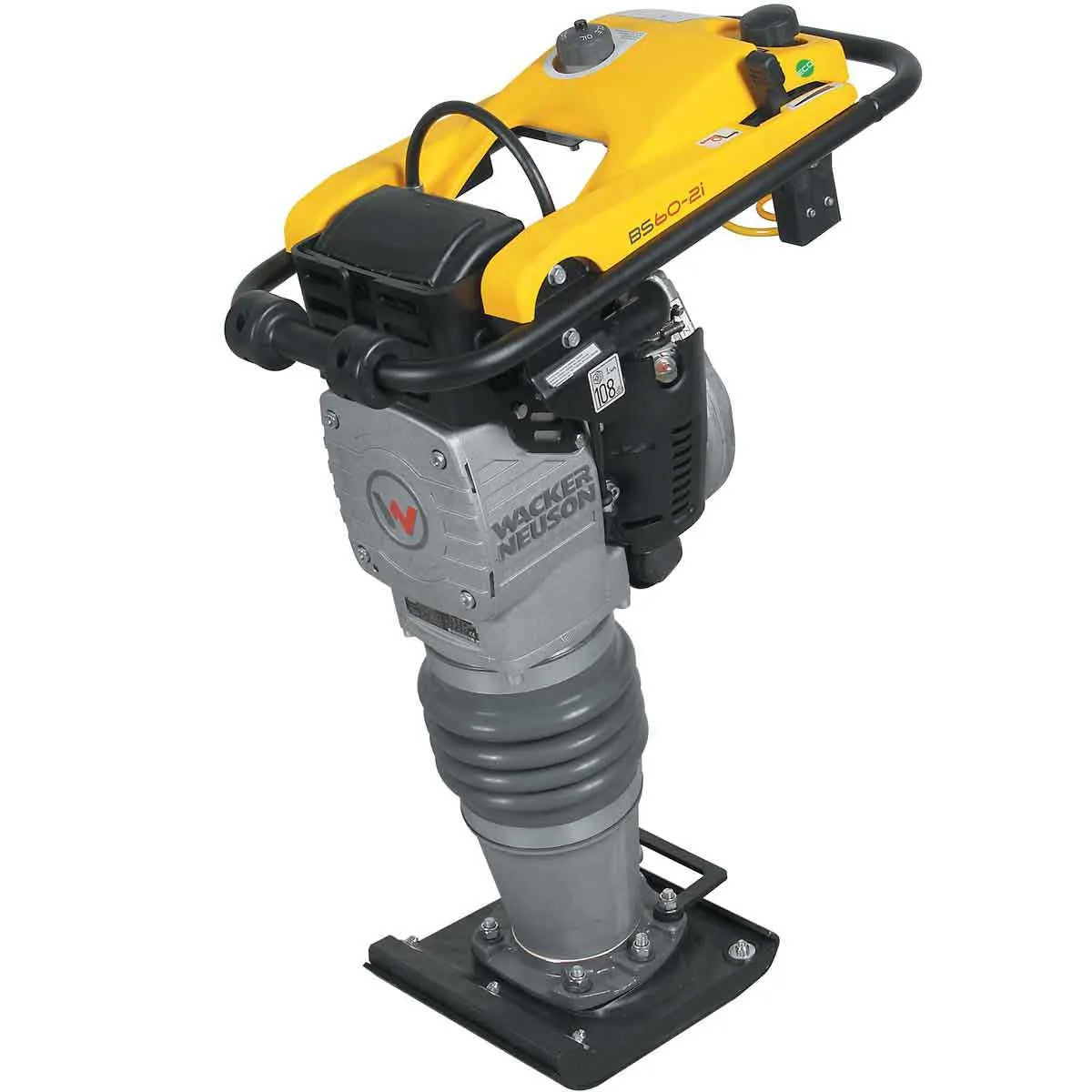

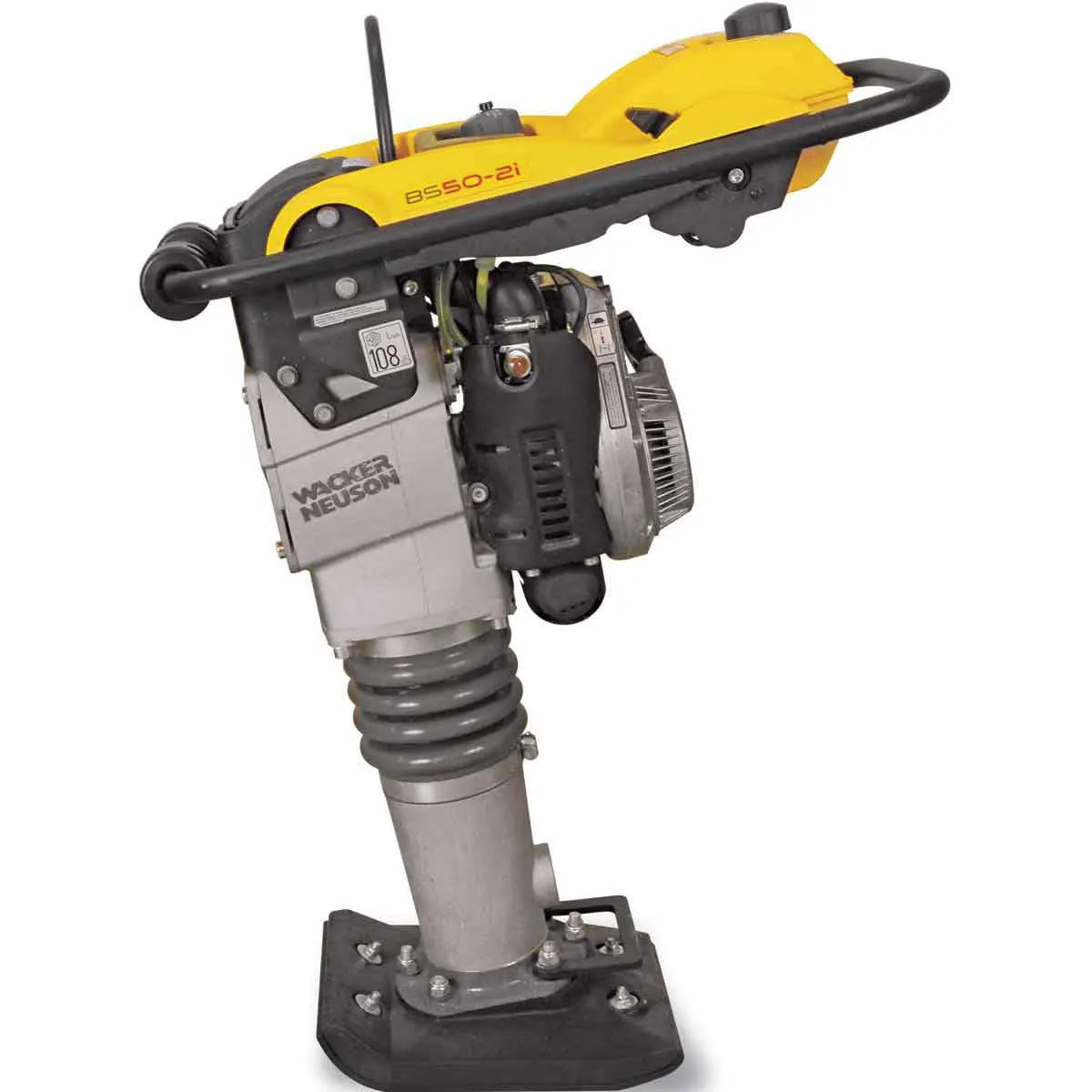

Model	BS 50-2i	BS 60-2i
Operating Weight	131 lbs	145 lbs
Overall length	26.5 in.	26.5 in.
Compaction Depth	20 in.	23 in.
Shoe Size WxL	11 in. x 13 in.	11 in. x 13 in.
Stoke	2.8"	2.8"
Travel Speed	59 ft./min	57 ft./min
Blows Per Minute	Up to 700	Up to 700
Engine Power	4 hp (3kw)	4 hp (3kw)
Max Engine RPM	4,400	4,400
Start Method	Recoil	Recoil
Max. Area Capacity (ft.)²/hr	3,245	3,135
