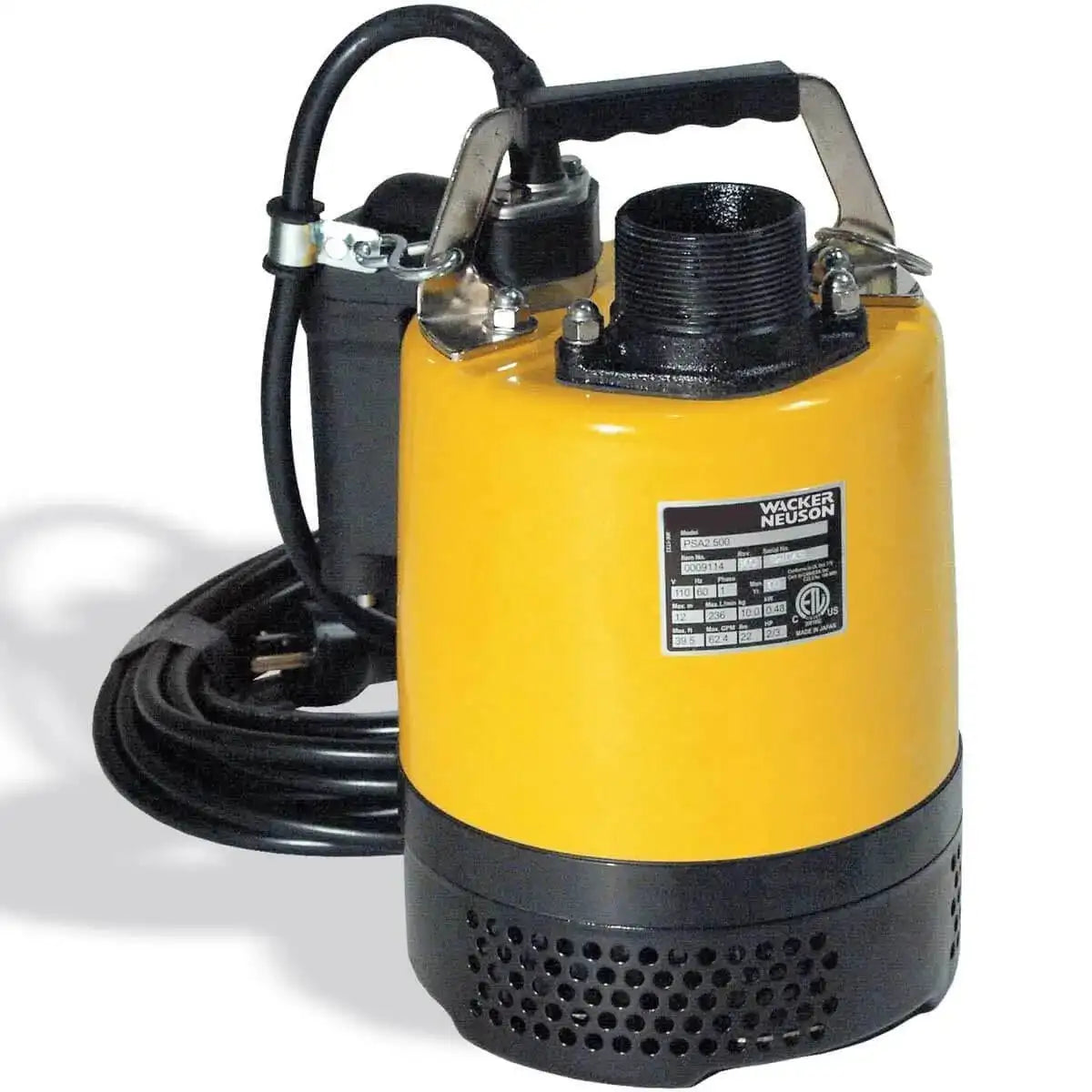

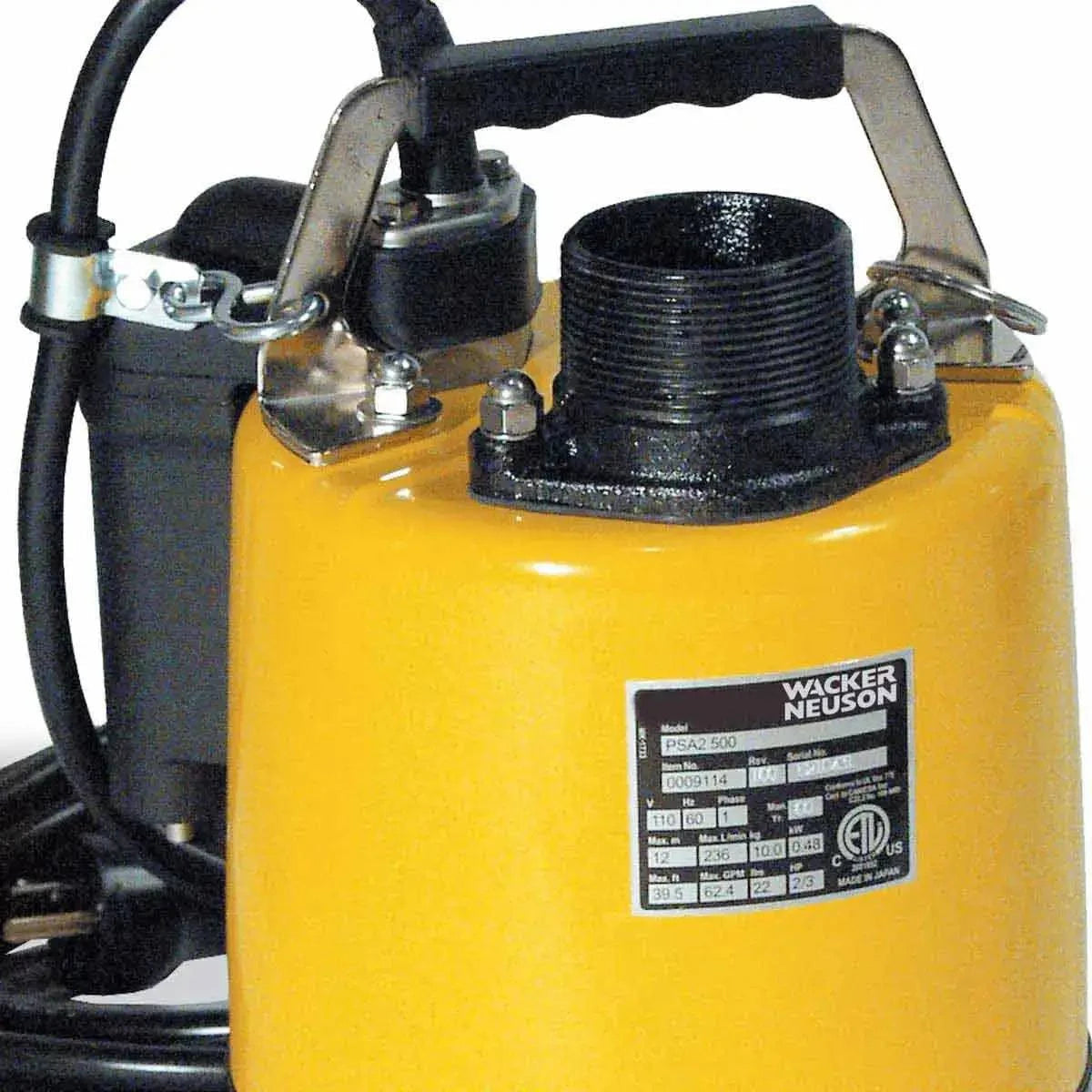

Wacker Neuson PSA2500 2" Submersible Pump

Wacker Neuson PSA2500 2" Submersible Pump

Lightweight, portable, single phase submersible pumps are designed to handle water and solids.
Built for the demands of construction, mining, municipality and farm applications.

Features

• Lightweight, compact design for easy transport and positioning of pump
• Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs
• Heavy-duty power cord with strain relief resists pullout and abrasion reducing costly repairs
• Insulation on all conductors of the power cable are protected by a water block system to prevent wicking of water into the motor
• Silicon carbide faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrication, cooling and overall motor protection
• Preliminary v-ring or lip seal (depending on model) shields the mechanical seal from abrasive wear due to suspended debris in pumping fluid
• Semi-vortex impeller allows for optimum wear resistance
• The necessary water level to operate the pump is 4-1/2" from the bottom of the pump

Technical Features

Wacker PSA2500 Pump Specifications
Discharge diameter	2 in
Length x width x height	8.7 x 7.3 x 12 in
Operating weight	22 lb - 10 kg
Max. head	39.5 ft
Max. discharge	62.4 US gpm
Max. pressure	17 psi
Solid size capacity	0.2 in
Motor type	110V - Single phase/60 Hz
Current (full load/start @ 110V)	6.1/12.5 A
Speed	3,270 rpm
Max. power output	2/3 hp - 0.48 kW
Cable length	32 ft
Cable size	16 AWG
Impeller material	Urethane rubber
Impeller type	Semi-vortex
