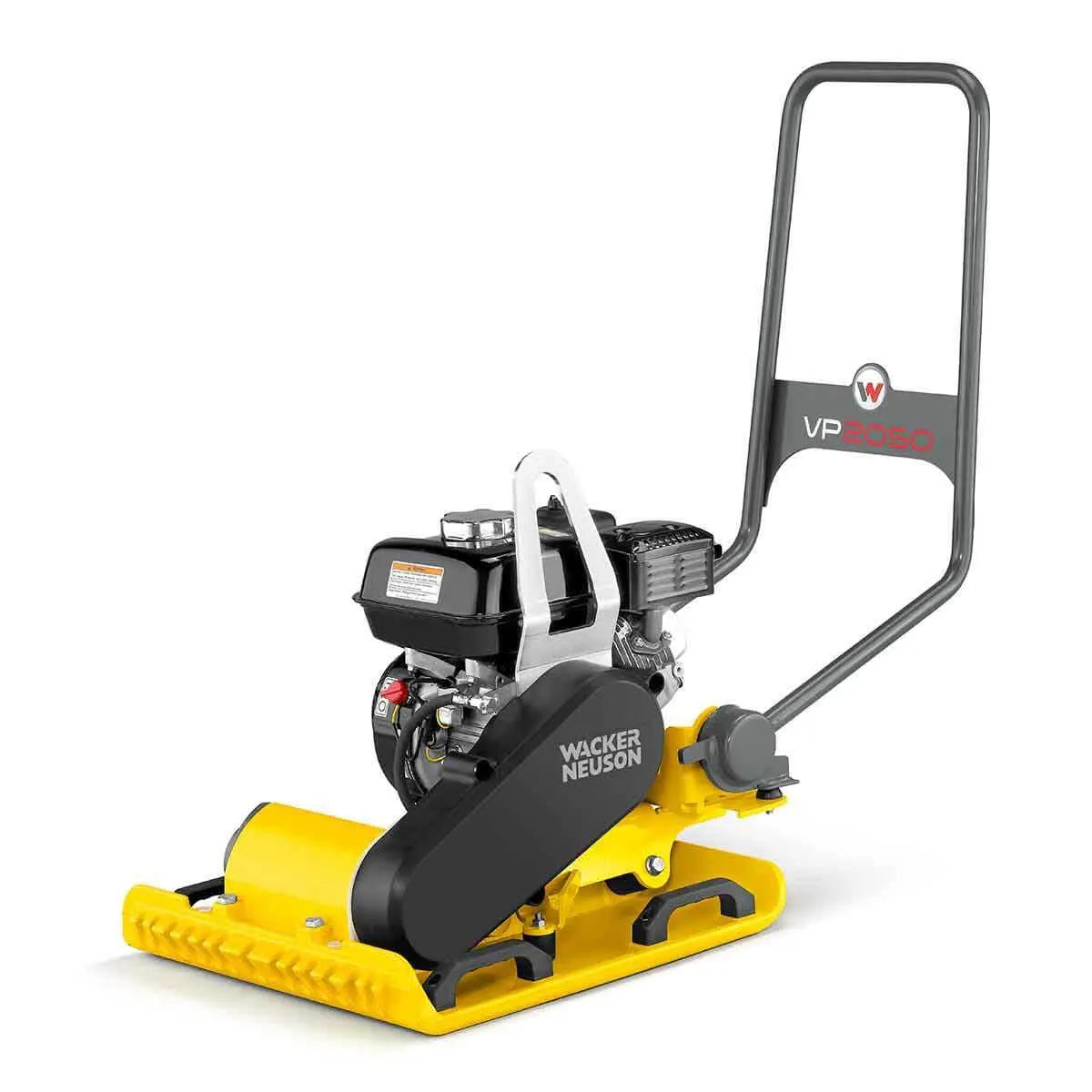

Wacker Neuson VP2050A Plate Single Direction Plate Compactor

Wacker Neuson VP2050A 23" x 19.5" Vibratory Soil Plate

Features

• Designed for compaction in confined areas of granular soil in narrow trenches
• Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction

Compactor Plate Features

• Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
• Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service
• Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue
• Heavy-duty shock mounts on engine console dampen vibrations thereby reducing wear on the components
• Exciter bearing design requires minimal maintenance for improved productivity
• Single direction plate compactor gas powered
• Large solid lifting eye for safe lifting
• Handles on the base of the equipment allow easy transportation

Wacker VP2050A Compactor Specifications
Length x width x height (handle in working position)	40 x 19.5 x 35 in
Lowest Working Height	27 in
Size of base plate (L x W)	23 x 19.5 in
Operating weight	193 lbs | 83 kg
Compacted area (soil)	up to 7,880 ft2/h
Forward speed (soil)	up to 88 ft/min
Gradeability	up to 30%
Vibration frequency	97 Hz
Max. centrifugal force	3,375 lbs
Engine Type	Air-cooled, 4 cycle, single cylinder
Displacement	9.9 in 3
Max. power output (@3900 rpm)	5.5 hp
Rated power output (@3600 rpm)	5.0 hp
Fuel tank capacity	3.9 US qt
Run Time	2.1 hr
