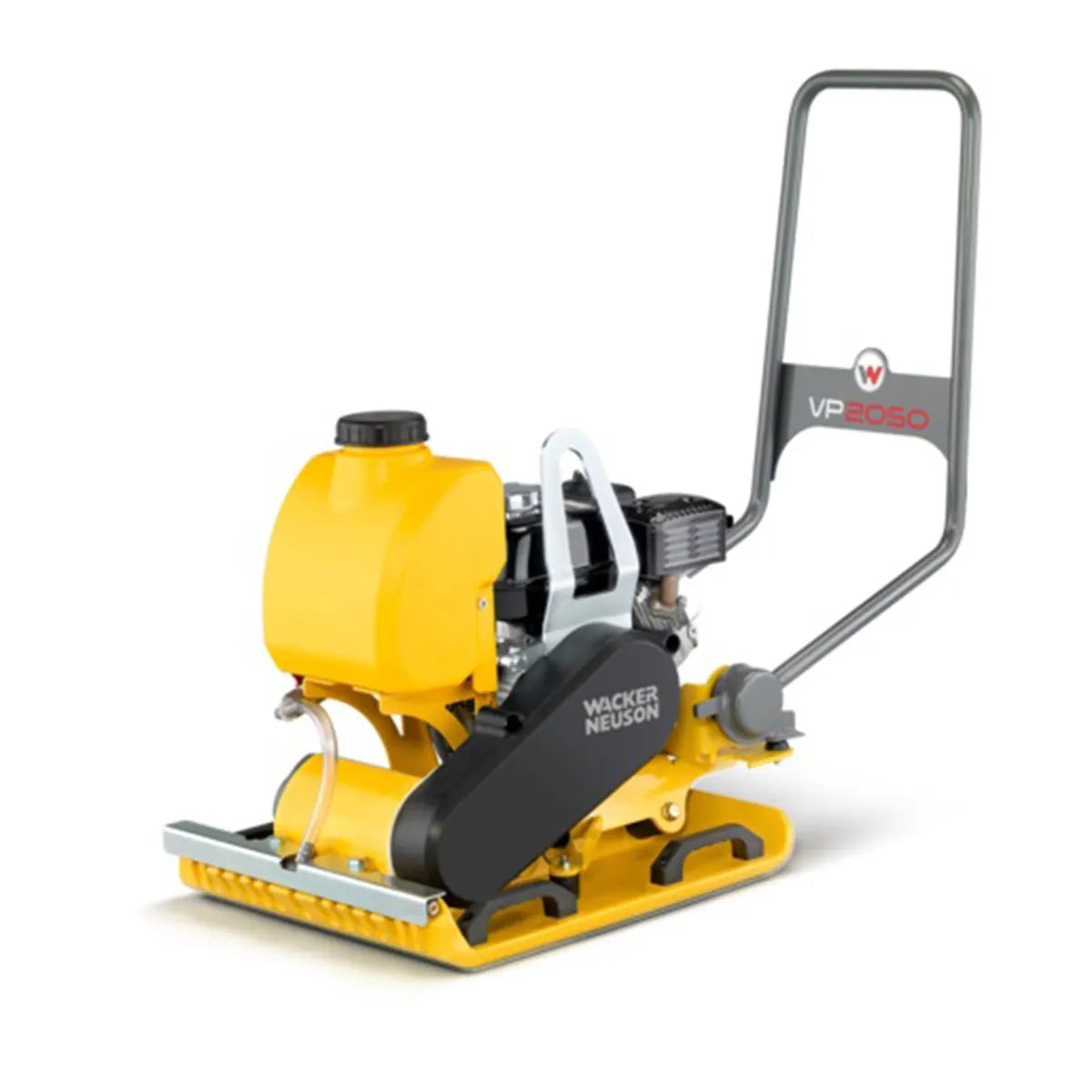

Wacker Neuson VP2050AW Vibratory Plate with Water Tank

$2,701²³ USD

Shipping calculated at checkout.

Brand: Wacker Neuson | SKU: VP2050AW | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Single-direction vibratory plate with water tank for soil and asphalt compaction
Designed for compaction in confined areas of granular soil in narrow trenches
Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction
Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service
A newly designed “low-vibration” guide handle dramatically improves operator comfort and minimizes operator fatigue
Heavy-duty shock mounts on the engine console dampen vibrations, thereby reducing wear on the components
Exciter bearing design requires minimal maintenance for improved productivity
Single-direction plate compactor gas-powered
Large solid lifting eye for safe lifting
Handles on the base of the equipment allow easy transportation

Wacker VP2050AW Compactor Specifications
Length x width x height (handle in working position)	40.7 x 15.2 x 37 in
Ground Clearance	23 in
Operating weight	193 lbs \| 83 kg
Area Capacity	8.073,0 ft2/h
Forward Running	1,4 fps
Gradeability	up to 36.4%
Vibration frequency	97 Hz
Max. centrifugal force	4.496 lbf
Engine Type	Honda Gas Air-cooled, 4-cycle, single cylinder
Displacement	9.9 in ³
Max. power output (@3900 rpm)	5.5 hp
Rated power output (@3600 rpm)	5.0 hp
Tank capacity	1,0 gal US
Nominal Engine speed	3.600 1/min
