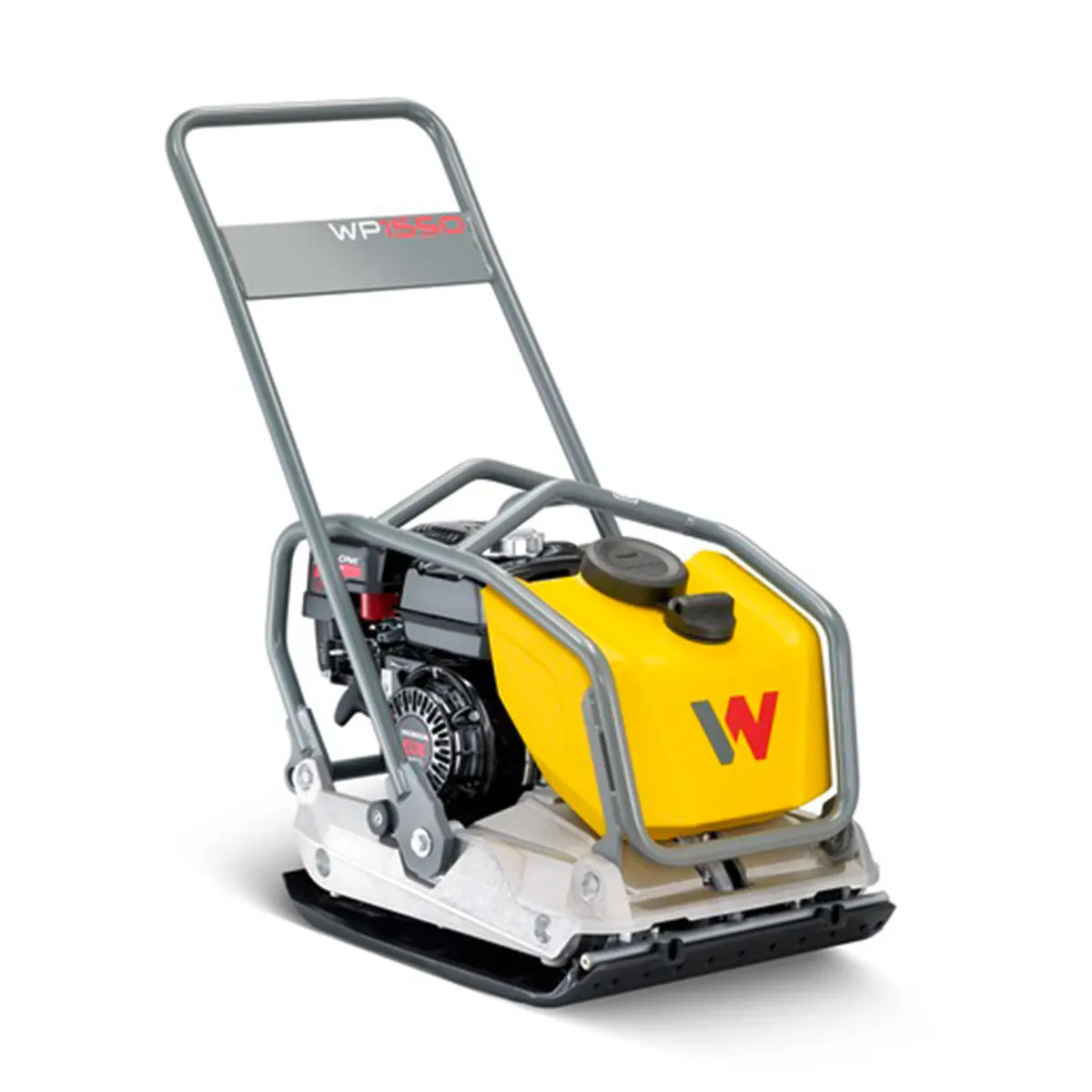

Wacker Neuson WP1550AW Single Direction Asphalt Compactor

Wacker Neuson WP1550AW Vibratory Compactor Plate

The Wacker premium plates series feature an upgraded base plate and a belt-driven exciter which provide increased maneuverability. Ideal for any compaction needs including asphalt compaction.

Features

• Water tank for asphalt included
• Premium plates feature a belt-driven exciter for increased durability
• Patented computer designed base plate has a tapered bottom and edges for high speed and excellent maneuverability
• Designed for the compaction of granular and mixed materials with some cohesive content in confined areas such as parking lots, highway and bridge construction next to structures, curbs and abutments
• Lightweight, high strength aluminum components including the engine console and belt guard have been combined for reduced weight and easy machine handling
• Straight, center-mounted guide handle offers superior maneuverability and can be lowered within inches of the surface to operate plate under obstacles and form work
• High inertia clutch with adjustable shims ensures smoother operation, longer belt life, and simplified belt adjustment
• Many lifting points and front lift cage offer easier loading and unloading for operator convenience
• Wheel kit sold separately


Wacker WP1550AW Specifications
Length x width x height (handle in working position)	34.5 x 19.5 x 38 in
Lowest working height	20 in
Size of base plate (L x W)	23 x 19.5 in
Operating weight	194 lbs | 88 kg
Water tank capacity	11 US qt
Compacted area	9,750 ft 2/h
Forward speed	up to 100 ft/min
Gradeability	30 %
Vibration frequency	100 Hz
Max. centrifugal force	3,375 lbs
Engine Type	Air-cooled, 4 cycle single cylinder
Displacement	9.9 in3
Max. power output (@3900 rpm)	5.5 hp
Rated power output (@3600 rpm)	5.0 hp
Fuel tank capacity	3.9 US qt
Run Time	2.1 hr
Water Tank	2.75 US gal
