Rapid Recess Tub to Curbless Shower Conversion Bracket Kits

Convert your conventional tub to a curbless shower with the bracket kit from Rapid Recess. Whether you want a point drain or a linear drain, Rapid Recess has a kit that will make your dream curbless shower a reality!

Features

Can only be used with 3/4" plywood subfloor
Made of 16 gauge galvanized steel
Made in the USA
Complies fully with ICC standards and codes and passed the Robinson Test C627 for floor assemblies
No framing ledger boards or cross-bracing needed

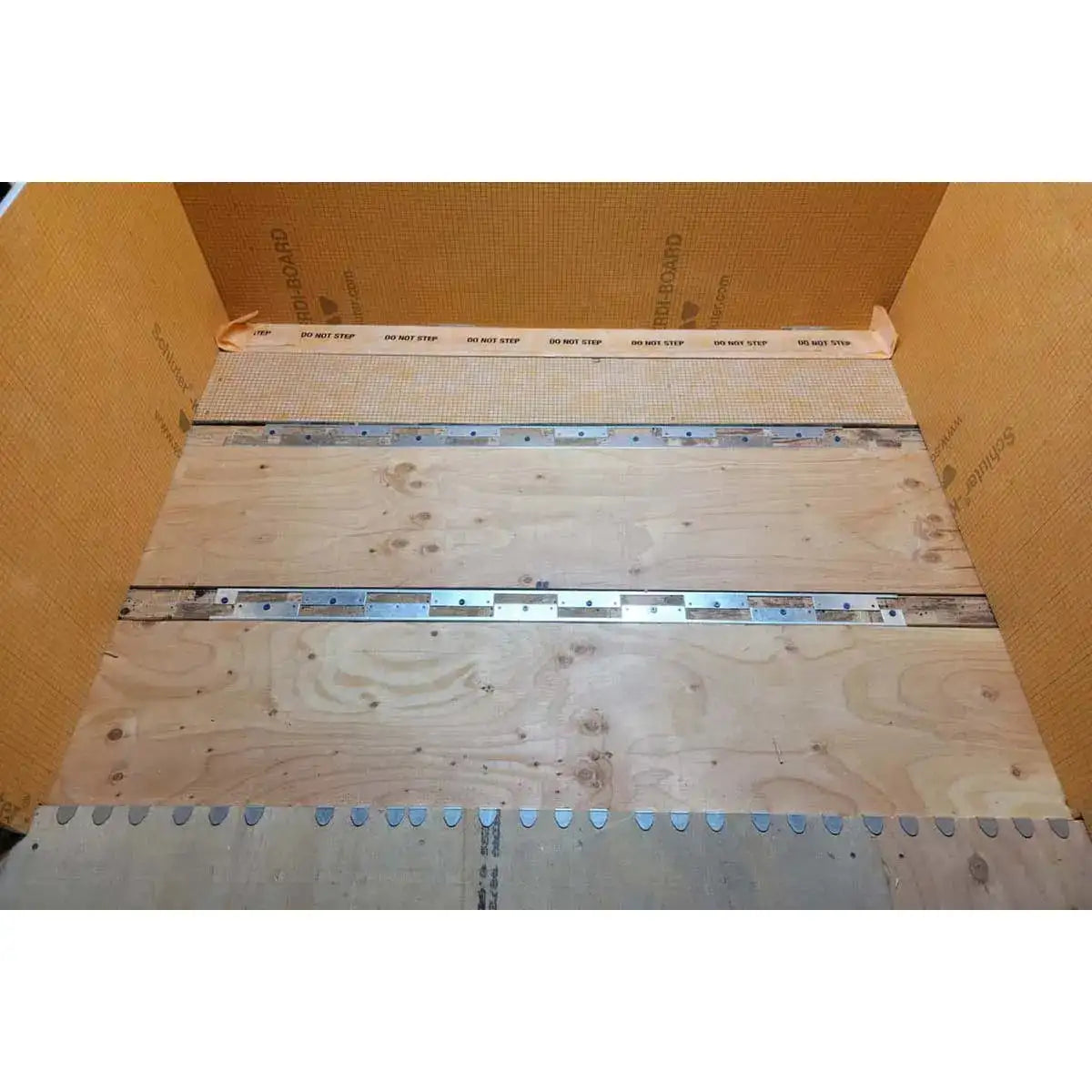

Floor height within the shower area is recessed 11/16 inch
Suitable for 25 square feet or less
Compatible with all wood construction conditions including standard lumber, I-joists and trusses with 3/4" plywood subfloor
Model RRT2CS is designed for Point Drains
Model RRT2CSLDK is designed for Linear Drains
Can be used in new construction or remodels by construction pros or DIYers

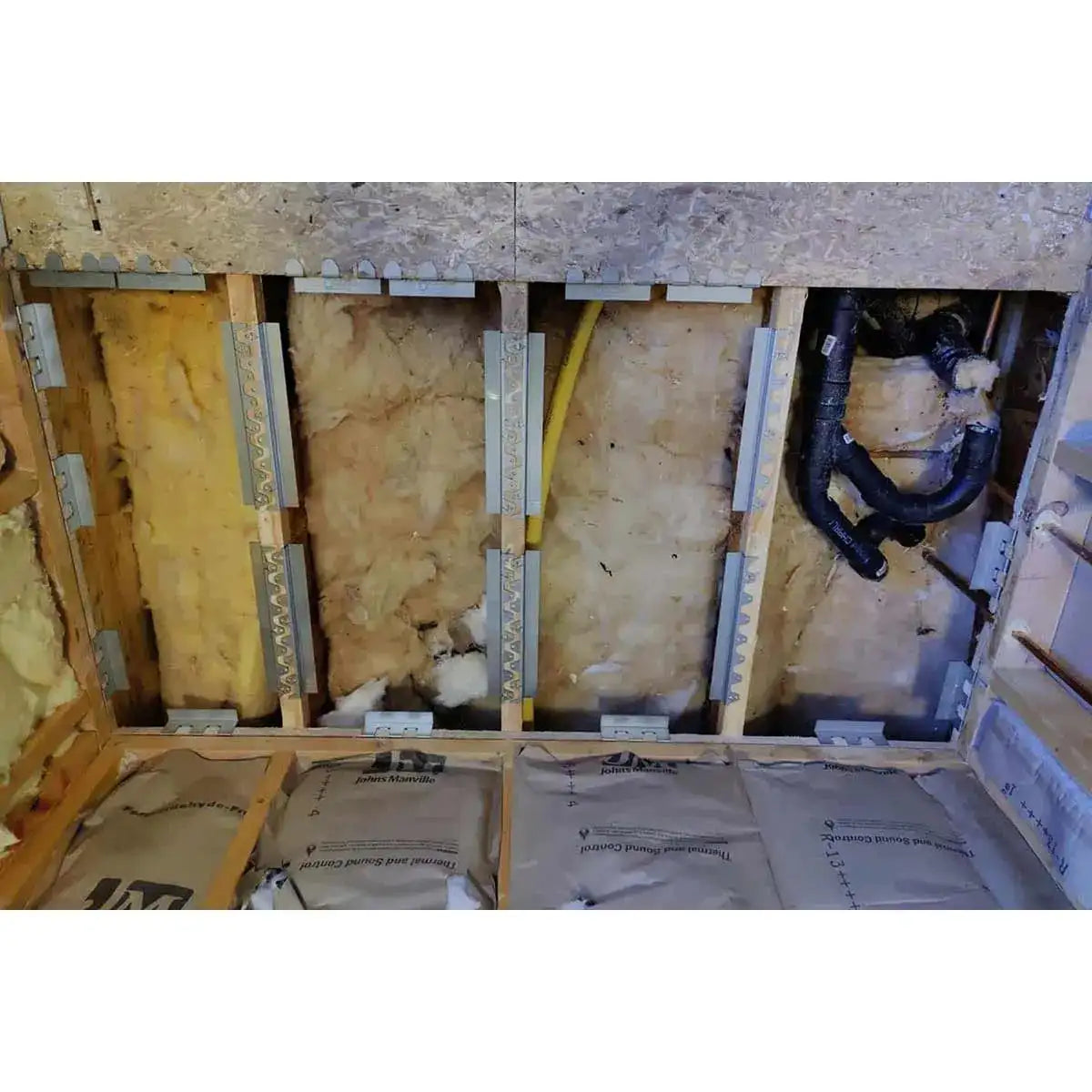

The metal brackets holds the plywood suspended between the top of the floor joist providing a simpler and faster solution for installers
Rapid Recess does not obstruct pipes or any other obstacles between the joists

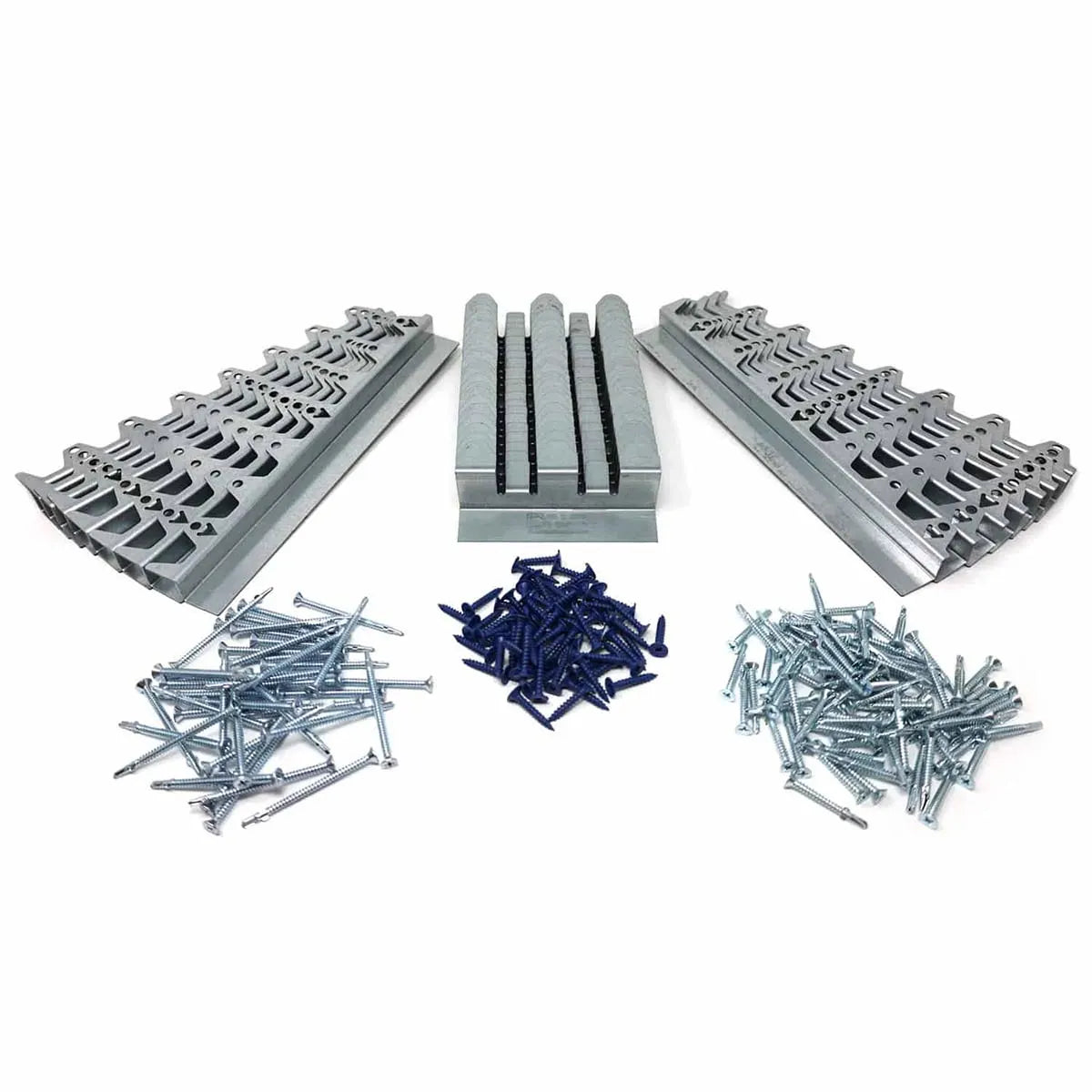

Point Drain | RRT2CS Kit Includes

(16) T brackets - 11/7/8" long main bracket fastened to the top of floor joist
(20) Z brackets - 5" long side bracket used for wall to recess and main floor to recess transition
(80) #10 1-5/8" wood to metal self drilling phillips screws with wings
(40) #10 2-3/4" wood to metal self drilling phillips screws with wings
(60) #10 1-1/4" flat head screw square drive

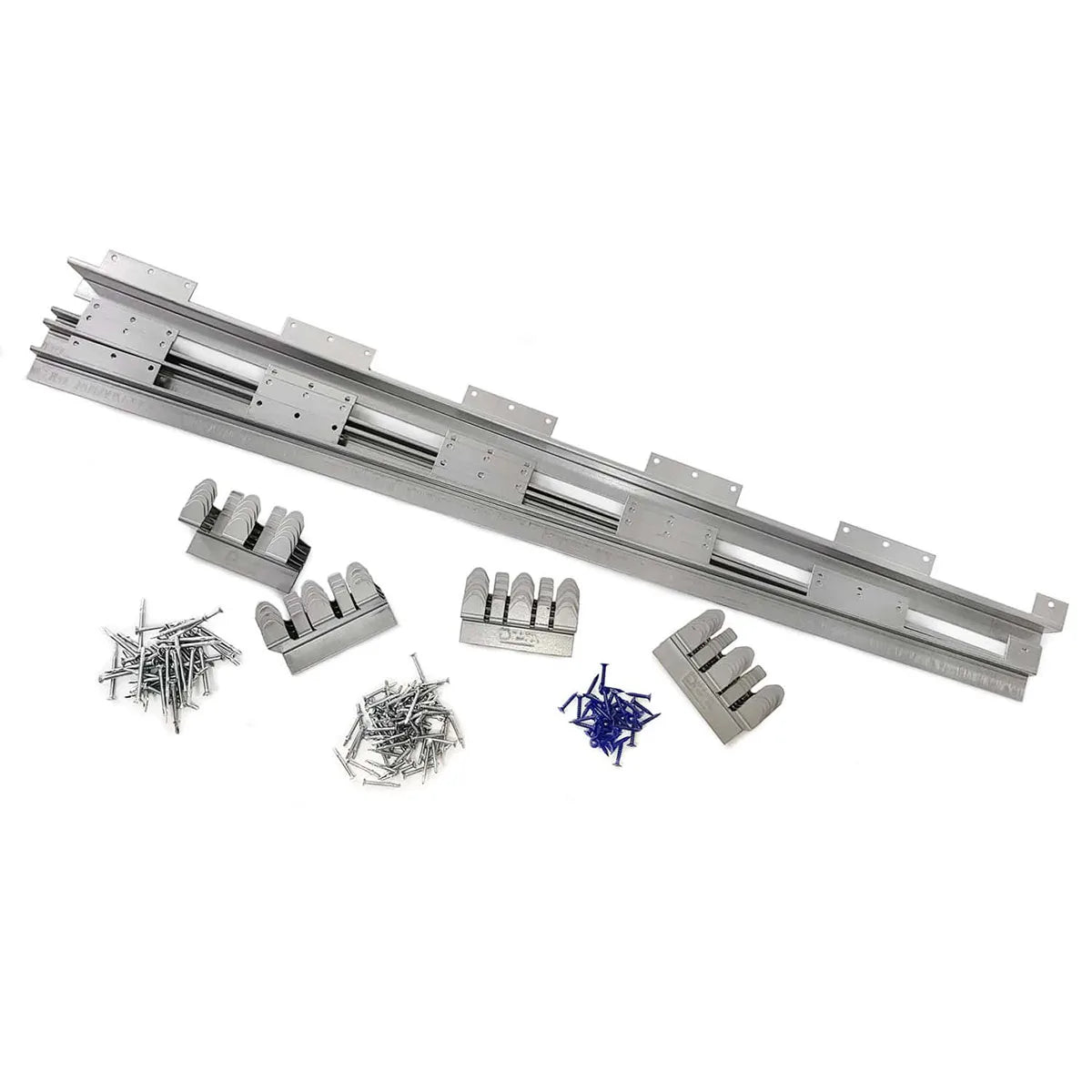

Linear Drain | RRT2CSLDK Kit Includes

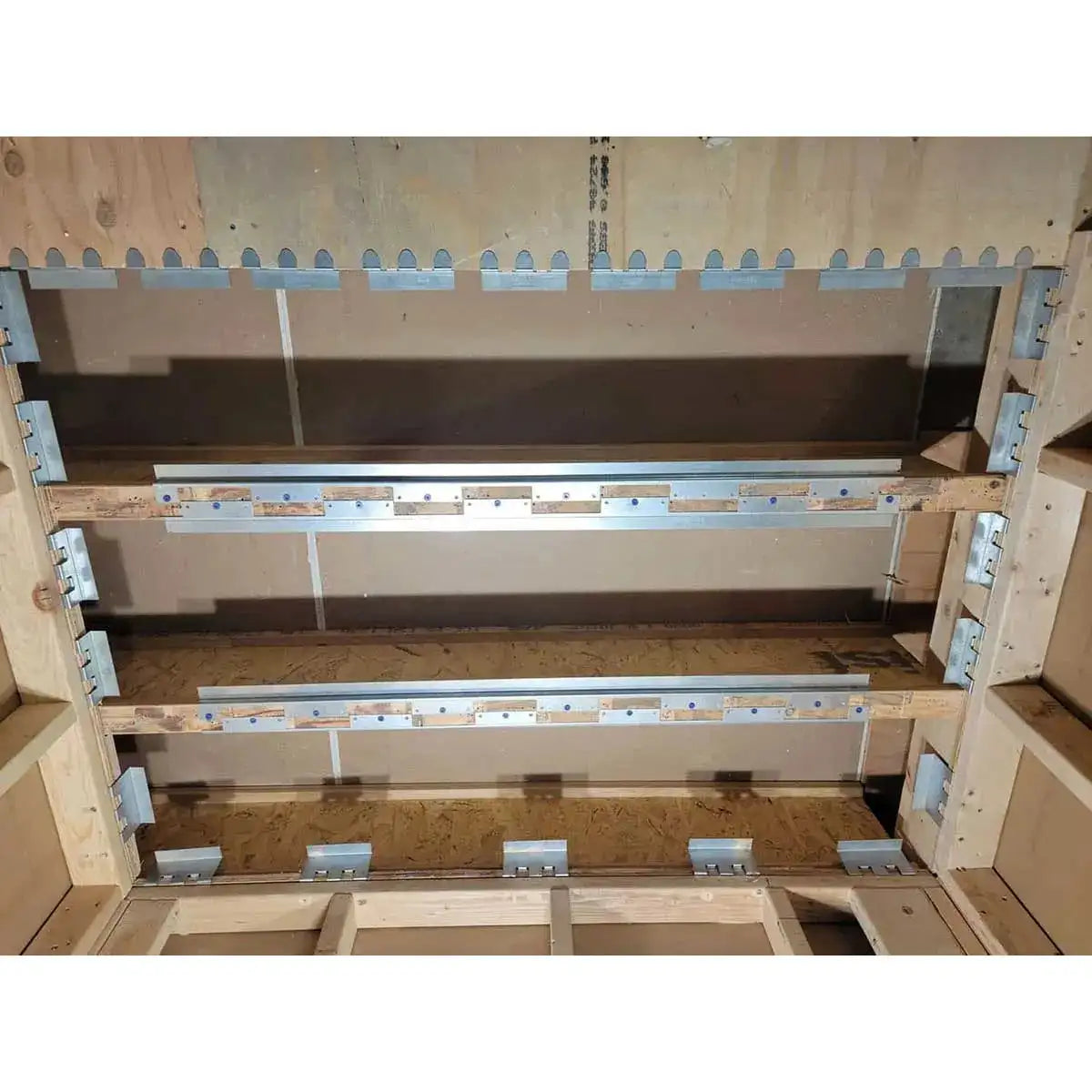

(3) M brackets - 47-3/8" long main bracket fastened to the top of floor joists
(18) Z brackets - 5" long side bracket used for wall to recess and main floor to recess transitions
(1) ML bracket - 47-3/8" long main bracket fastened to the top of last floor joist
(9) ZL brackets - 5” long side bracket used for wall to recess
(40) #10 2-3/4" wood to metal self-drilling screws with wings
(80) #10 1-5/8" wood to metal self-drilling screws with wings
(60) #10 1-1/4” Flat-head screws square drive
